Beckhoff BK9000 Ethernet TCP/IP Bus Coupler 24VDC

Description:

The Beckhoff BK9000 is an Ethernet TCP/IP bus coupler designed to connect Beckhoff KL series I/O terminals to standard industrial Ethernet networks, enabling direct integration of distributed I/O stations into TCP/IP-based automation and SCADA architectures. Operating on a 24V DC supply, the BK9000 provides two RJ45 Ethernet ports (X200, X201) supporting network topologies including line, tree, and star configurations without the need for an additional network switch.

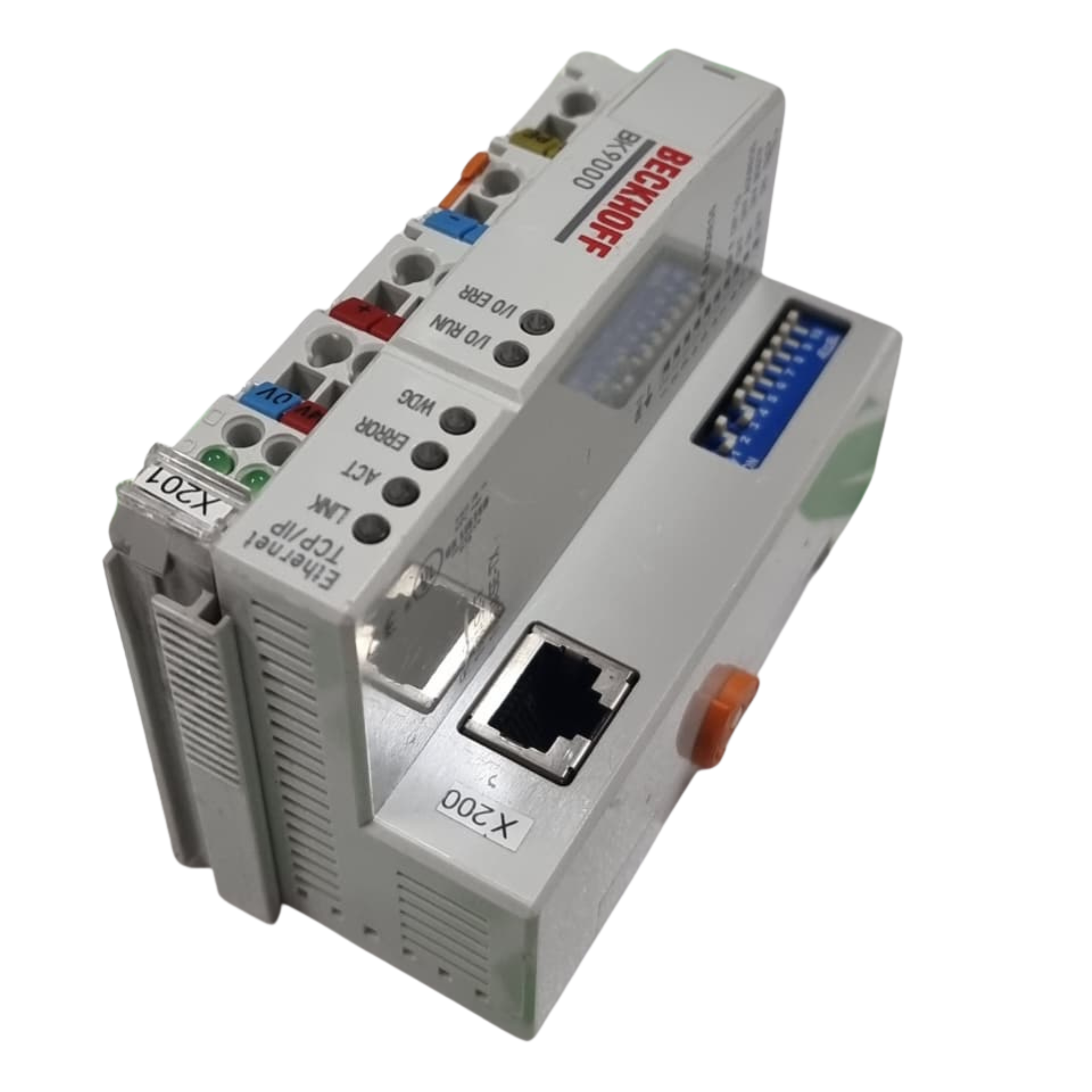

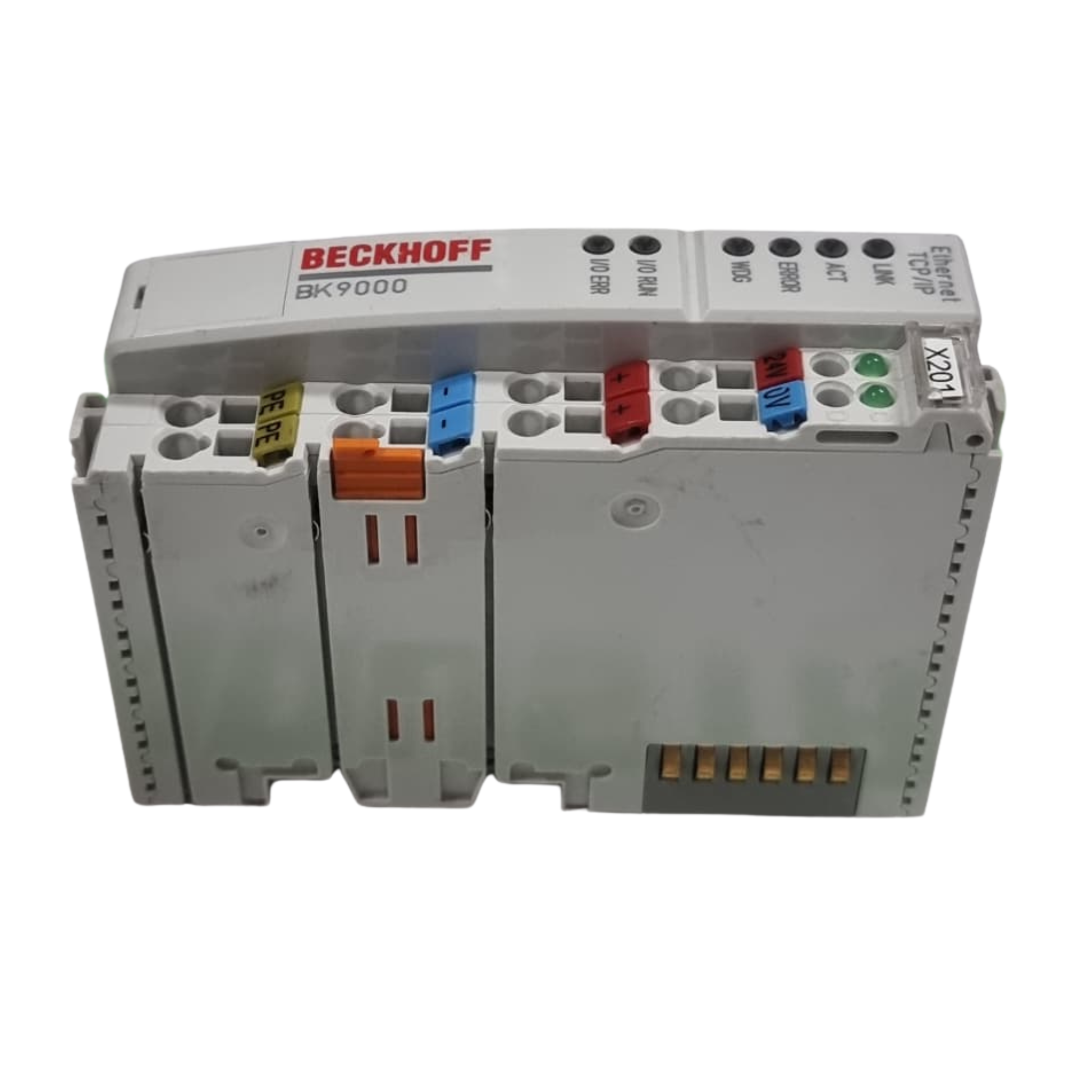

The front panel features six LED indicators covering link status, network activity, error, watchdog, and I/O bus run and error states, enabling rapid diagnostics during commissioning and operation. CE and cUL US Listed certified, the BK9000 is a widely deployed coupler in industrial automation systems across manufacturing, process control, and building management applications.

Industrio.ae holds verified surplus stock of Beckhoff automation modules, supporting procurement teams, systems integrators, and EPC contractors across the UAE with reliable access to industrial Ethernet I/O infrastructure components for both project builds and MRO replacement requirements.

Technical Specifications:

• Brand: Beckhoff
• Product Type: Ethernet TCP/IP Bus Coupler (KL series)
• Part Number: BK9000
• Industry Category: Industrial Automation / PLC I/O Systems / Industrial Ethernet / Bus Couplers
• Communication Protocol: Ethernet TCP/IP
• Voltage Supply: 24V DC
• Ethernet Ports: 2 x RJ45 (X200, X201)
• LED Indicators: LNK / ACT / ERROR / WDG / I/O RUN / I/O ERR

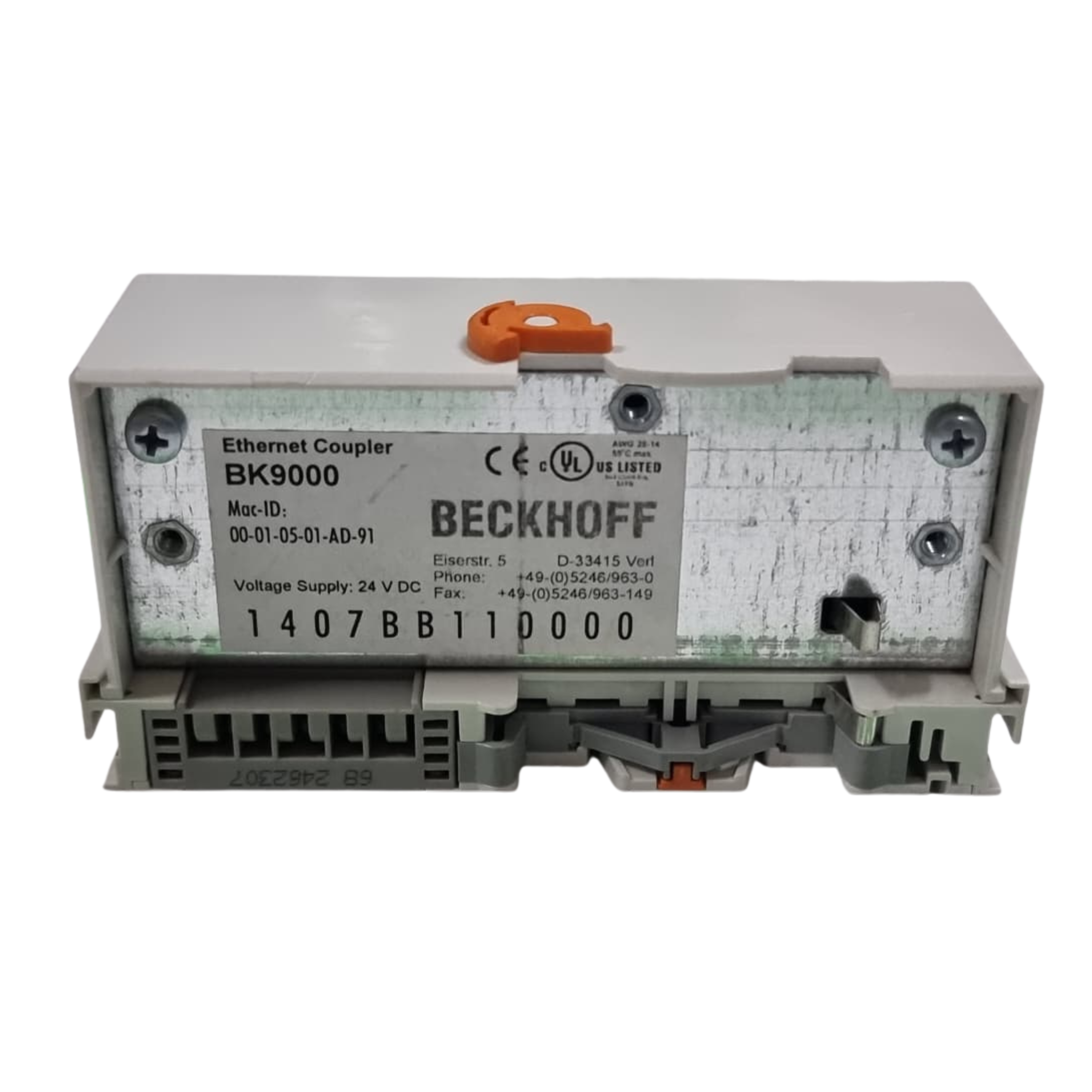

• MAC Address: 00-01-05-01-AD-91
• Serial Number: 1407BB110000
• Wire Range: AWG 28–14
• Max. Operating Temperature: 55°C
• Standards / Compliance: CE / cUL US Listed
• Mounting Type: 35mm DIN rail (KL series snap-on)
• Origin: Beckhoff — D-33415 Verl, Germany
• Other Confirmed Specs: Available upon request

Application:

The Beckhoff BK9000 Ethernet TCP/IP bus coupler is used to integrate KL series I/O terminal stations into industrial Ethernet control networks in manufacturing automation, process plant control, building management systems, and machine tool applications. It acts as the gateway between the K-Bus backplane of the terminal assembly and the plant-level Ethernet network, enabling PLC and SCADA systems to communicate directly with distributed I/O using standard TCP/IP protocols. Its dual RJ45 port design supports daisy-chain wiring of multiple coupler stations, reducing network infrastructure requirements in distributed panel layouts. This coupler is regularly procured as an MRO replacement or system expansion component by automation engineers and EPC contractors maintaining or extending Beckhoff-based I/O architectures across industrial facilities in the UAE and internationally

Automation procurement teams and systems integrators sourcing the Beckhoff BK9000 Ethernet TCP/IP bus coupler will find verified surplus stock available through Industrio.ae, a UAE-based industrial automation components supplier serving EPC contractors, MRO buyers, and panel builders across Dubai and the broader Gulf region. As a wholesale and surplus source for Beckhoff KL series bus couplers and industrial Ethernet I/O modules in the UAE, Industrio.ae supports both single-unit and project-volume procurement with competitive availability for critical automation infrastructure requirements.

Metafields:

• brand: Beckhoff
• part_number: BK9000
• product_type: Ethernet TCP/IP Bus Coupler
• industry_category: Industrial Automation / PLC I/O Systems / Industrial Ethernet / Bus Couplers
• communication_protocol: Ethernet TCP/IP
• voltage_supply: 24V DC
• ethernet_ports: 2 x RJ45 (X200, X201)
• led_indicators: LNK / ACT / ERROR / WDG / I/O RUN / I/O ERR
• mac_address: 00-01-05-01-AD-91
• serial_number: 1407BB110000
• wire_range: AWG 28–14
• max_operating_temperature: 55°C
• standards: CE / cUL US Listed
• mounting_type: 35mm DIN rail
• origin: Beckhoff — D-33415 Verl, Germany
• condition: Used / Surplus Stock
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used

Tested✅
