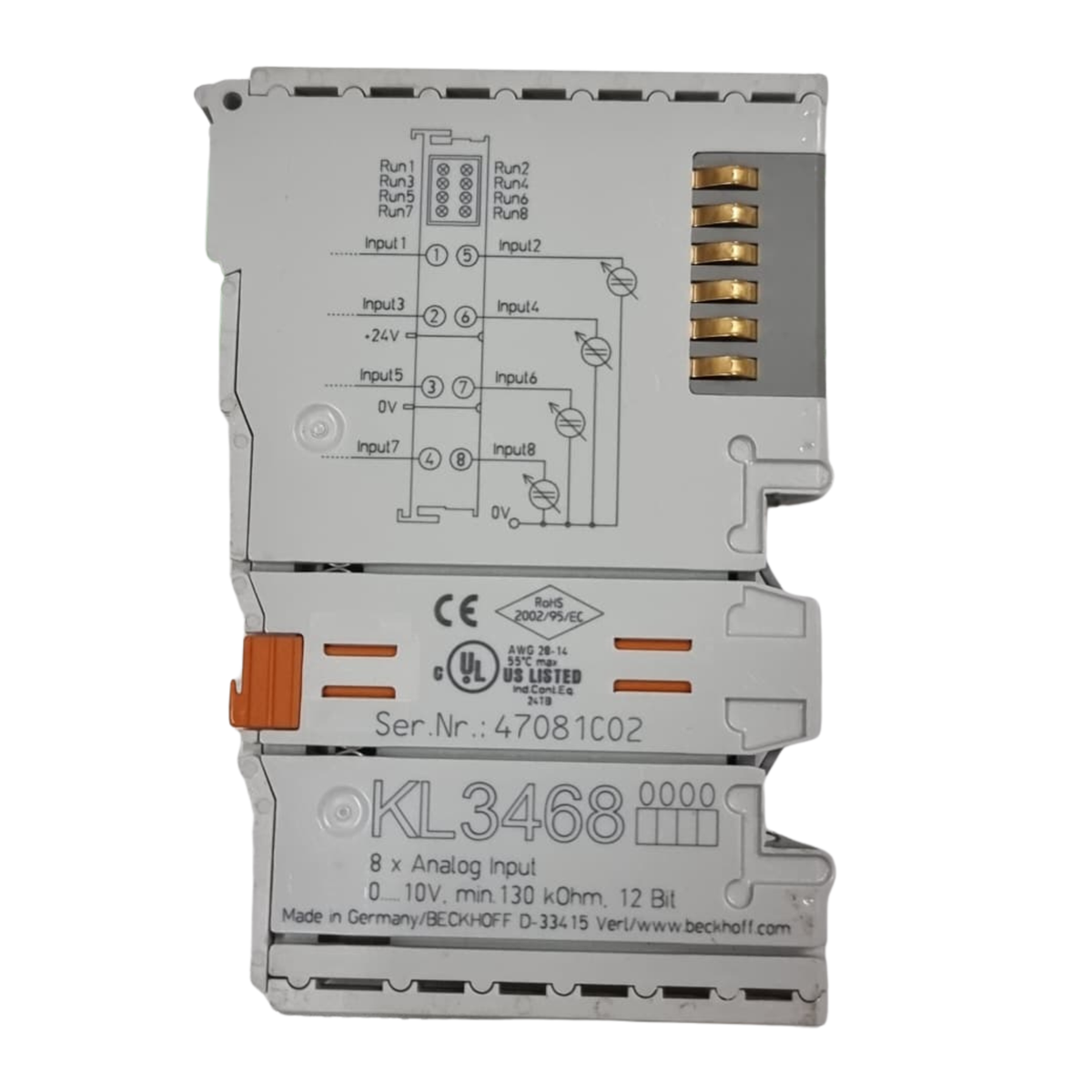

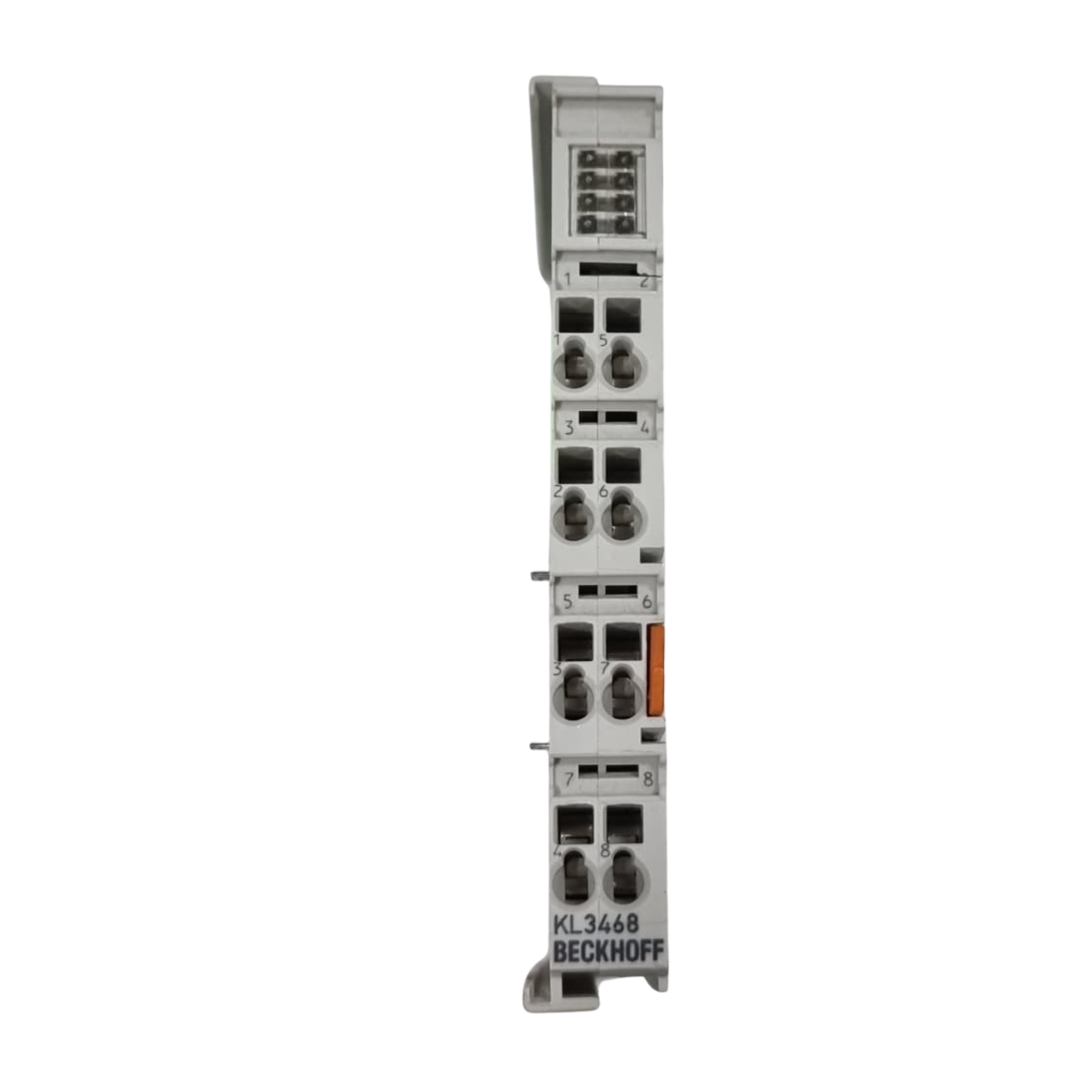

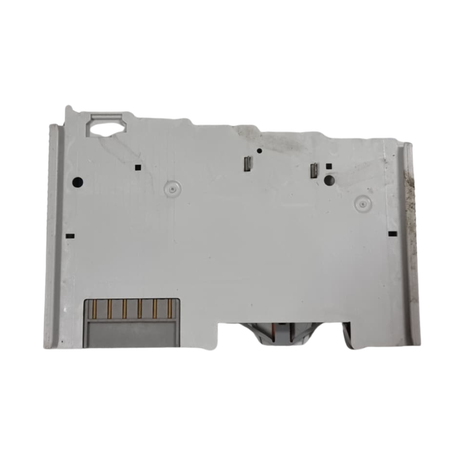

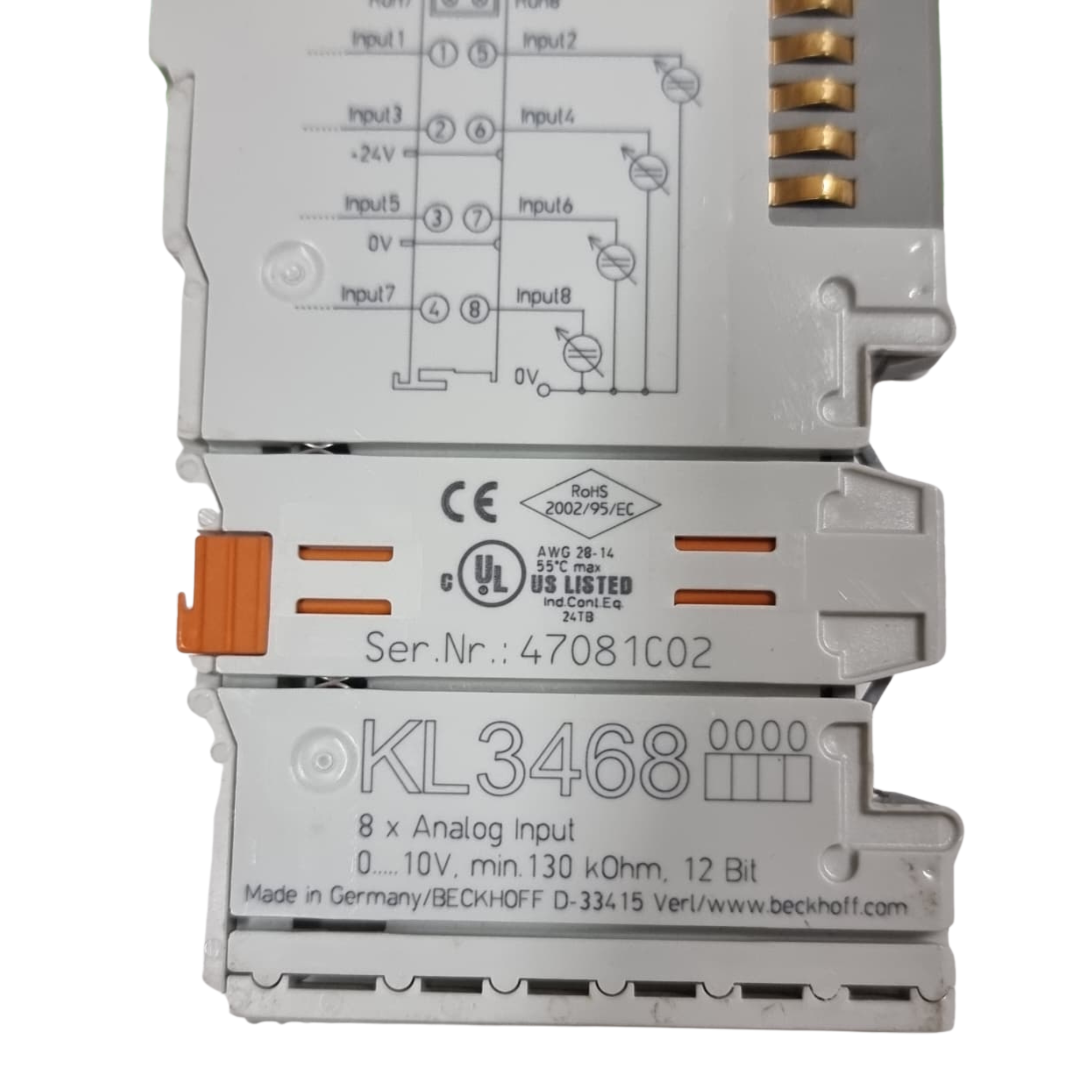

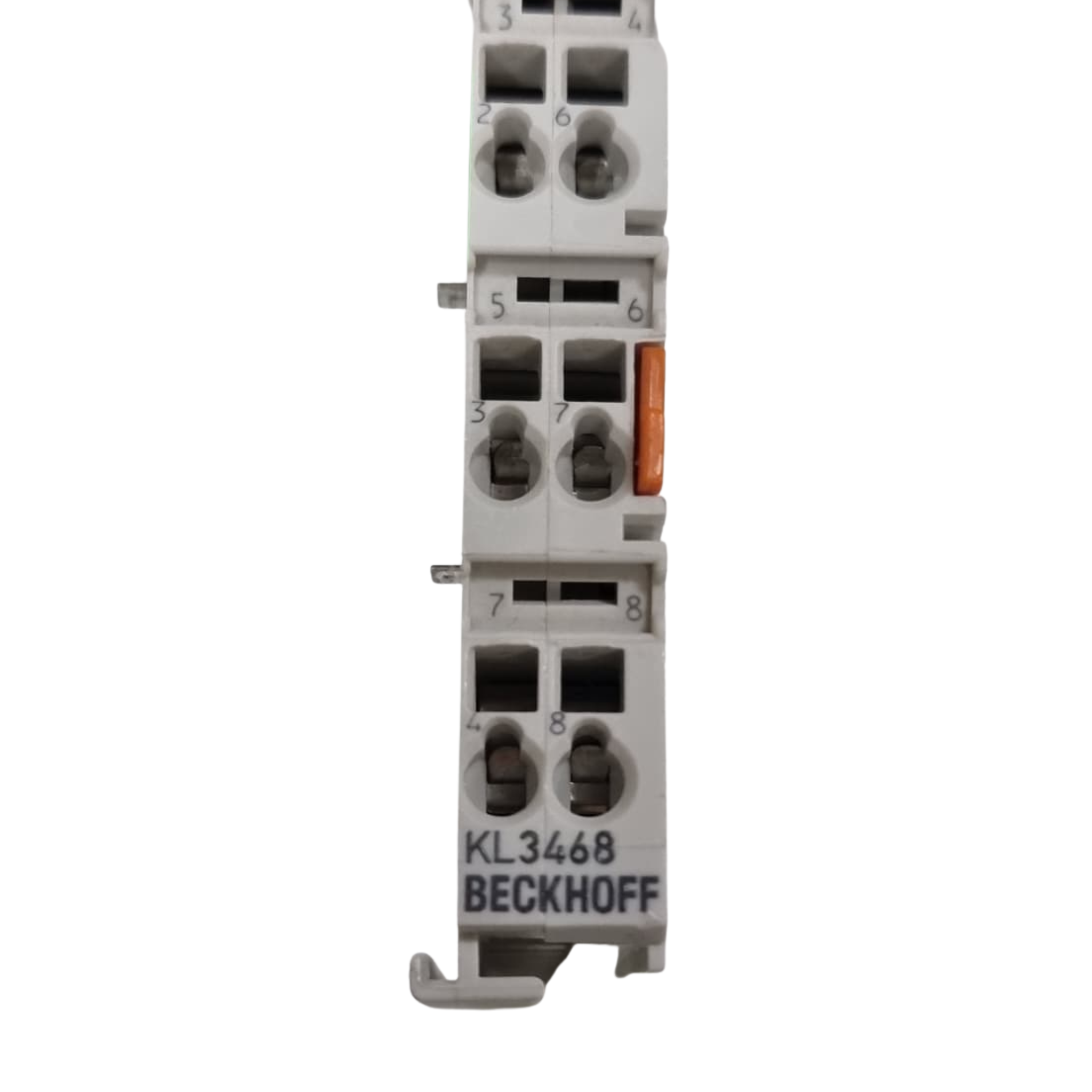

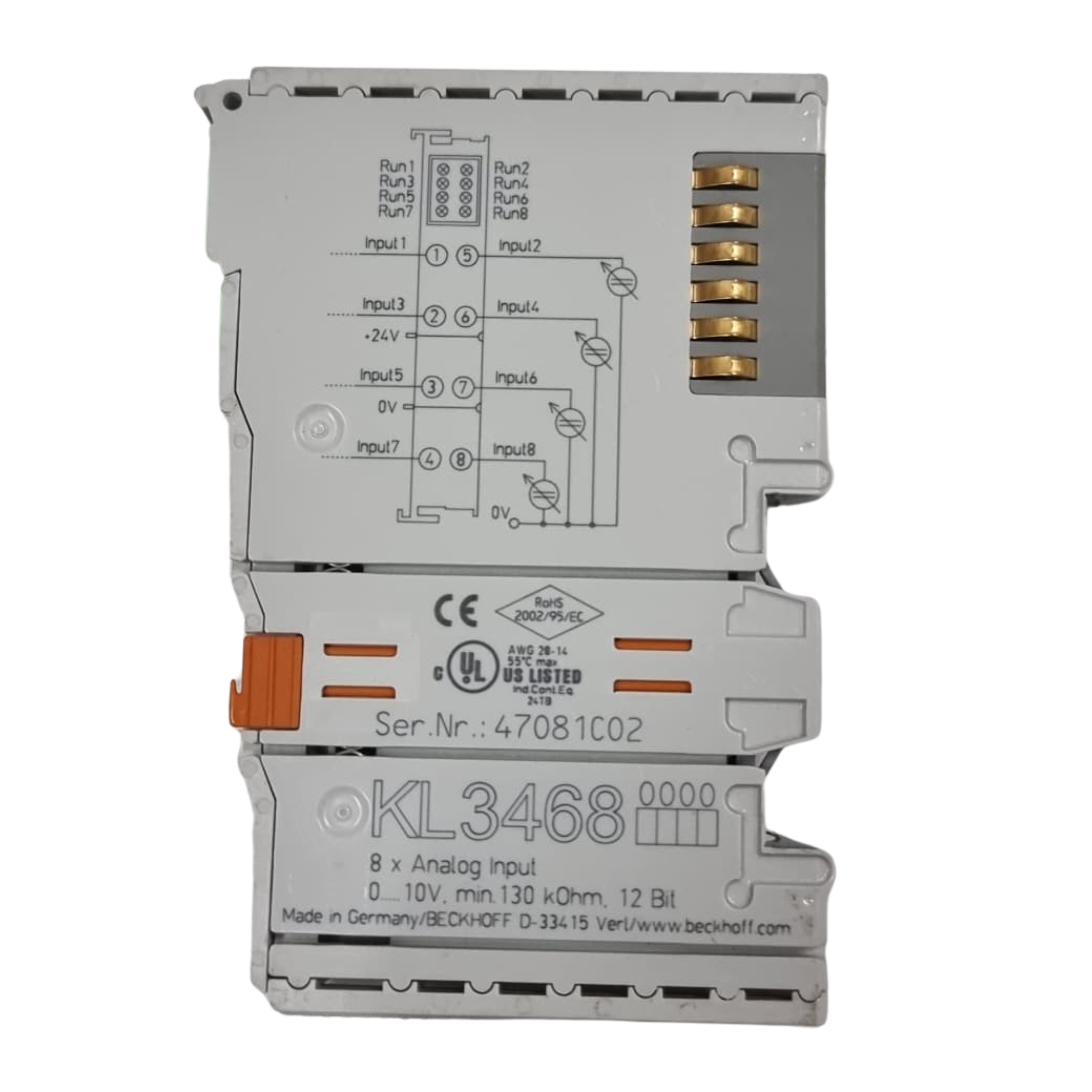

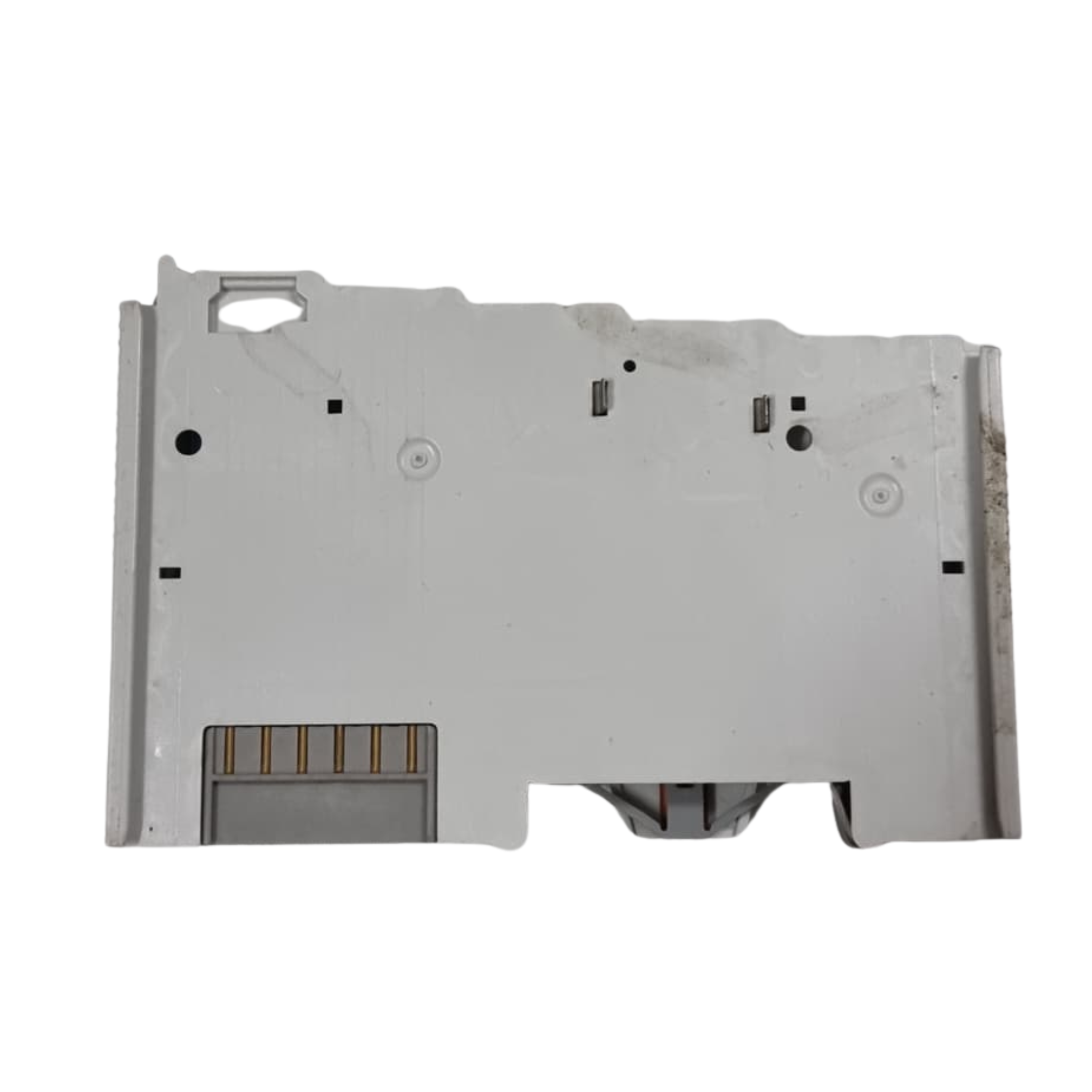

Beckhoff KL3468 Analog Input Terminal

Description:

The Beckhoff KL3468 is an 8-channel analog input bus terminal designed for seamless integration into Beckhoff KL-series modular I/O systems, accepting voltage signals in the 0–10V range with 12-bit resolution and a minimum input impedance of 130 kOhm. Supporting eight simultaneous analog input channels, the KL3468 enables high-density signal acquisition for process monitoring, control feedback, and sensor data acquisition in demanding industrial environments. Rated for operation up to 55°C and compatible with AWG 28–14 conductors, the terminal is suited to Middle Eastern and international industrial installations. Compliant with CE, RoHS 2002/95/EC, and UL Listed standards, the KL3468 meets the certification requirements for UAE and global project specifications. Industrio.ae supplies Beckhoff KL-series analog I/O terminals including surplus and wholesale stock, serving automation engineers, EPC contractors, panel builders, and MRO procurement teams across the UAE and GCC region.

Technical Specifications:

• Brand: Beckhoff
• Product Type: Analog Input Bus Terminal — 8-Channel
• Part Number: KL3468
• Serial Number: 47081C02
• Industry Category: Industrial Automation / PLC I/O / Analog Input
• Number of Channels: 8 x Analog Input
• Input Voltage Range: 0…10V
• Input Impedance: min. 130 kOhm
• Resolution: 12 Bit
• Supply Voltage: +24V DC
• Voltage Rating: Available upon request
• Current Rating: Available upon request
• Power Rating: Available upon request
• Wire Range: AWG 28–14
• Max. Operating Temperature: 55°C
• Mounting Type: DIN Rail (KL-series snap-on bus terminal)
• Standards / Compliance: CE, RoHS 2002/95/EC, UL Listed (Ind. Cont. Eq. 24TB), cUL
• Country of Origin: Germany (BECKHOFF D-33415 Verl)

Application:

The Beckhoff KL3468 is deployed in industrial automation panels where high-density analog voltage signal acquisition is required, connecting sensors, transducers, potentiometers, and process instruments outputting 0–10V signals directly to a Beckhoff Bus Coupler system. Its 8-channel configuration maximises I/O density within compact DIN rail control cabinets, making it suitable for machine building, process automation, HVAC control, and factory automation applications. The terminal integrates into Beckhoff KL-series fieldbus architectures alongside digital and other analog I/O modules for complete process control solutions. For MRO procurement, capital projects, and panel build programs across the UAE and GCC, the KL3468 is a key component in Beckhoff-based analog acquisition systems.

Procurement teams and automation engineers sourcing the Beckhoff KL3468 analog input terminal will find this 8-channel 0–10V bus terminal available through Industrio.ae, a Dubai-based industrial supplier with stock of Beckhoff KL-series I/O modules. As a distributor of surplus and wholesale Beckhoff automation components in the UAE, Industrio.ae serves EPC contractors, systems integrators, and MRO buyers requiring reliable sourcing of certified analog input terminals. The Beckhoff KL3468 remains a widely specified analog I/O module across Beckhoff-equipped facilities in the UAE, Saudi Arabia, and broader GCC industrial markets.

Metafields:

• brand: Beckhoff
• part_number: KL3468
• serial_number: 47081C02
• product_type: Analog Input Bus Terminal — 8-Channel, 0–10V, 12-Bit
• industry_category: Industrial Automation / PLC I/O / Analog Input
• voltage_rating: Available upon request
• current_rating: Available upon request
• power_rating: Available upon request
• input_voltage_range: 0…10V
• input_impedance: min. 130 kOhm
• resolution: 12 Bit
• number_of_channels: 8
• supply_voltage: +24V DC
• wire_range: AWG 28–14
• max_operating_temp: 55°C
• mounting_type: DIN Rail (KL-series)
• standards: CE, RoHS 2002/95/EC, UL Listed cUL
• country_of_origin: Germany
• condition: Used / Surplus
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

• Condition: Used

• Tested✅
