Beckhoff KL6031 RS232C Serial Interface Bus Terminal

Description:

The Beckhoff KL6031 RS232C Serial Interface Terminal is a high-performance communication bus terminal designed for integration into Beckhoff's KL-series modular I/O systems. Supporting serial communication up to 115 kBaud with a 24-byte process image, the KL6031 enables reliable RS232C data exchange between PLCs and peripheral devices in demanding industrial environments. The terminal features dedicated LEDs for Run, TxD, and RxD status monitoring, providing real-time diagnostics at the panel level. Compliant with CE, RoHS 2002/95/EC, and UL Listed standards, it meets the regulatory requirements for international industrial projects. Compatible with AWG 28–14 conductors and rated for operation up to 55°C, the module is well-suited for panel builders, EPC contractors, and MRO procurement teams across the UAE and broader industrial markets. Industrio.ae maintains stock of Beckhoff automation components, including surplus and wholesale quantities, serving industrial buyers requiring reliable sourcing of certified communication terminals.

Technical Specifications:

• Brand: Beckhoff
• Product Type: RS232C Serial Interface Bus Terminal
• Part Number: KL6031
• Industry Category: Industrial Automation / PLC I/O / Serial Communication
• Voltage Rating: Available upon request
• Current Rating: Available upon request
• Power Rating: Available upon request
• Input Voltage: Available upon request
• Output Voltage: Available upon request
• Baud Rate: Max. 115 kBaud
• Process Image: 24 Byte PI
• Interface Type: RS232C
• Wire Range: AWG 28–14
• Max. Operating Temp: 55°C
• Mounting Type: DIN Rail (KL-series snap-on bus terminal)

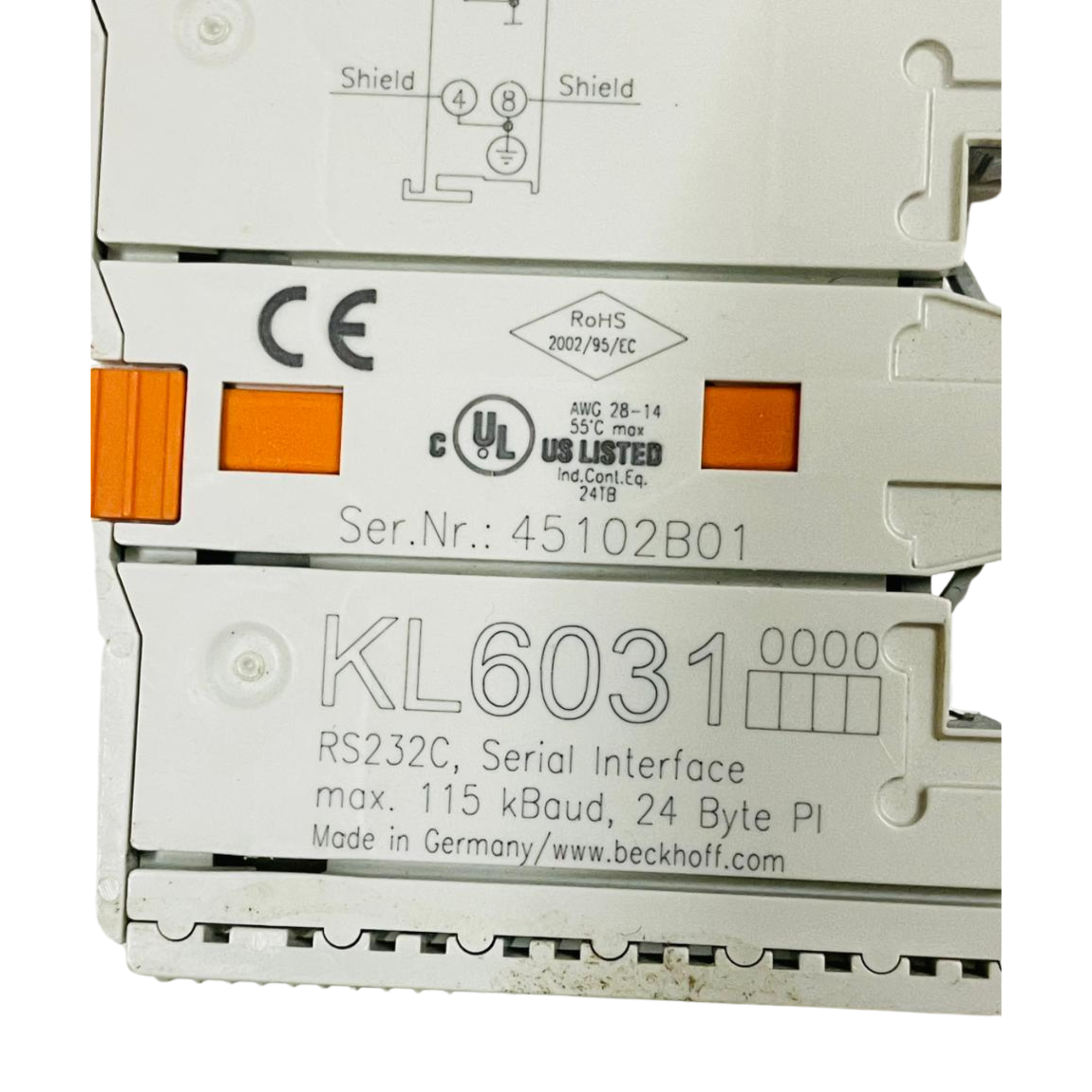

• Standards / Compliance: CE, RoHS 2002/95/EC, UL Listed (Ind. Cont. Eq. 24TB), cUL
• Country of Origin: Germany

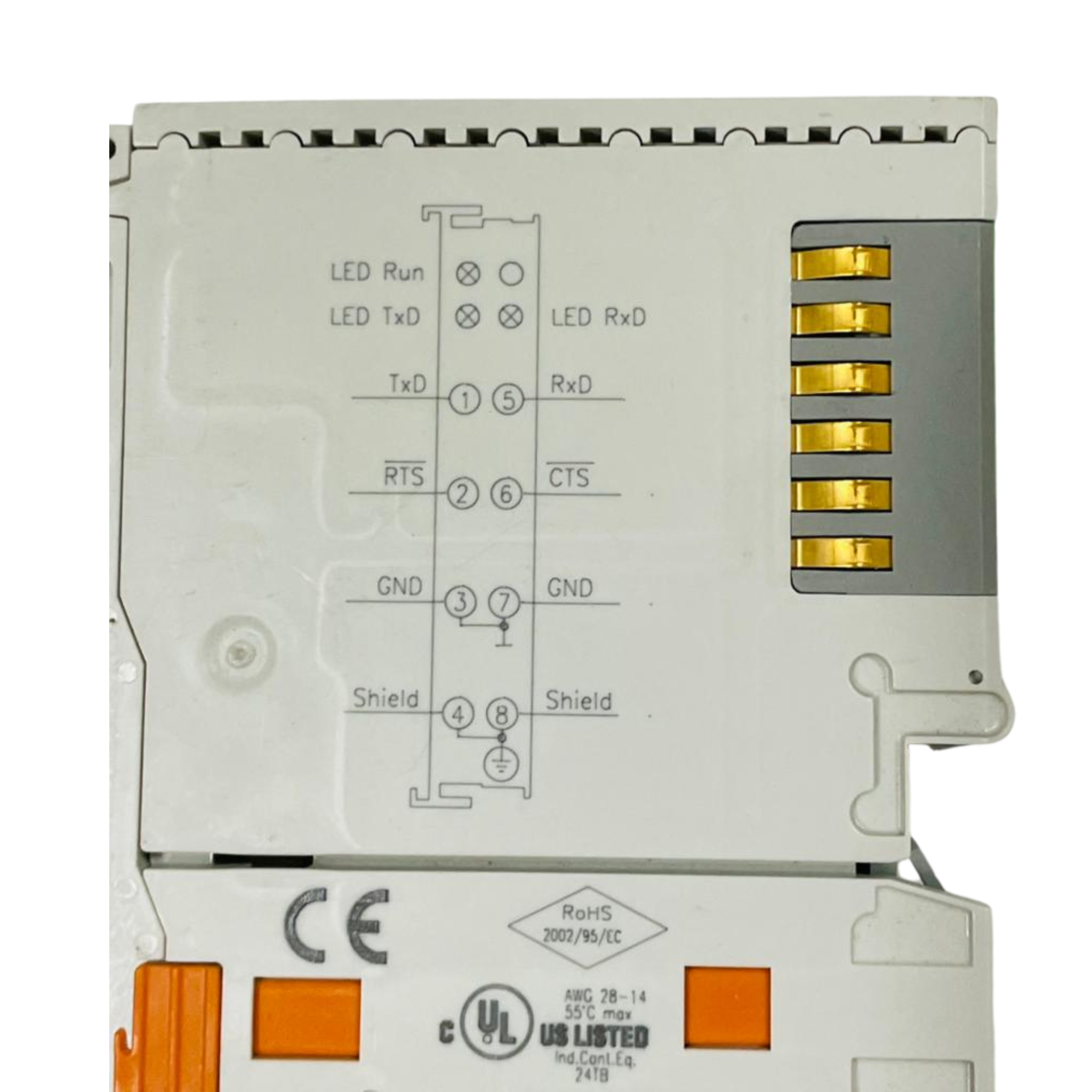

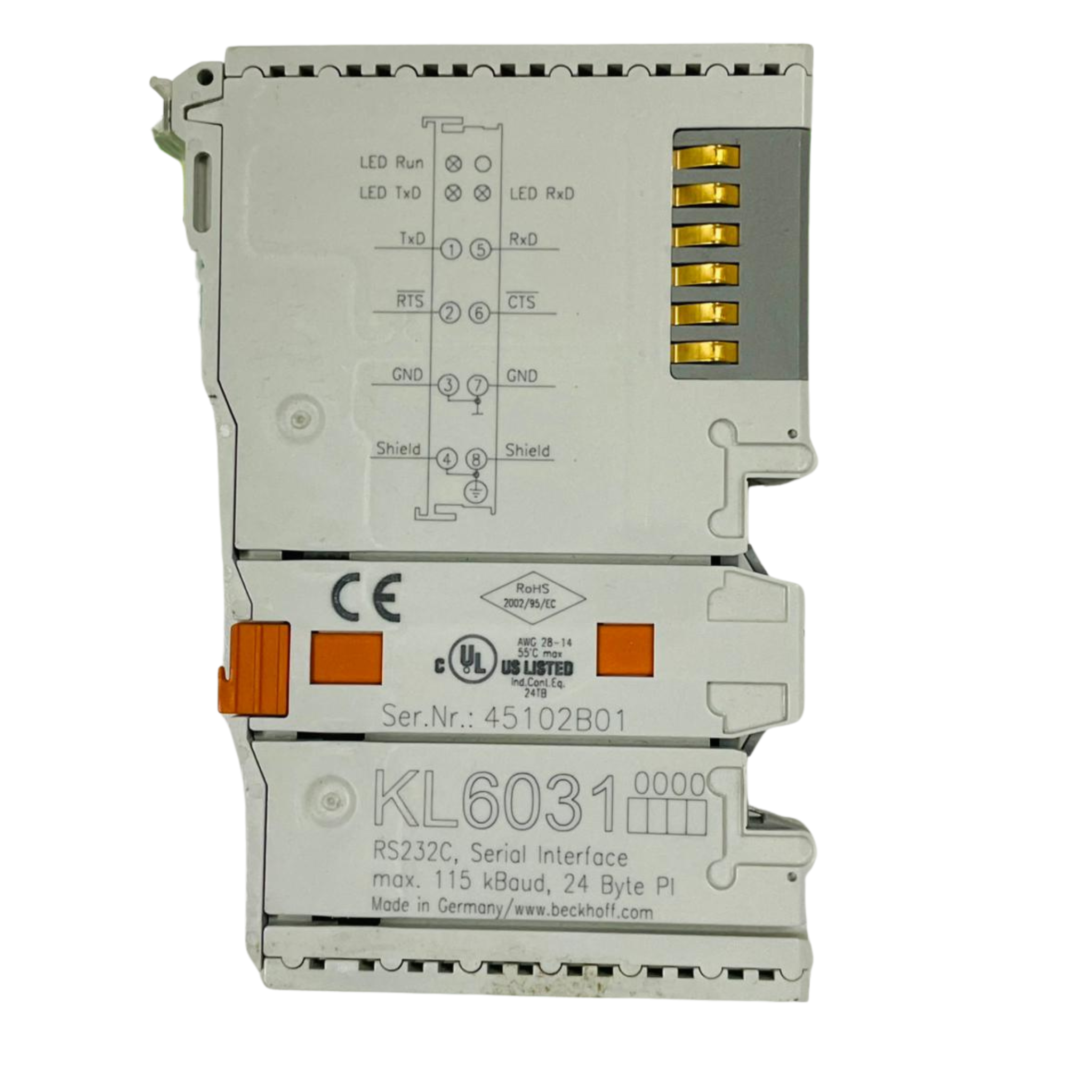

• Pin Configuration: TxD(1), RTS(2), GND(3), Shield(4), RxD(5), CTS(6), GND(7), Shield(8)

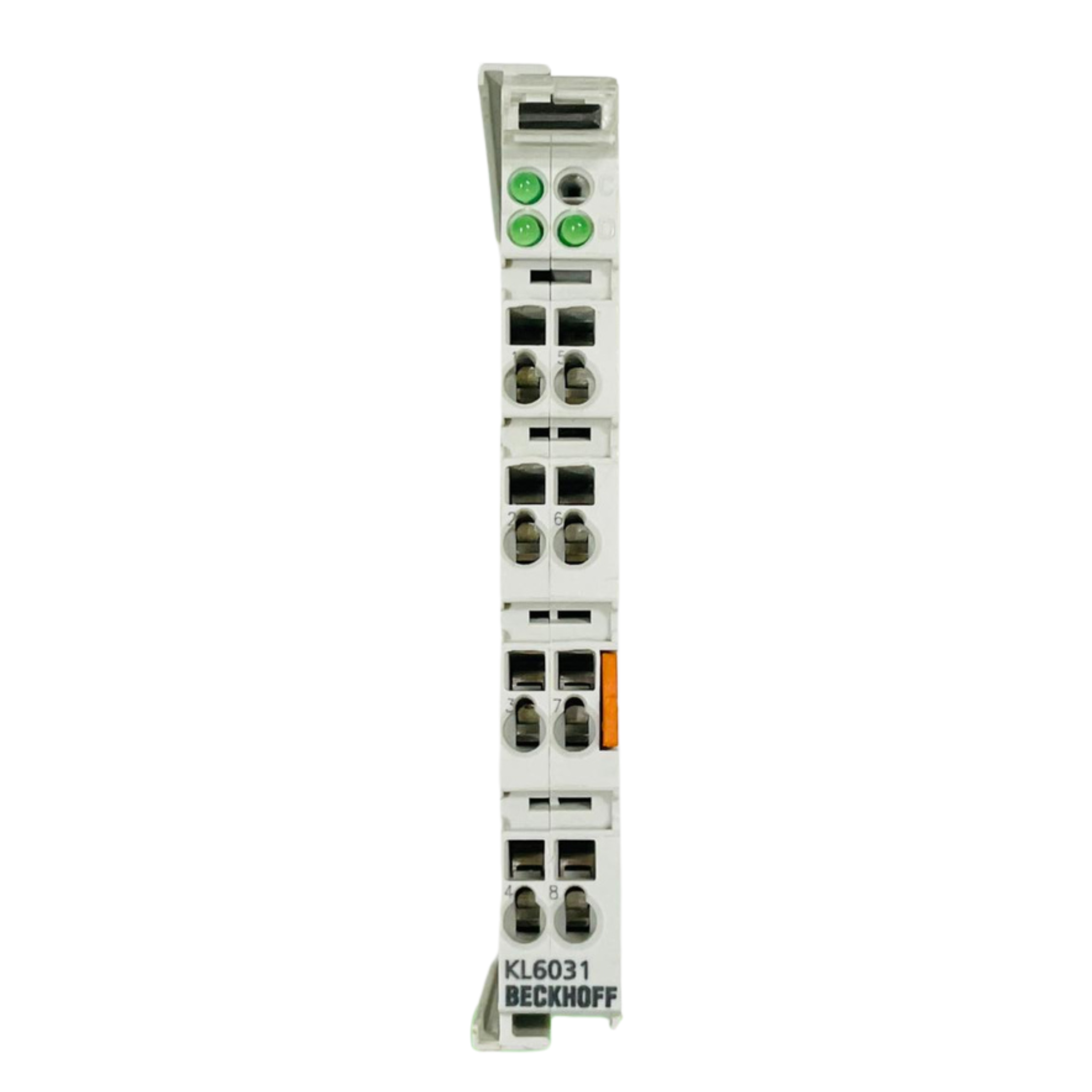

• Status Indicators: LED Run, LED TxD, LED RxD
• Serial Number: 45102B01

Application:

The Beckhoff KL6031 is used in industrial automation panels where RS232C serial communication is required between a Beckhoff Bus Coupler system and external devices such as barcode readers, weighing scales, printers, drives, or legacy instrumentation. It is installed on DIN rail within control cabinets alongside other KL-series I/O terminals, forming part of a modular fieldbus architecture. The module is relevant for manufacturing plants, process automation facilities, and machine builders requiring standardized serial communication integration. For MRO procurement, capital projects, and panel build programs across the UAE and GCC, it represents a critical component in Beckhoff-based control system assemblies.

Procurement teams sourcing the Beckhoff KL6031 serial terminal will find this RS232C bus terminal available through Industrio.ae, a Dubai-based industrial supplier with stock of Beckhoff automation modules. As an established distributor of surplus and wholesale industrial components in the UAE, Industrio.ae supports EPC contractors, systems integrators, and MRO buyers requiring fast access to Beckhoff KL-series communication terminals. The KL6031 remains a widely specified serial interface module across Beckhoff-equipped facilities in the UAE, Saudi Arabia, and broader GCC industrial markets.

Metafields:

• brand: Beckhoff
• part_number: KL6031
• product_type: RS232C Serial Interface Bus Terminal
• industry_category: Industrial Automation / PLC I/O / Communication
• voltage_rating: Available upon request
• current_rating: Available upon request
• power_rating: Available upon request
• input_voltage: Available upon request
• output_voltage: Available upon request
• mounting_type: DIN Rail (KL-series)
• standards: CE, RoHS 2002/95/EC, UL Listed cUL
• condition: Used / Surplus
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

• Condition: Used

• Tested✅
