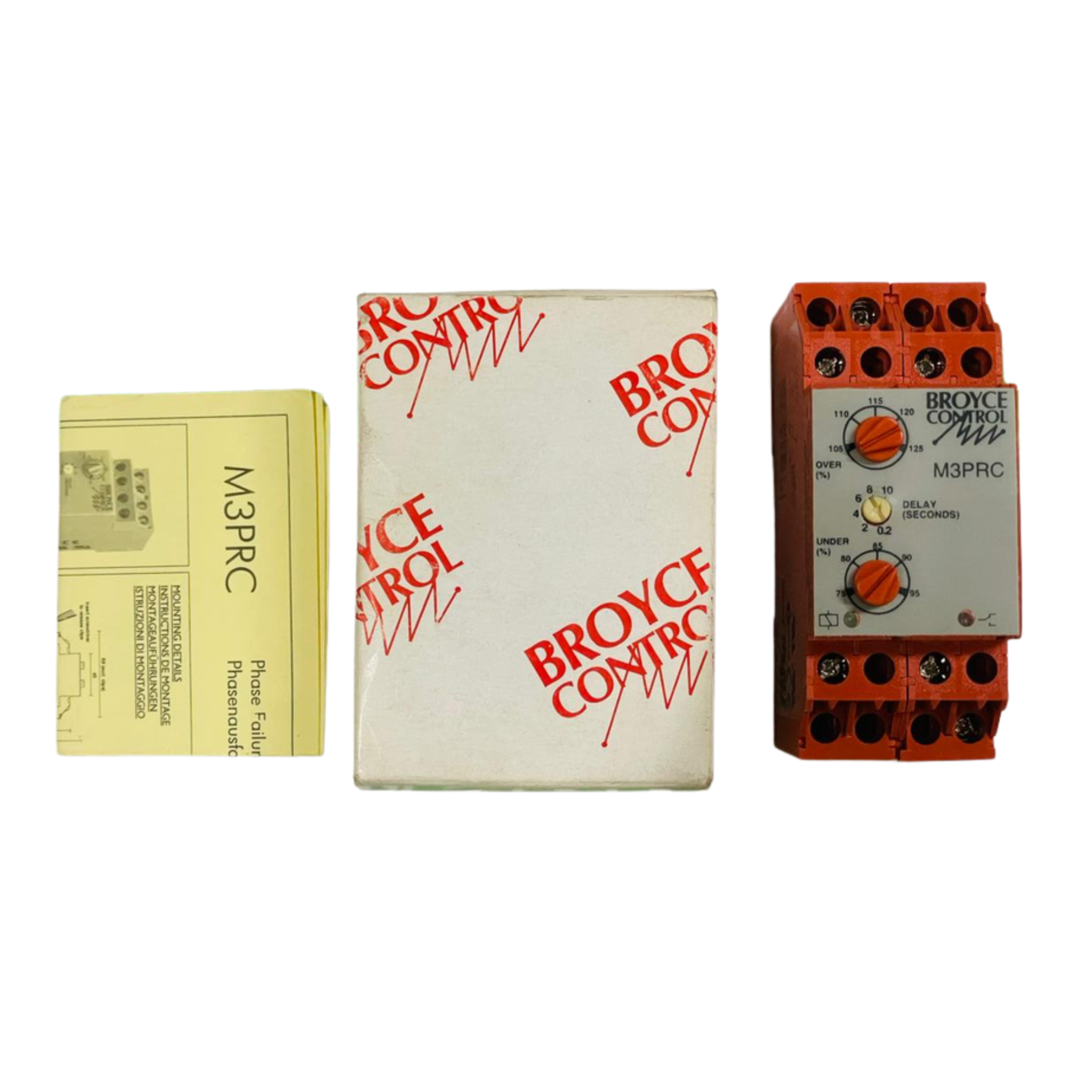

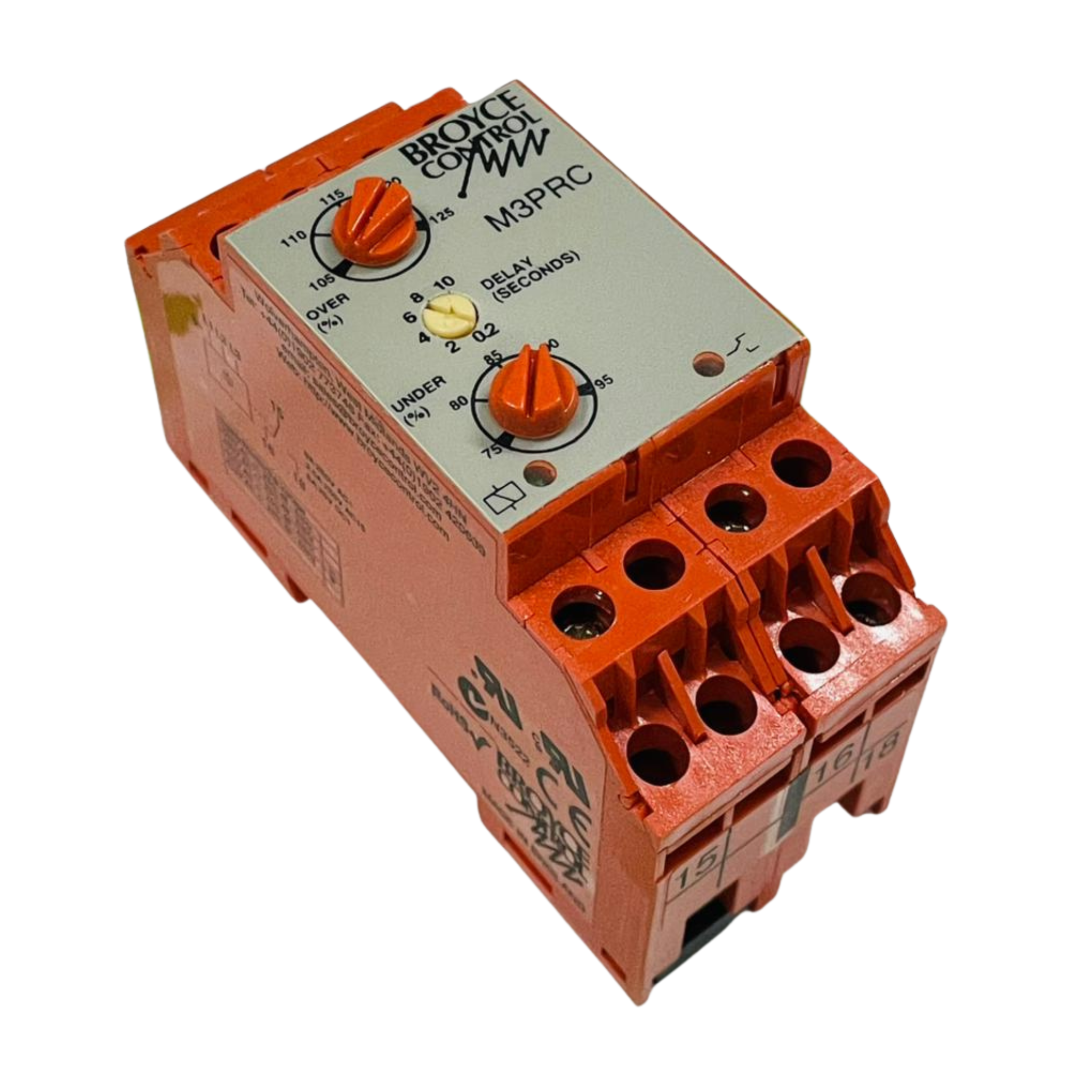

Broyce Control M3PRC Phase Monitoring Relay 415VAC 8A

Description:

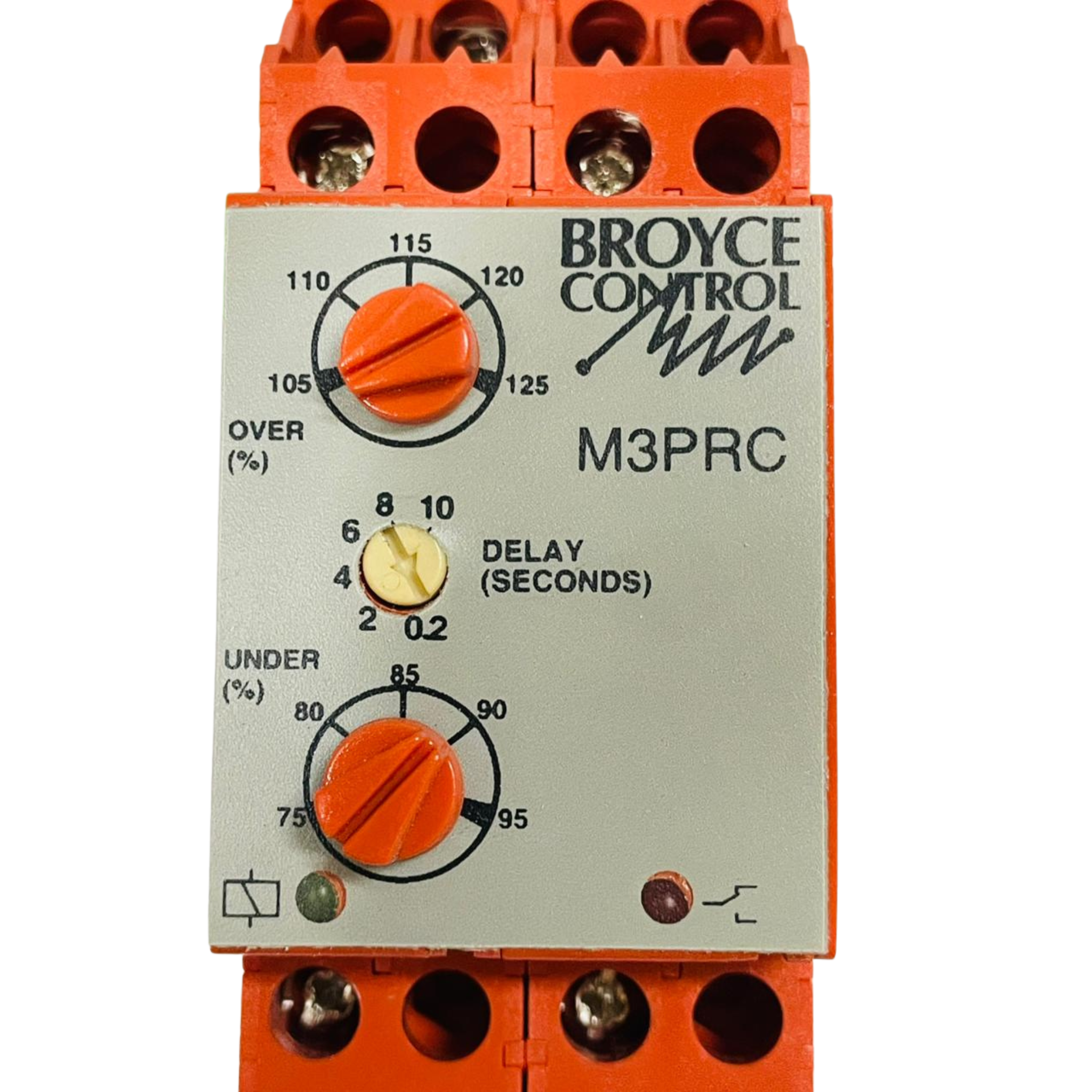

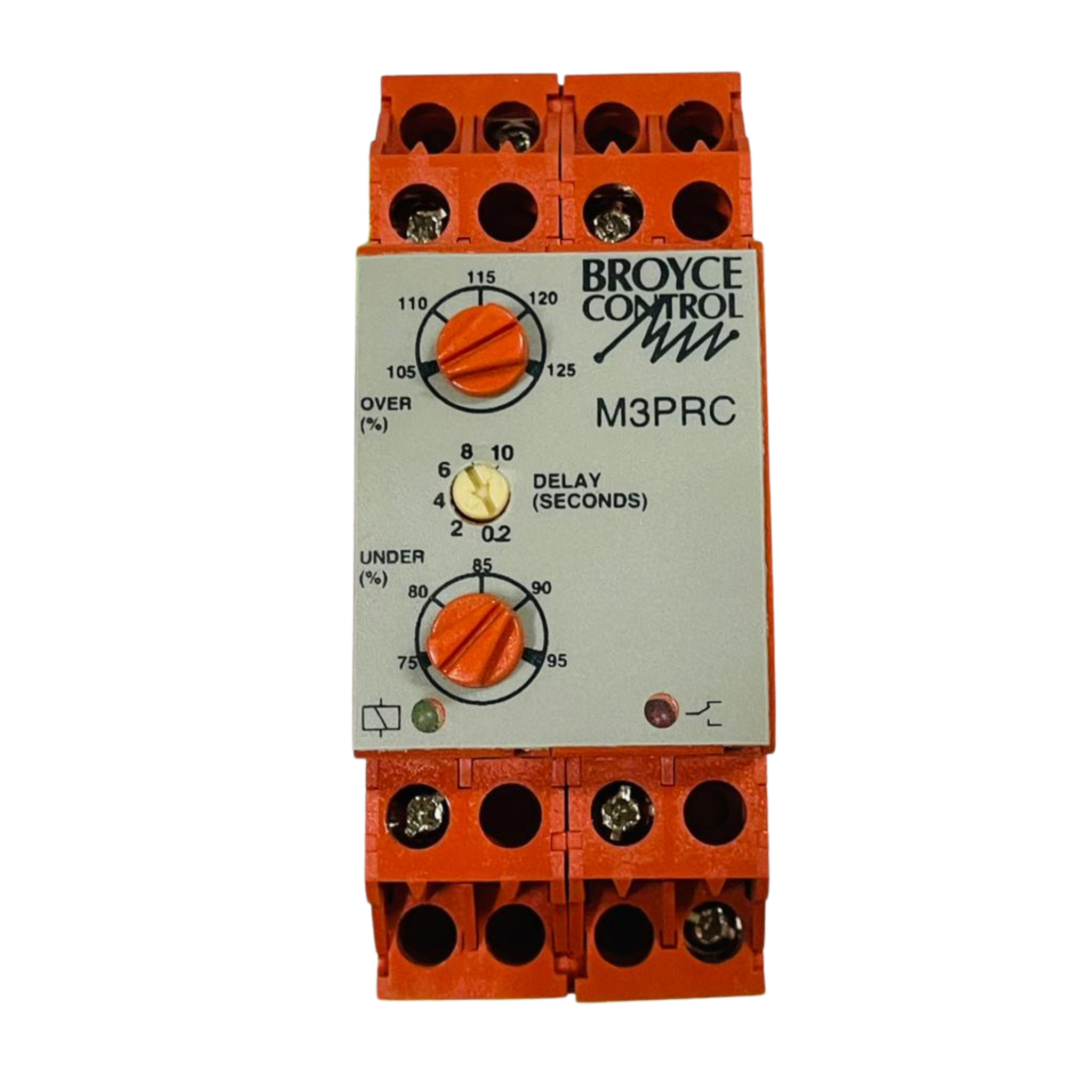

Procure the Broyce Control M3PRC protection relay price and availability specifications directly from a trusted industrial stockist to protect downstream hardware from line power issues. This high-performance electrical switchgear instrument actively evaluates standard 415V AC three-phase grids against adjustable parameters, keeping operations safe from dangerous supply shifts. Equipped with precise front potentiometers, engineers can customize over-voltage thresholds up to 125%, under-voltage drops down to 75%, and fine-tune trip delay durations from 0.2 to 10 seconds to handle momentary fluctuations. For EPC contractors, maintenance crews, and electrical system integrators searching for an authentic Broyce Control M3PRC distributor UAE partner, securing genuine wholesale inventory ensures total machine protection and maximum process availability. Industrio.ae preserves a strategic selection of surplus power control equipment to address localized emergency MRO requirements, allowing panel builders to deploy premium European components with efficient logistical support.

Technical Specifications:

• Brand: Broyce Control

• Product Type: 3-Phase Phase Monitoring Relay

• Part Number: M3PRC

• Industry Category: Electrical Switchgear / Control and Protection Relays

• Voltage Rating: 415V AC

• Current Rating: 8A (250V AC1)

• Power Rating: Available upon request

• Input Voltage: 415V AC

• Output Voltage: 250V AC / 25V DC max

• Mounting Type: DIN-rail enclosure base

• Standards / Compliance: CE, RoHS, cULus

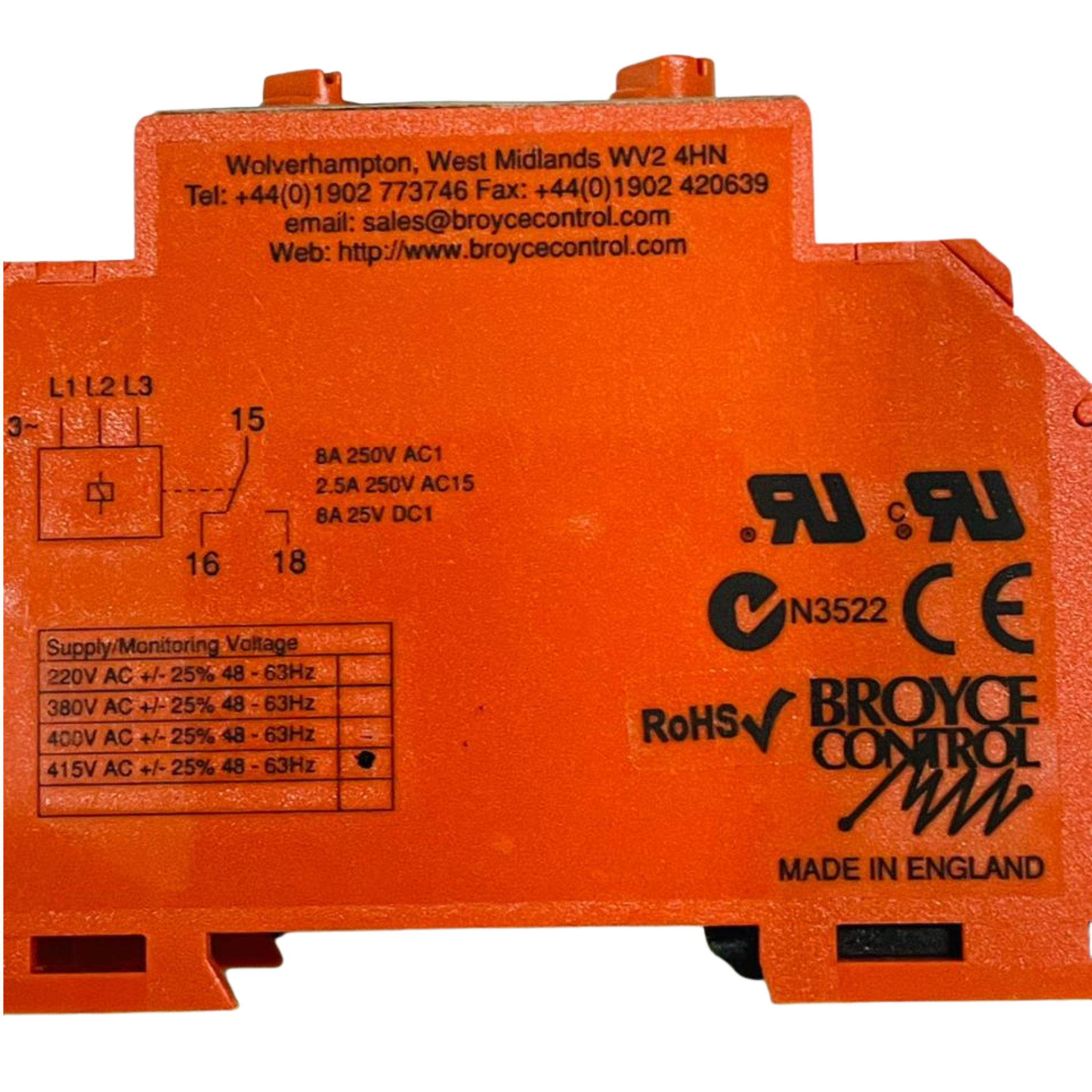

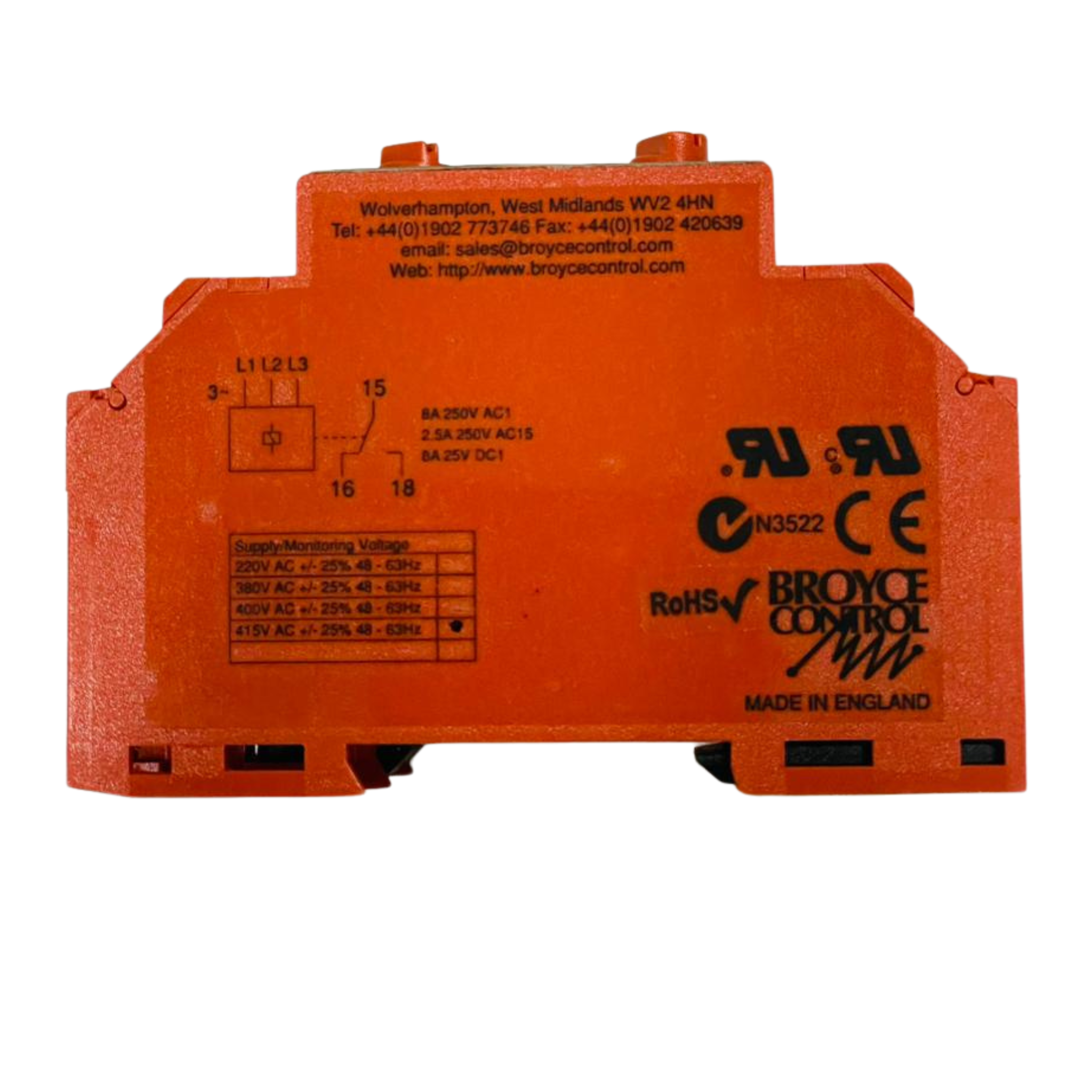

• Other Confirmed Specs: Monitoring voltage range 415V AC +/- 25% at 48-63Hz; output contact configurations rated at 8A 250V AC1, 2.5A 250V AC15, and 8A 25V DC1; integrated LED indicators for supply status and fault signaling; adjustment dials for trip settings and response delays; manufactured in England.

Application:

 The Broyce Control M3PRC monitoring relay is installed inside distribution panel boards, motor control systems, and cooling installations to defend multi-phase machinery against phase loss, phase asymmetry, and voltage variations. It drops control circuit contact lines before irregular line conditions can overhead motor windings or trip expensive industrial hardware. Procurement agents select this model for rapid switchboard retrofitting and factory maintenance campaigns.

 Industrio.ae provides an efficient sourcing framework for obtaining the original Broyce Control M3PRC component directly from factory-sealed or surplus wholesale stock inventories. As a specialized phase monitoring relay supplier Dubai businesses depend on, we manage precise commercial procurement solutions for plant networks throughout the UAE. Engineering departments wanting to acquire high-grade Broyce Control hardware can secure their operations by checking out through our local distribution channel.

Metafields:

• brand: Broyce Control

• part_number: M3PRC

• product_type: Phase Monitoring Relay

• industry_category: Electrical Switchgear

• voltage_rating: 415V AC

• current_rating: 8A

• power_rating: Available upon request

• input_voltage: 415V AC

• output_voltage: 250V AC

• mounting_type: DIN-rail mounting

• standards: CE, RoHS, cULus

• condition: Available upon request

• stock_quantity_available: Available upon request

• target_market: UAE

• global_shipping: Available upon request

• Condition: New Open Box
