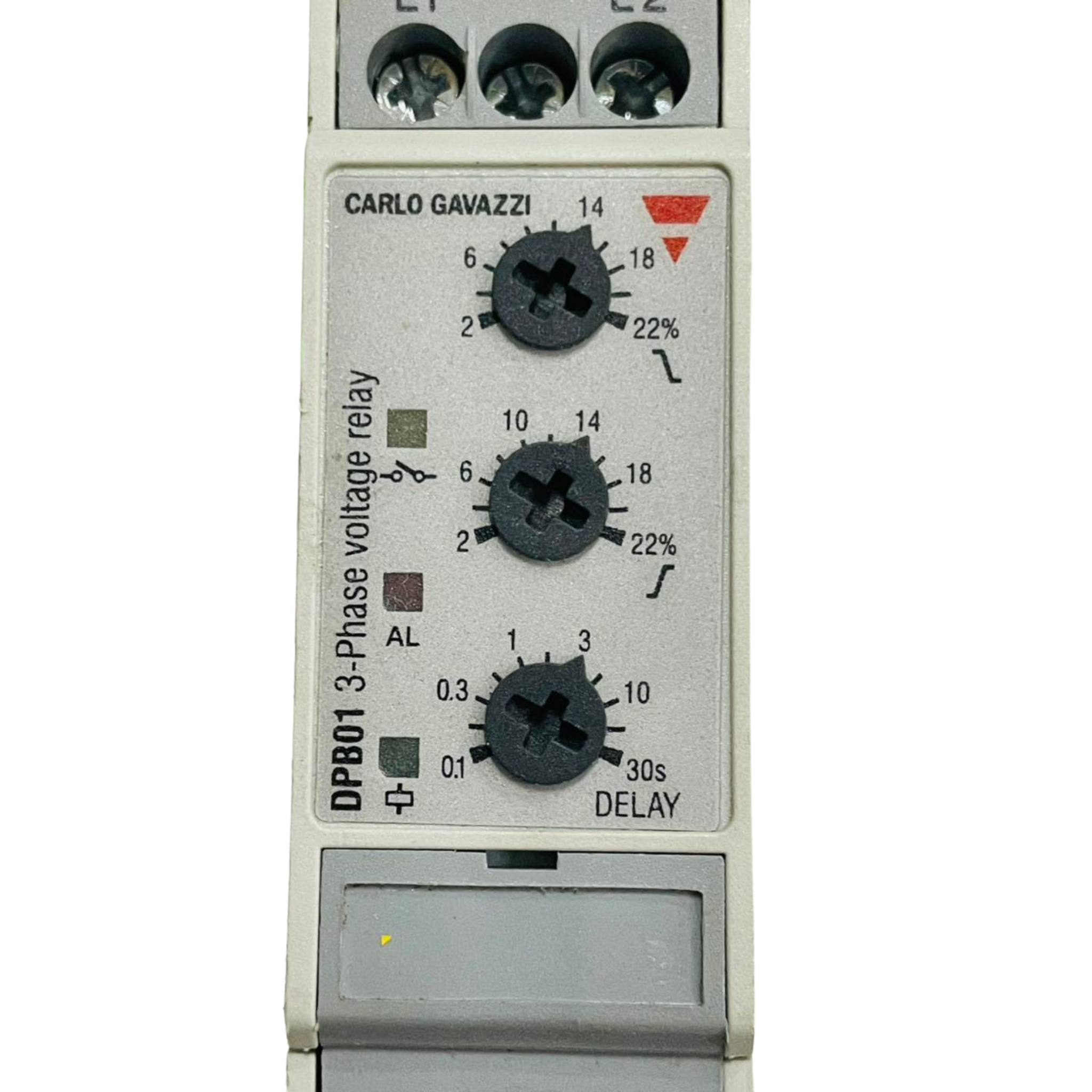

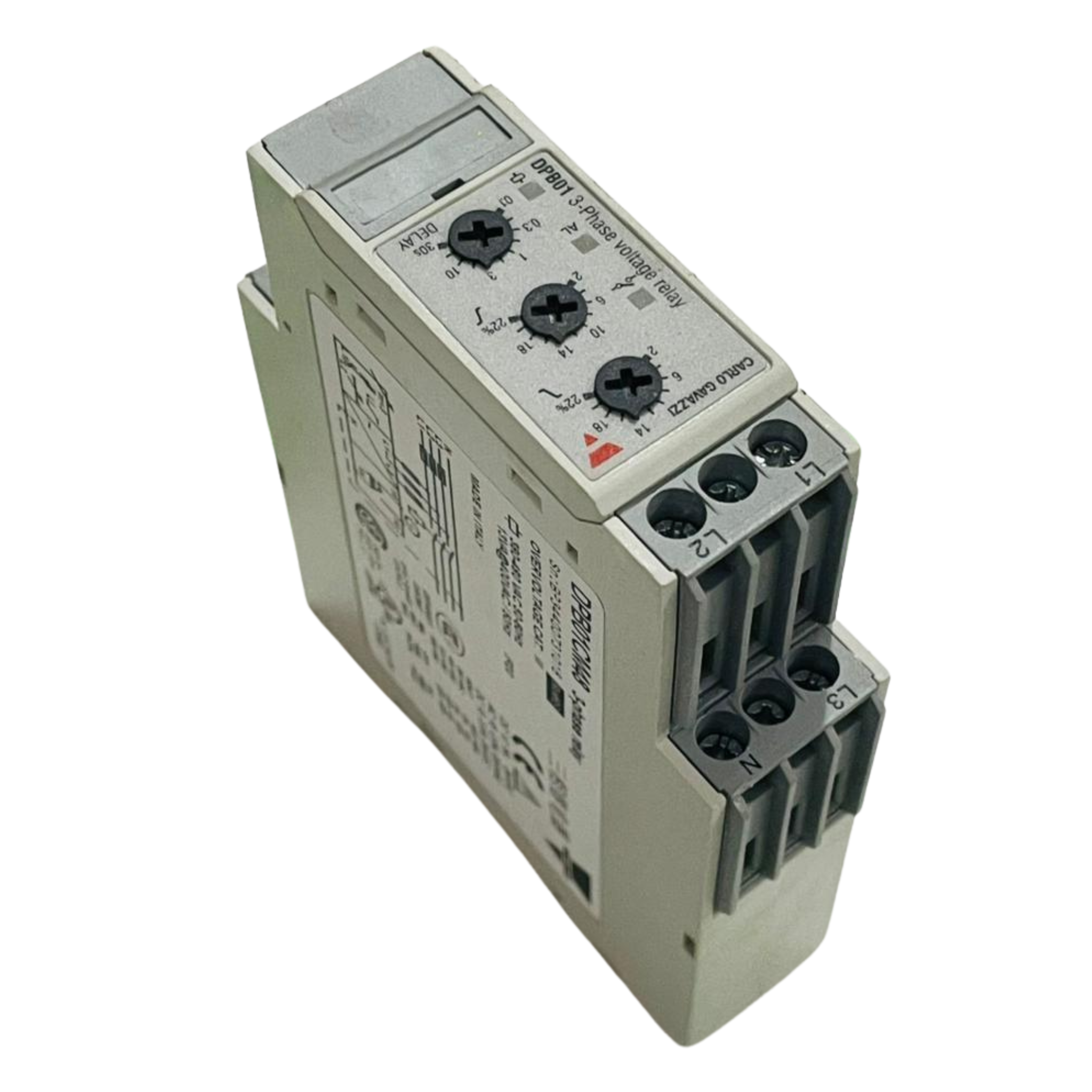

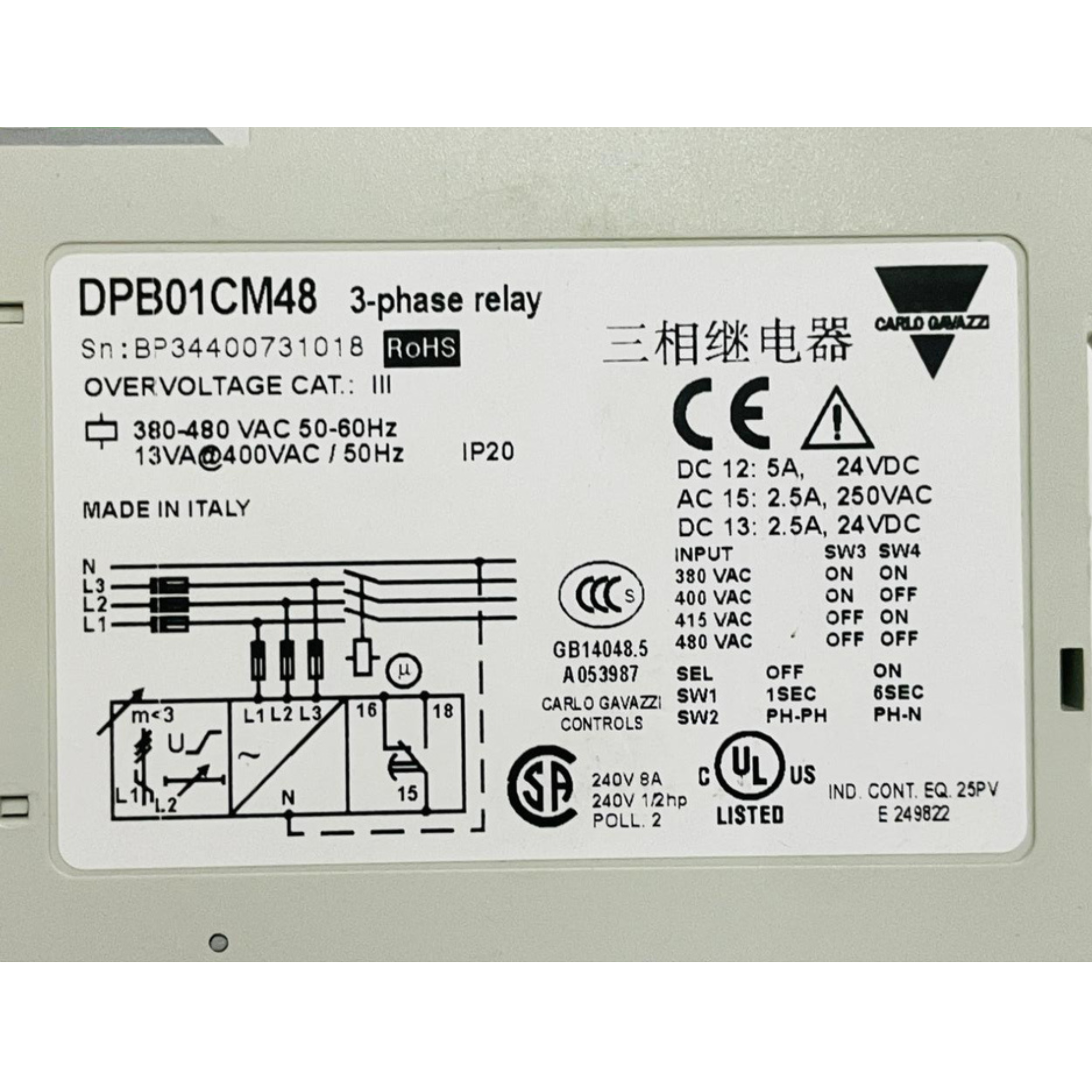

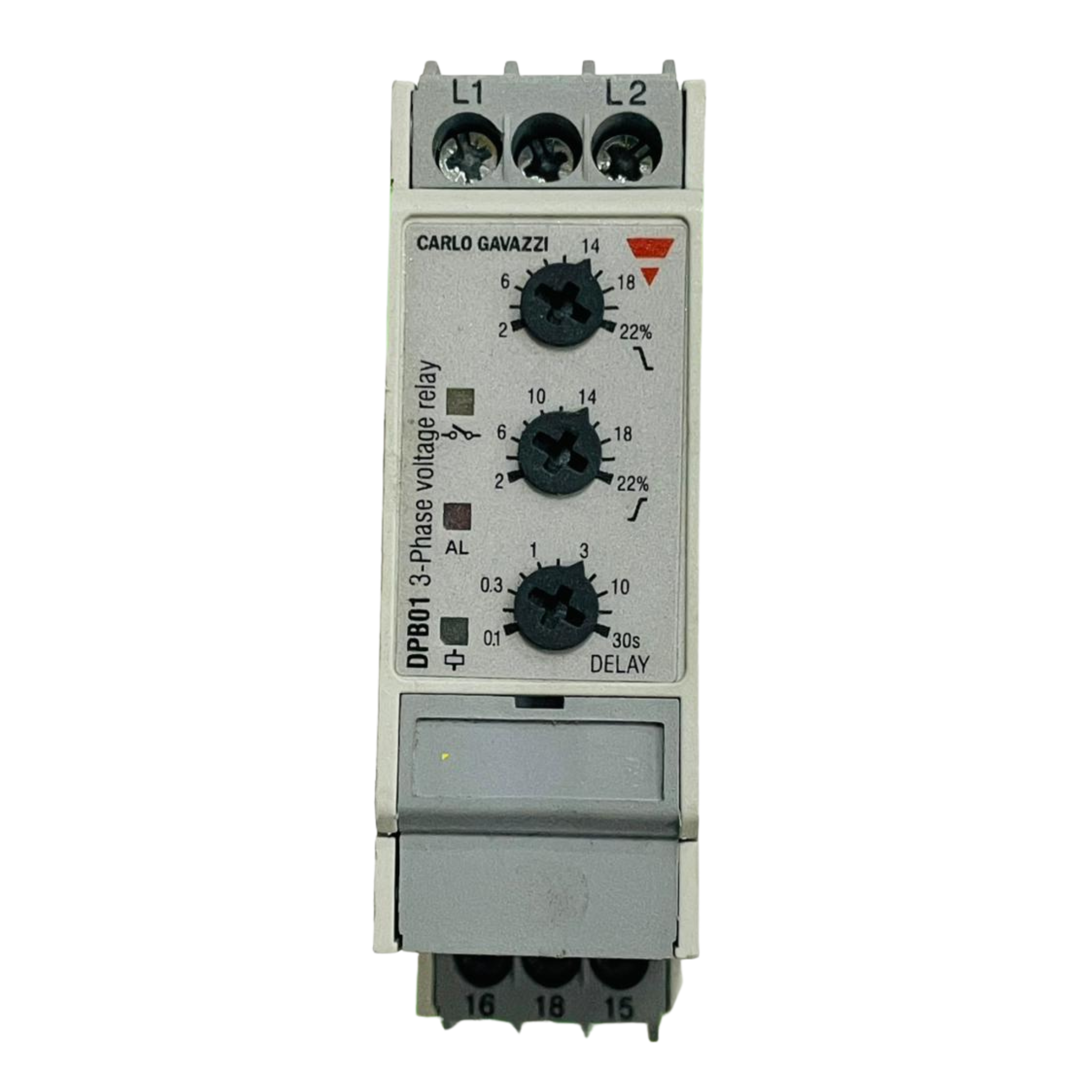

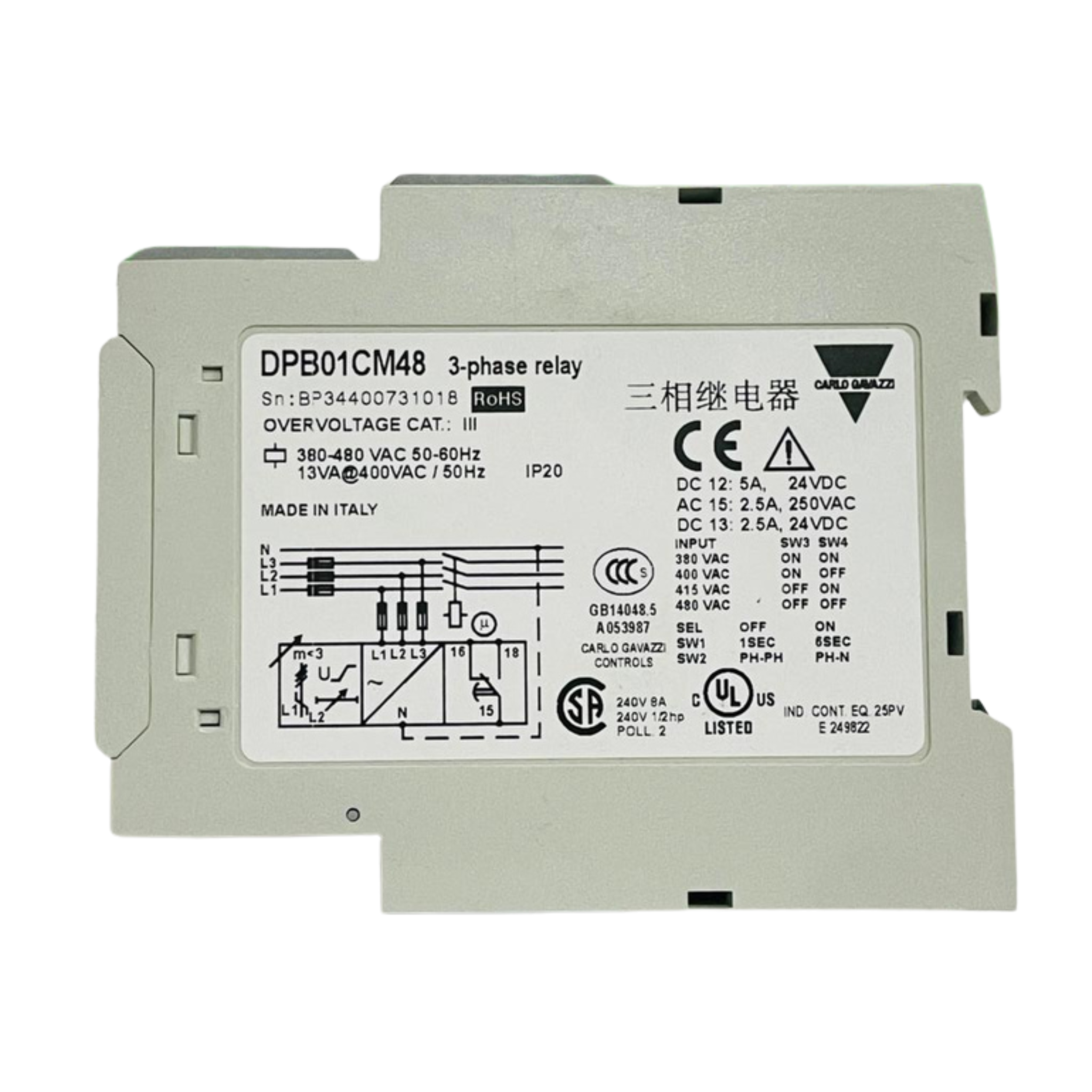

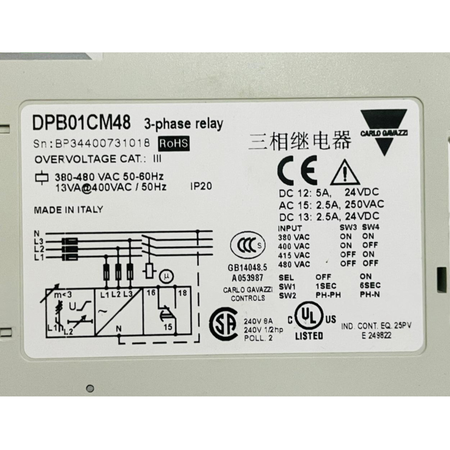

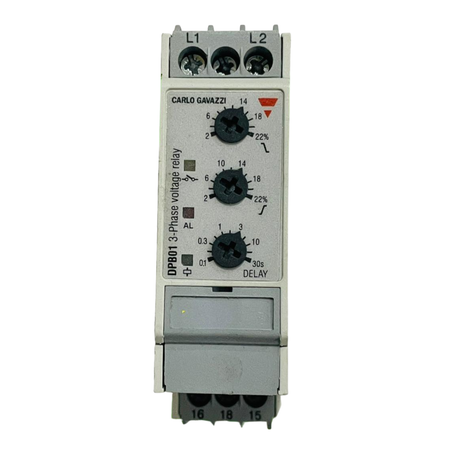

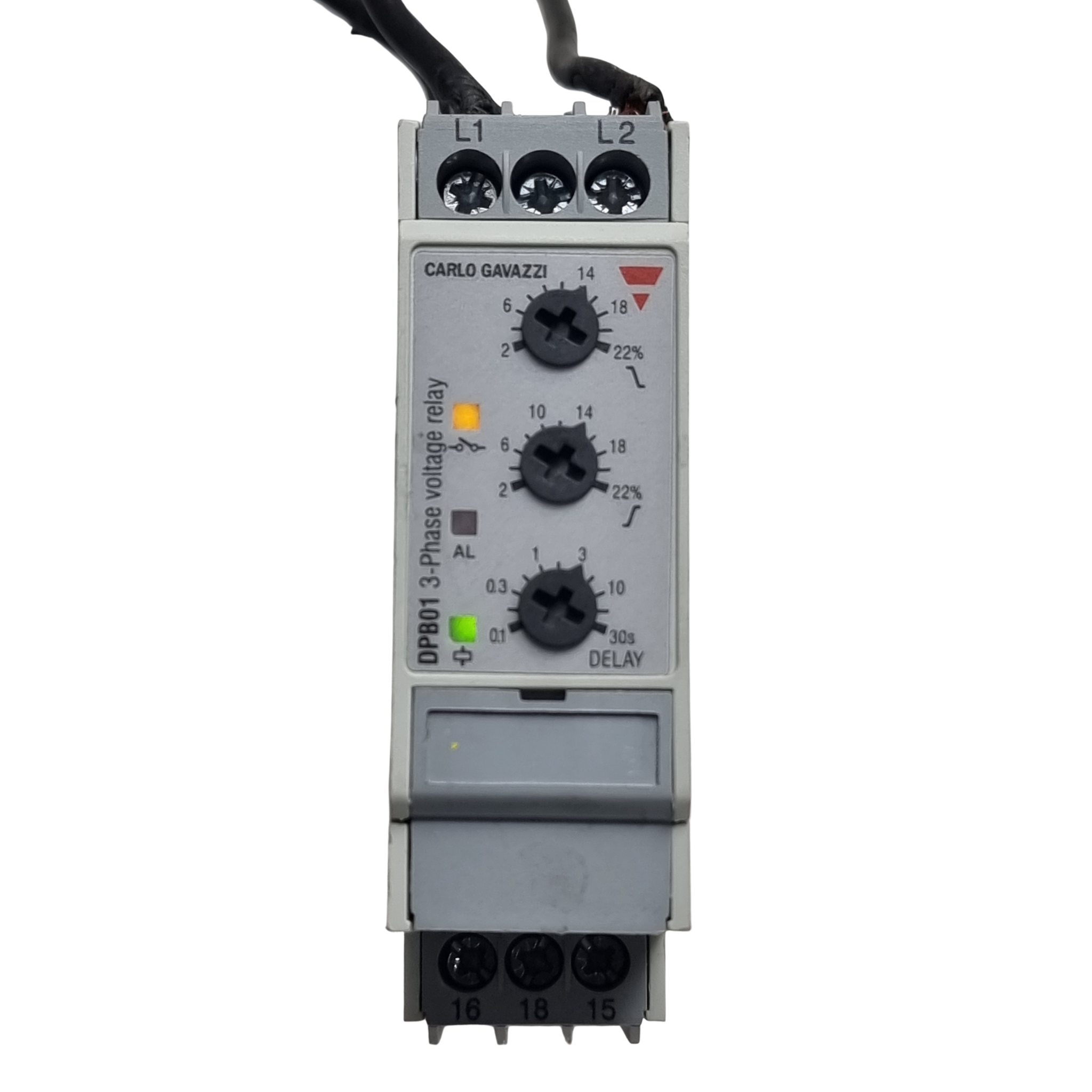

Carlo Gavazzi DPB01CM48 Voltage Monitoring Relay 380-480 VAC

Description:
The Carlo Gavazzi DPB01CM48 is a 3-phase voltage monitoring relay designed to protect electrical equipment from overvoltage and undervoltage conditions, rated for a supply voltage range of 380-480 VAC at 50-60Hz. This relay features adjustable overvoltage and undervoltage trip thresholds from 2-22%, a configurable time delay of 0.1 to 30 seconds, and selectable measurement modes for phase-to-phase or phase-to-neutral monitoring. Manufactured in Italy, the DPB01CM48 is built to IP20 protection standards and Overvoltage Category III, making it suitable for reliable operation in industrial control panels and switchgear enclosures. Industrio.ae, a UAE-based industrial supplier, maintains stock of genuine Carlo Gavazzi voltage relays to support panel builders, EPC contractors, and MRO procurement teams sourcing dependable protection devices across Dubai and the wider Emirates. Certified to CE, UL, CSA, and CCC standards, this relay is commonly used to safeguard motors, transformers, and sensitive electrical loads from voltage fluctuations in three-phase power systems.

Technical Specifications:

• Brand: Carlo Gavazzi
• Product Type: 3-Phase Voltage Monitoring Relay
• Part Number: DPB01CM48
• Industry Category: Voltage Monitoring & Control Devices
• Voltage Rating: 380-480 VAC, 50-60Hz
• Current Rating: DC12: 5A, AC15: 2.5A, DC13: 2.5A
• Power Rating: 13VA @ 400VAC/50Hz
• Input Voltage: 380/400/415/480 VAC (selectable)
• Output Voltage: 24VDC / 250VAC (contact ratings)
• Mounting Type: DIN rail
• Standards / Compliance: CE, UL Listed (E249822), CSA, CCC (GB14048.5), RoHS
• Other Confirmed Specs: Overvoltage Category III, IP20 protection, adjustable trip 2-22%, delay 0.1-30s, PH-PH/PH-N selection, Made in Italy

Application:
The Carlo Gavazzi DPB01CM48 3-Phase Voltage Relay is used to monitor three-phase power supplies and protect connected equipment from damaging overvoltage or undervoltage events. It is installed in industrial control panels, motor control centers, and switchgear enclosures to trigger protective relay outputs when voltage deviates outside configured thresholds. This relay supports panel builders and automation integrators during new panel design, motor protection upgrades, and power quality monitoring installations. It is a commonly stocked protection device for MRO inventories maintaining critical three-phase electrical systems.

Procurement teams sourcing the Carlo Gavazzi DPB01CM48 3-Phase Voltage Monitoring Relay for industrial protection applications can rely on Industrio.ae as a UAE-based supplier maintaining available stock for distribution across Dubai and the wider Emirates. As a trusted distributor of genuine Carlo Gavazzi control and protection relays, Industrio.ae supports EPC contractors, panel builders, and MRO buyers seeking wholesale industrial components with dependable regional supply for panel protection and monitoring projects.

Metafields:

• brand: Carlo Gavazzi
• part_number: DPB01CM48
• product_type: 3-Phase Voltage Monitoring Relay
• industry_category: Voltage Monitoring & Control Devices
• voltage_rating: 380-480 VAC, 50-60Hz
• current_rating: 5A / 2.5A (per contact rating)
• power_rating: 13VA @ 400VAC/50Hz
• input_voltage: 380/400/415/480 VAC
• output_voltage: 24VDC / 250VAC
• mounting_type: DIN rail
• standards: CE, UL, CSA, CCC, RoHS
• condition: Available upon request
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

• Condition: used

• Tested✅
