Cixi Feinade TVR-2000B Phase Failure Protection Relay 220-440V 5A

Description:

The TVR-2000B phase failure and phase sequence protection relay supplier demand is consistent across industrial motor control and power distribution markets requiring dependable 3-phase supply monitoring. Manufactured by Cixi Feinade Electric Appliance Factory, this DIN rail mounted protection relay monitors all three phases (L1, L2, L3) simultaneously for phase loss, phase reversal, and phase scarcity conditions, providing a single changeover output contact (NC/COM/NO) rated at 5A to trip contactors or annunciate faults in motor control circuits and power panels.

Operating across a wide voltage range of 220–440V AC at 50/60 Hz, the TVR-2000B is suitable for protecting three-phase motors, pumps, compressors, fans, and other inductive loads from damage caused by abnormal supply conditions. Three onboard LED indicators — Normal, Reverse, and Scarcity — provide immediate visual fault diagnosis without the need for additional instrumentation. CE and RoHS certified, this unit is available in UAE through Industrio.ae from surplus and wholesale stock for panel builders, motor control system integrators, EPC contractors, and MRO procurement teams. Technical datasheets and bulk pricing are available upon request.

Technical Specifications:

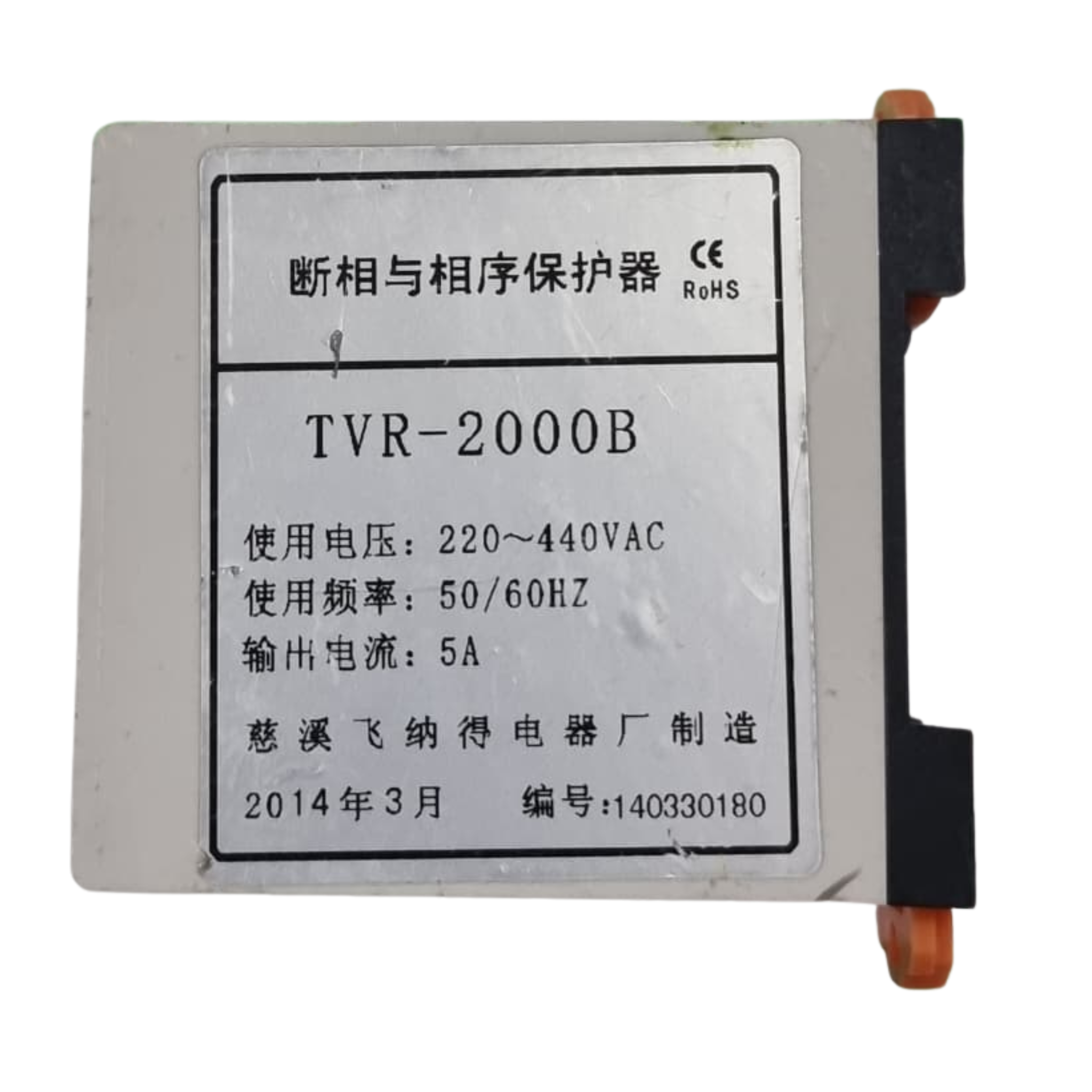

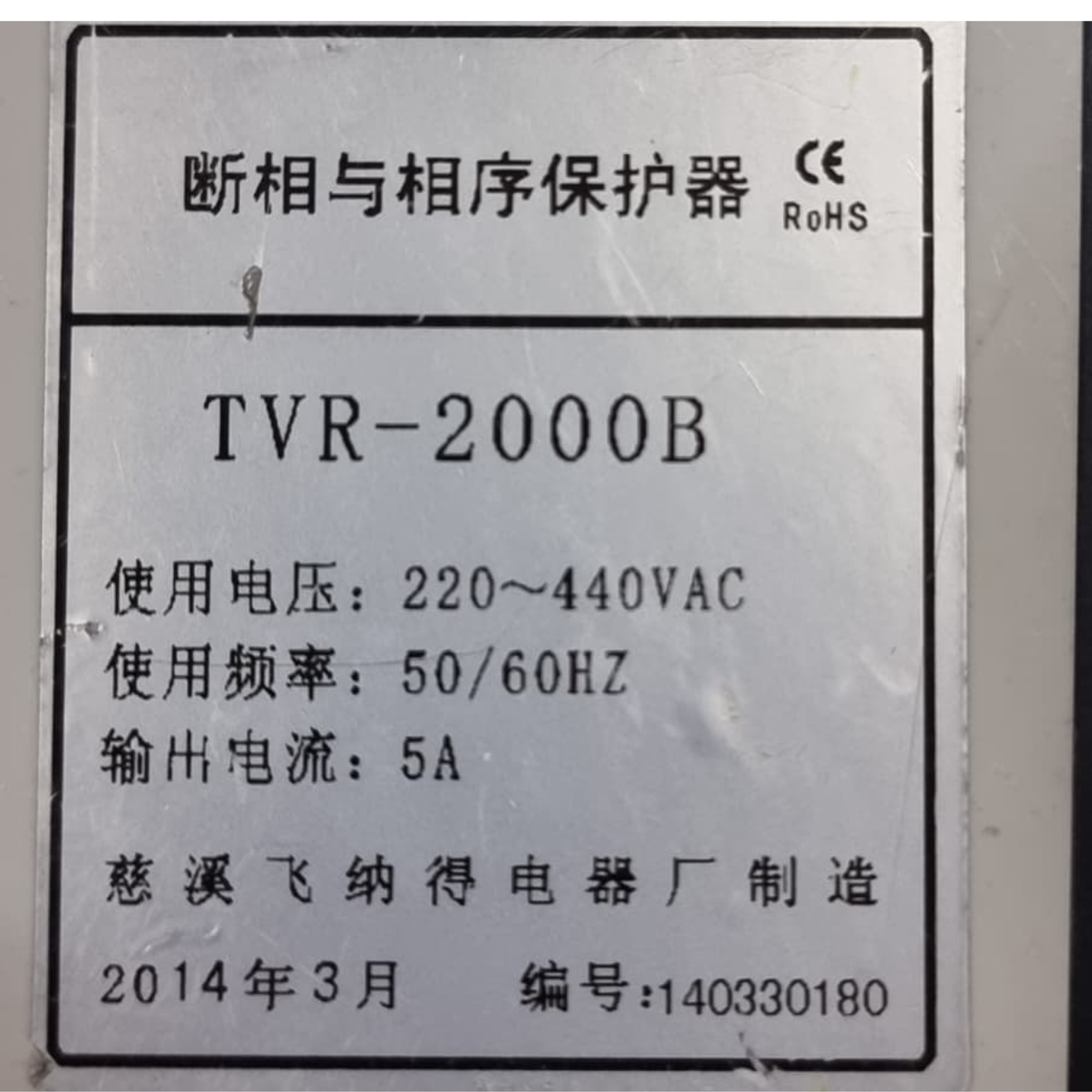

• Brand: Cixi Feinade Electric Appliance Factory (慈溪飞纳得电器厂)
• Product Type: 3-Phase Failure & Phase Sequence Protection Relay
• Model / Part Number: TVR-2000B
• Serial / Batch Number: 140330180
• Date of Manufacture: March 2014
• Industry Category: Industrial Control & Automation / Motor Protection / Low Voltage Switchgear
• Input Voltage: 220–440V AC
• Frequency: 50/60 Hz
• Output Current: 5A
• Input Terminals: L1, L2, L3 (3-phase)
• Output Contact: 1CO — NC / COM / NO

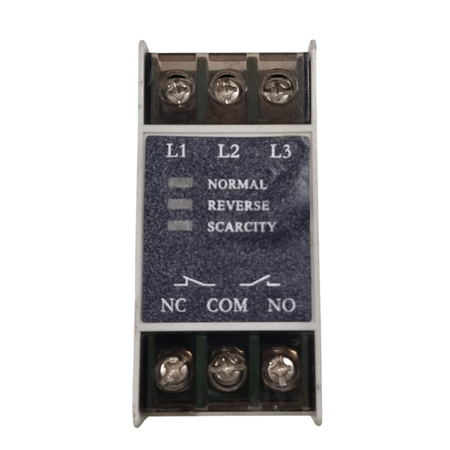

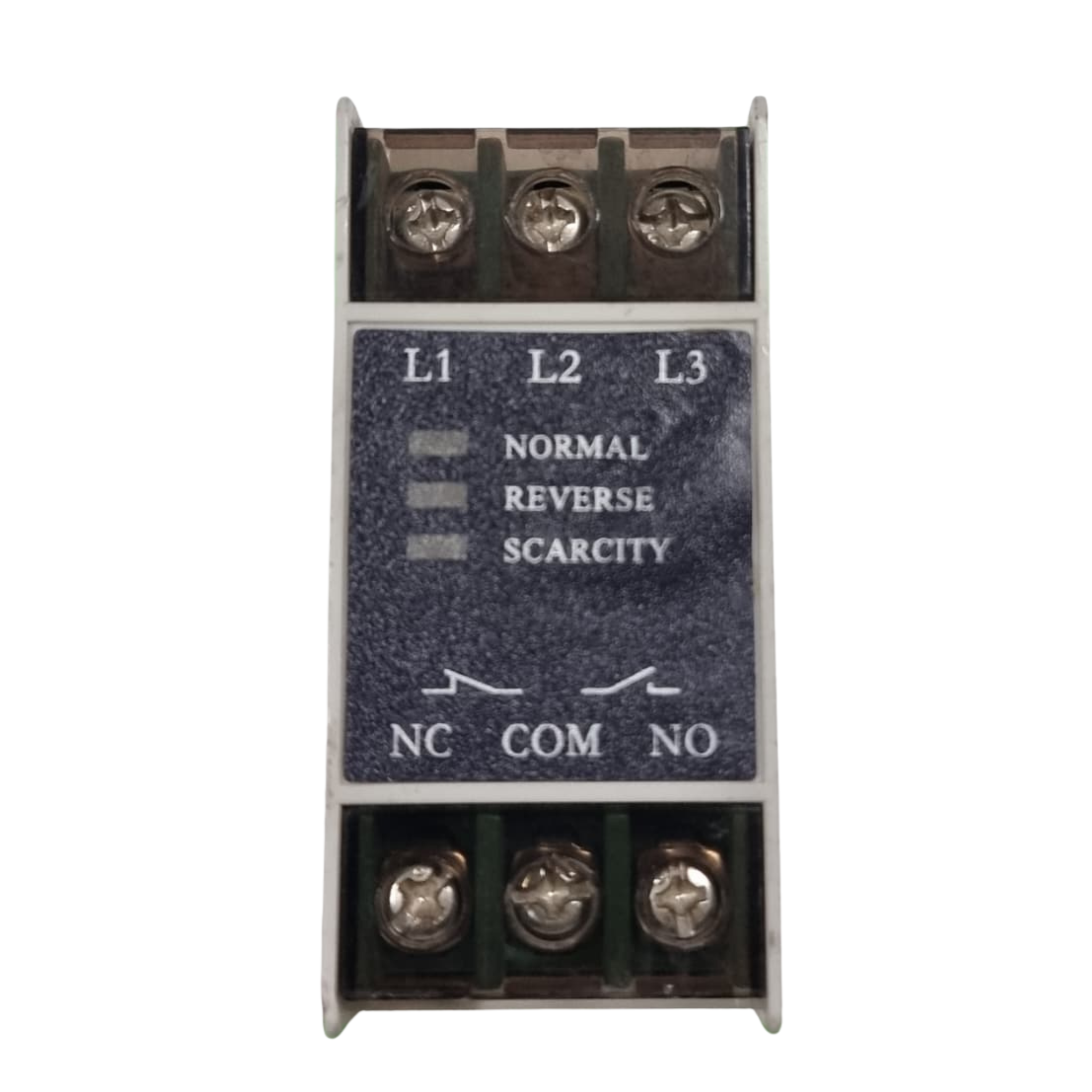

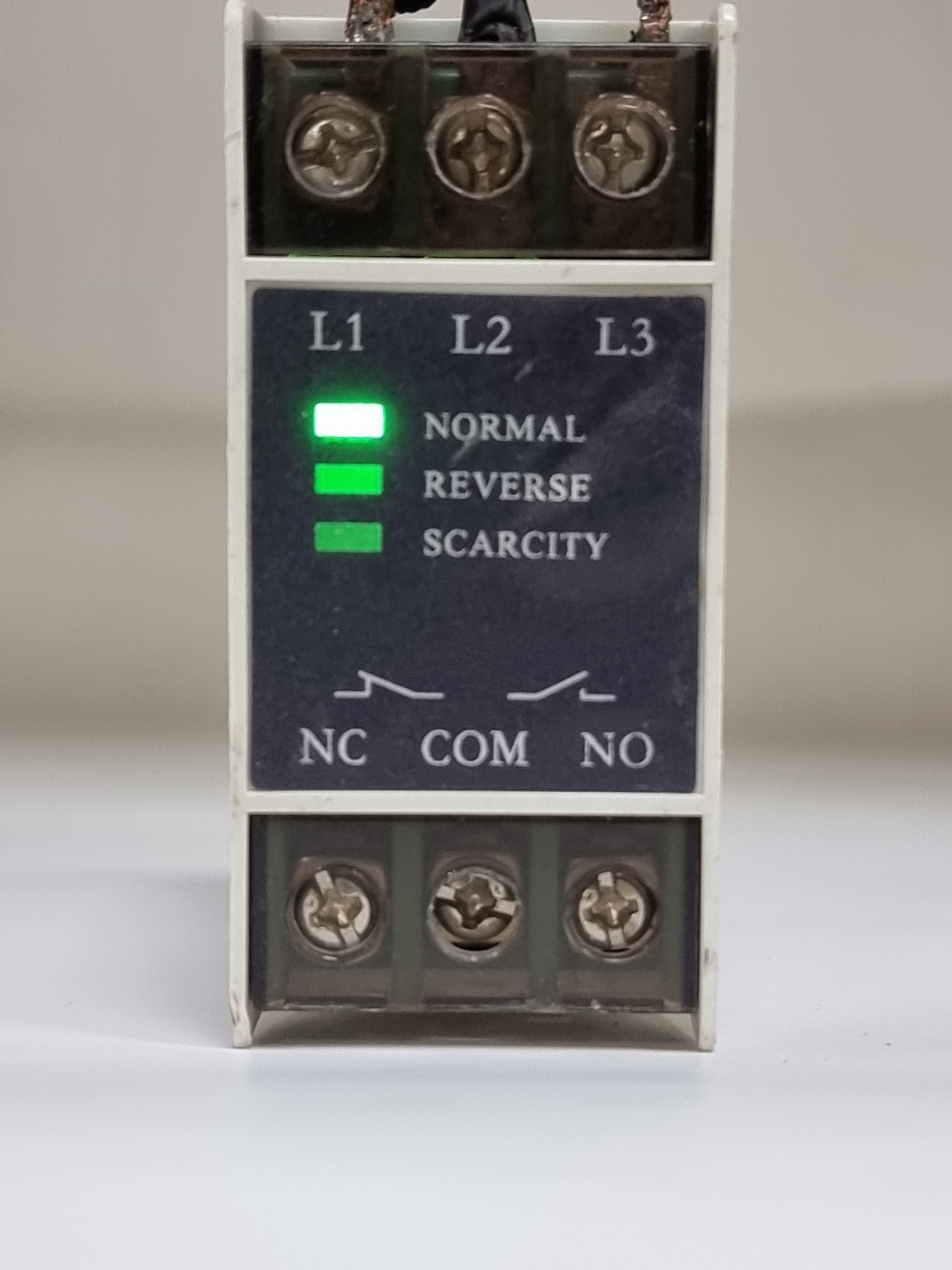

• Status Indicators: Normal (LED) / Reverse (LED) / Scarcity — Phase Loss (LED)
• Protection Functions: Phase failure (loss) / Phase sequence reversal / Phase scarcity
• Power Rating: Available upon request
• Mounting Type: DIN Rail Mount
• Standards / Compliance: CE / RoHS

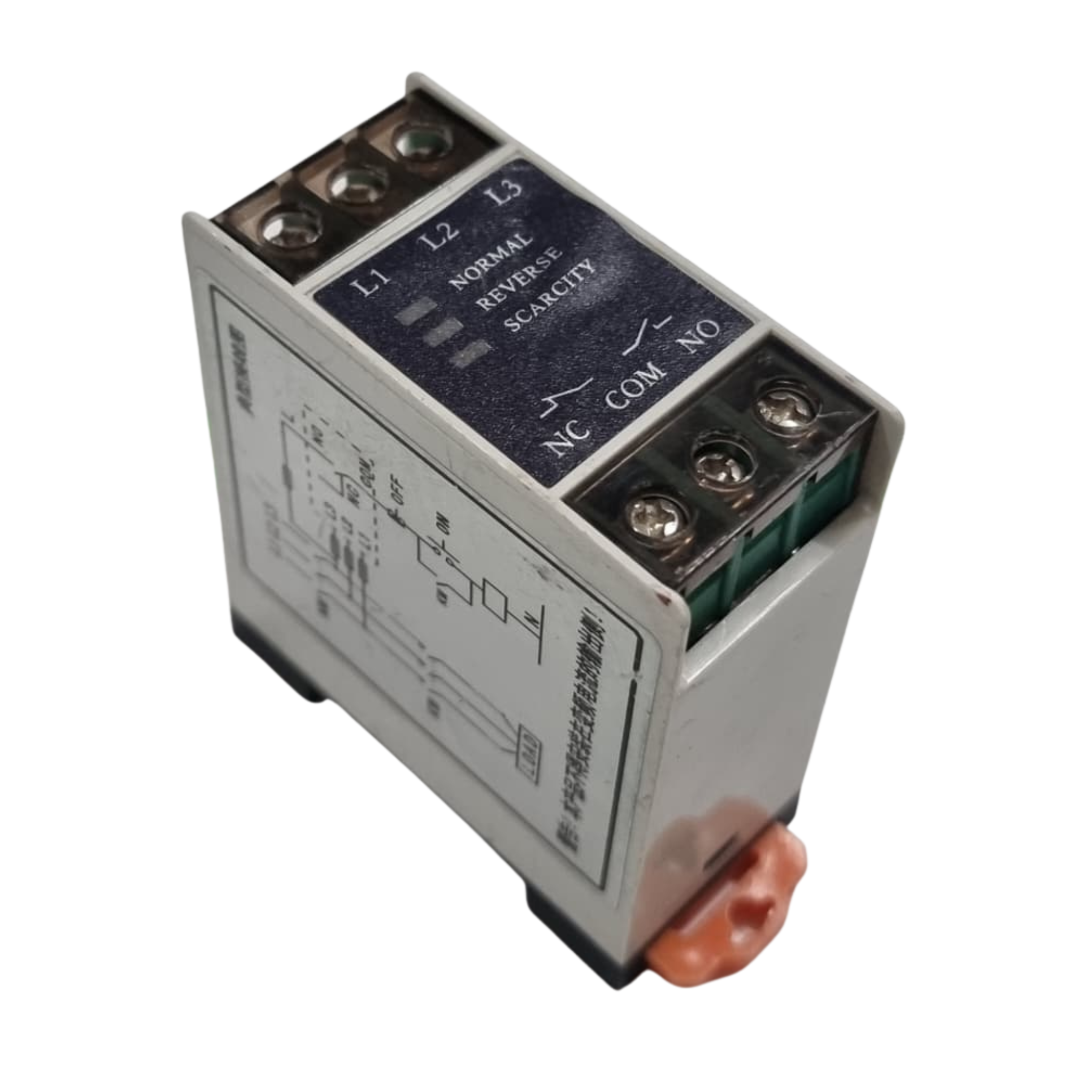

• Other Confirmed Specs: Compact DIN rail body / Screw terminal connections top and bottom

Application:

The Cixi Feinade TVR-2000B is used in motor control centres, pump control panels, HVAC systems, and industrial power distribution boards where three-phase supply quality monitoring is required to protect motors and equipment from phase-related faults. It detects phase loss, incorrect phase sequence (phase reversal), and phase voltage scarcity conditions, triggering its output relay contact to disconnect the load or activate an alarm circuit before motor winding damage or operational failure occurs.

This relay is particularly relevant for MRO replacement in existing motor protection schemes, new panel construction requiring low-cost yet certified phase monitoring solutions, and EPC projects specifying wide-range 220–440V AC protection relays compatible with both 50Hz and 60Hz supply systems. Panel builders, motor protection specialists, and MRO procurement teams sourcing 3-phase protection components across the UAE can access this unit through Industrio.ae's wholesale and surplus industrial supply inventory.

Cixi Feinade TVR-2000B phase failure and phase sequence protection relay is available through Industrio.ae, a UAE-based distributor of industrial control and motor protection components serving panel builders, EPC contractors, motor control system integrators, and MRO procurement teams across Dubai and the wider GCC region. Buyers sourcing 3-phase protection relays in wholesale quantities or for project and maintenance stock requirements can contact Industrio.ae directly for pricing and availability.

Metafields:

• brand: Cixi Feinade Electric Appliance Factory
• part_number: TVR-2000B
• serial_number: 140330180
• date_of_manufacture: March 2014
• product_type: 3-Phase Failure & Phase Sequence Protection Relay
• industry_category: Industrial Control & Automation / Motor Protection / Low Voltage Switchgear
• voltage_rating: 220–440V AC (input)
• current_rating: 5A (output contact)
• power_rating: Available upon request
• input_voltage: 220–440V AC
• output_voltage: Available upon request
• mounting_type: DIN Rail Mount
• standards: CE / RoHS
• condition: Available upon request
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used

Tested✅
