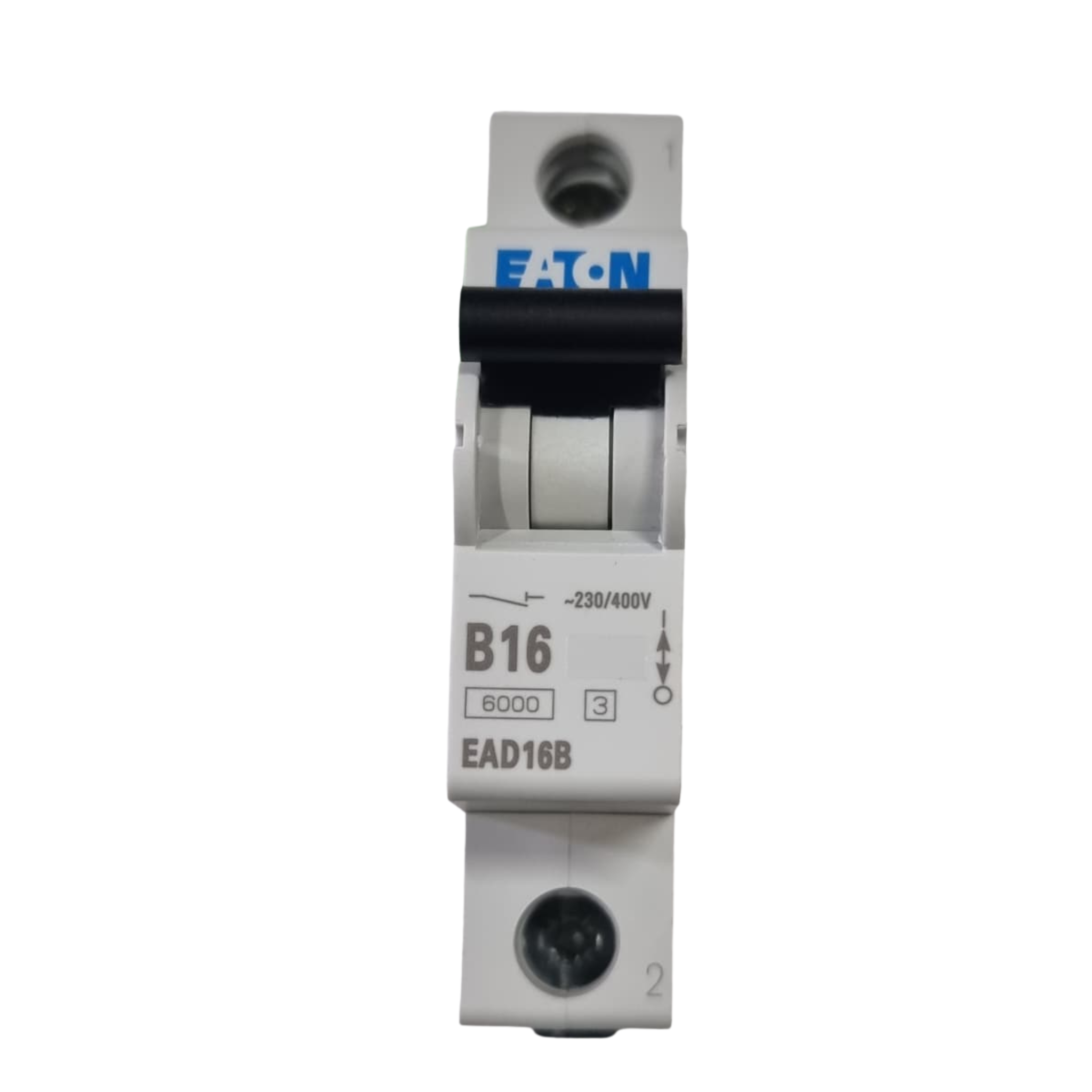

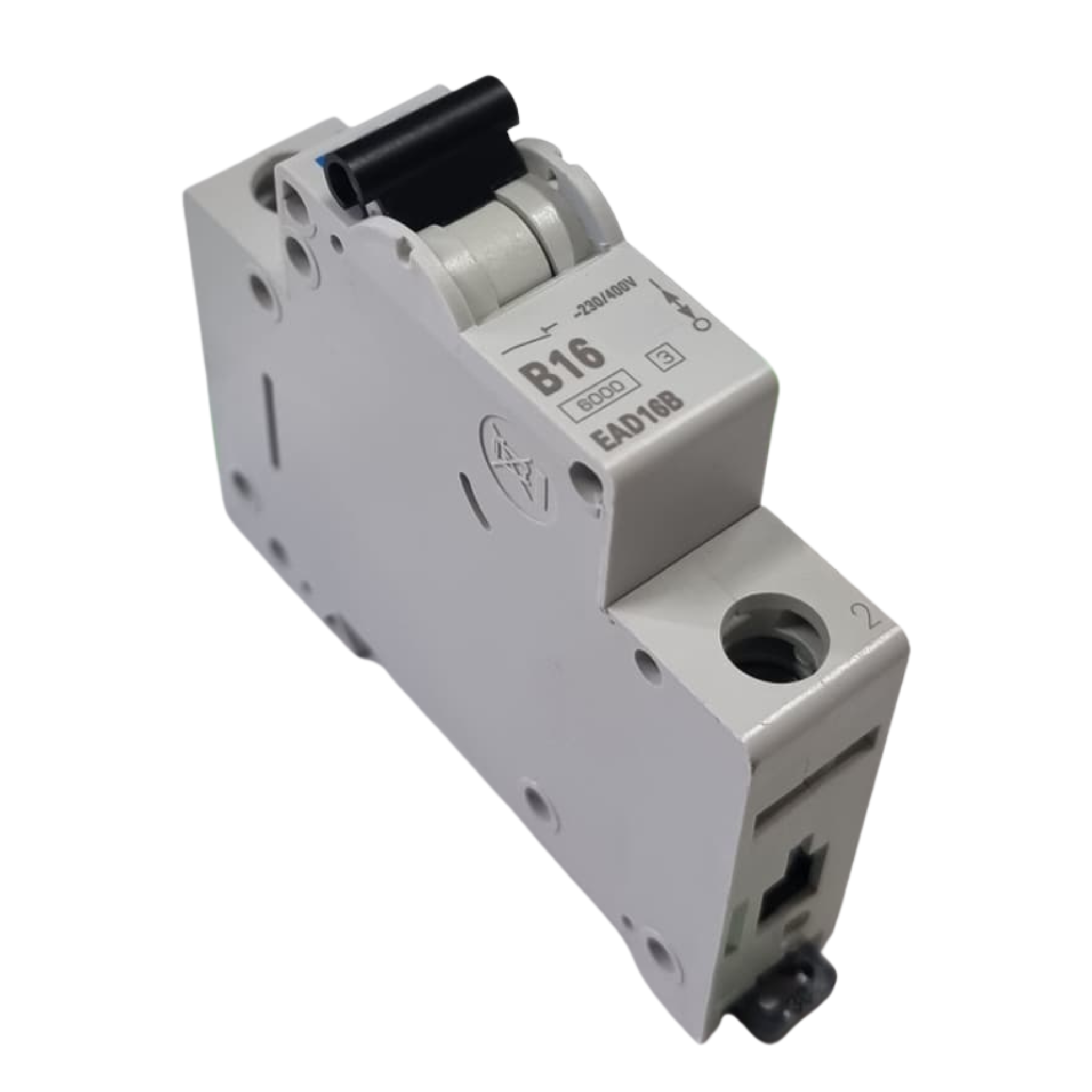

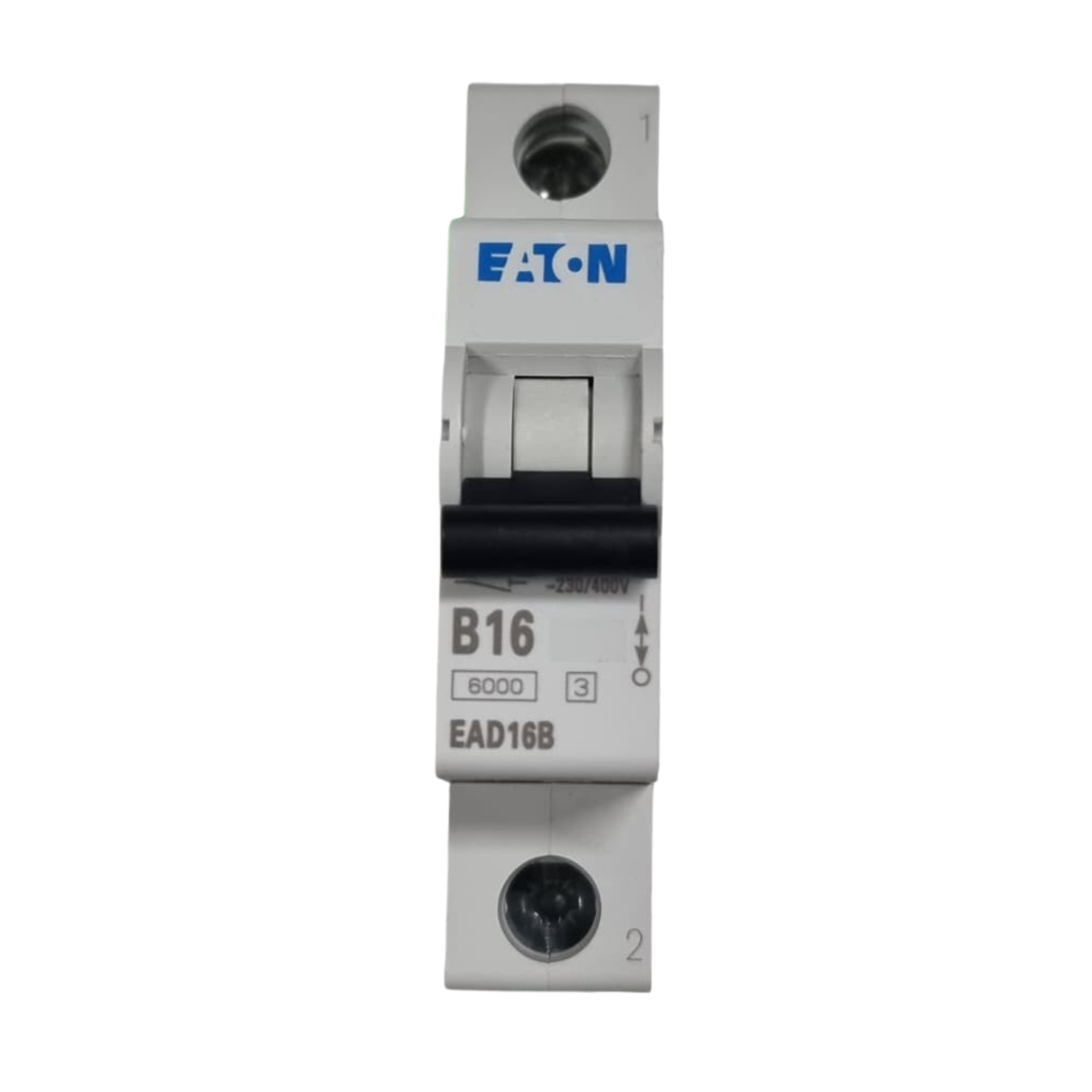

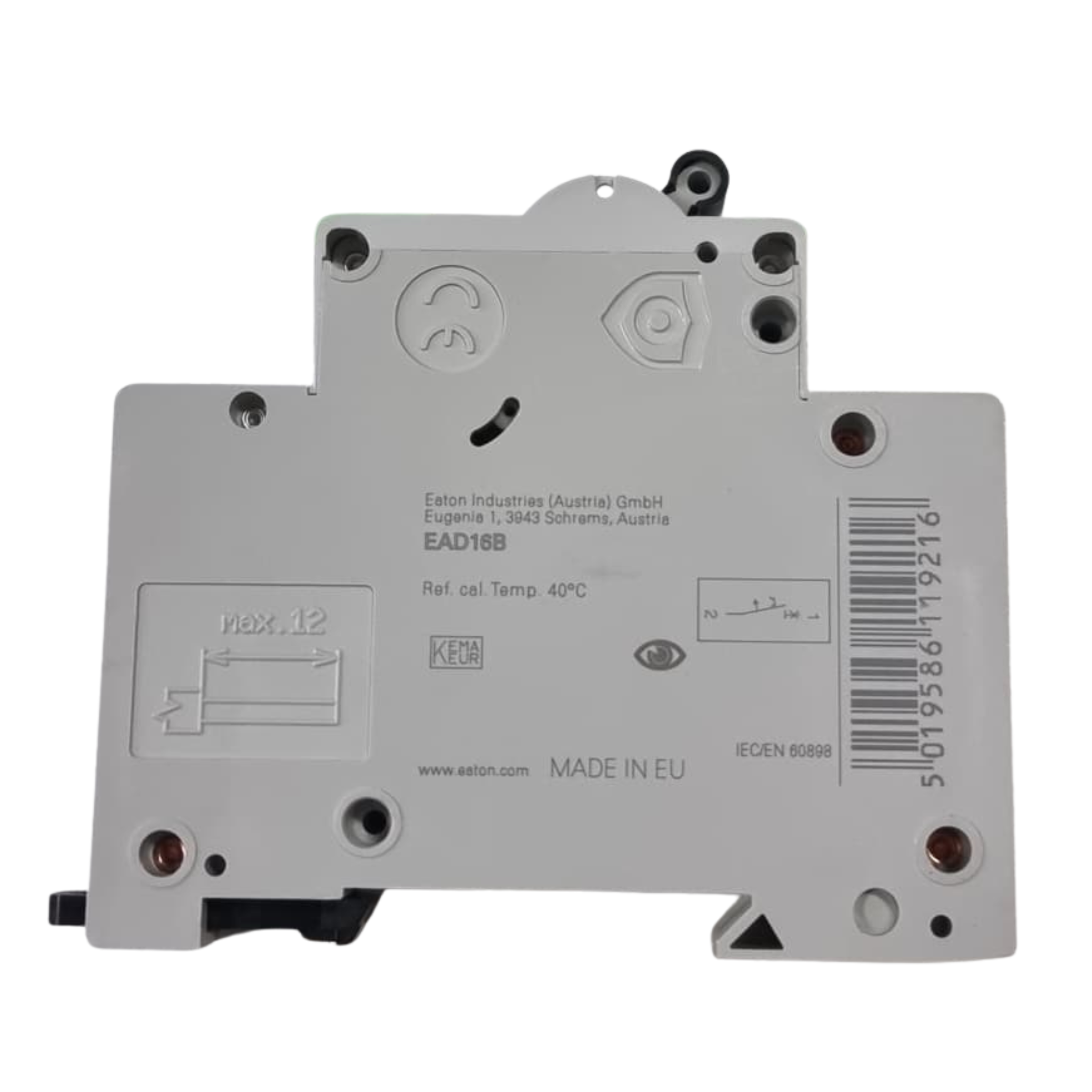

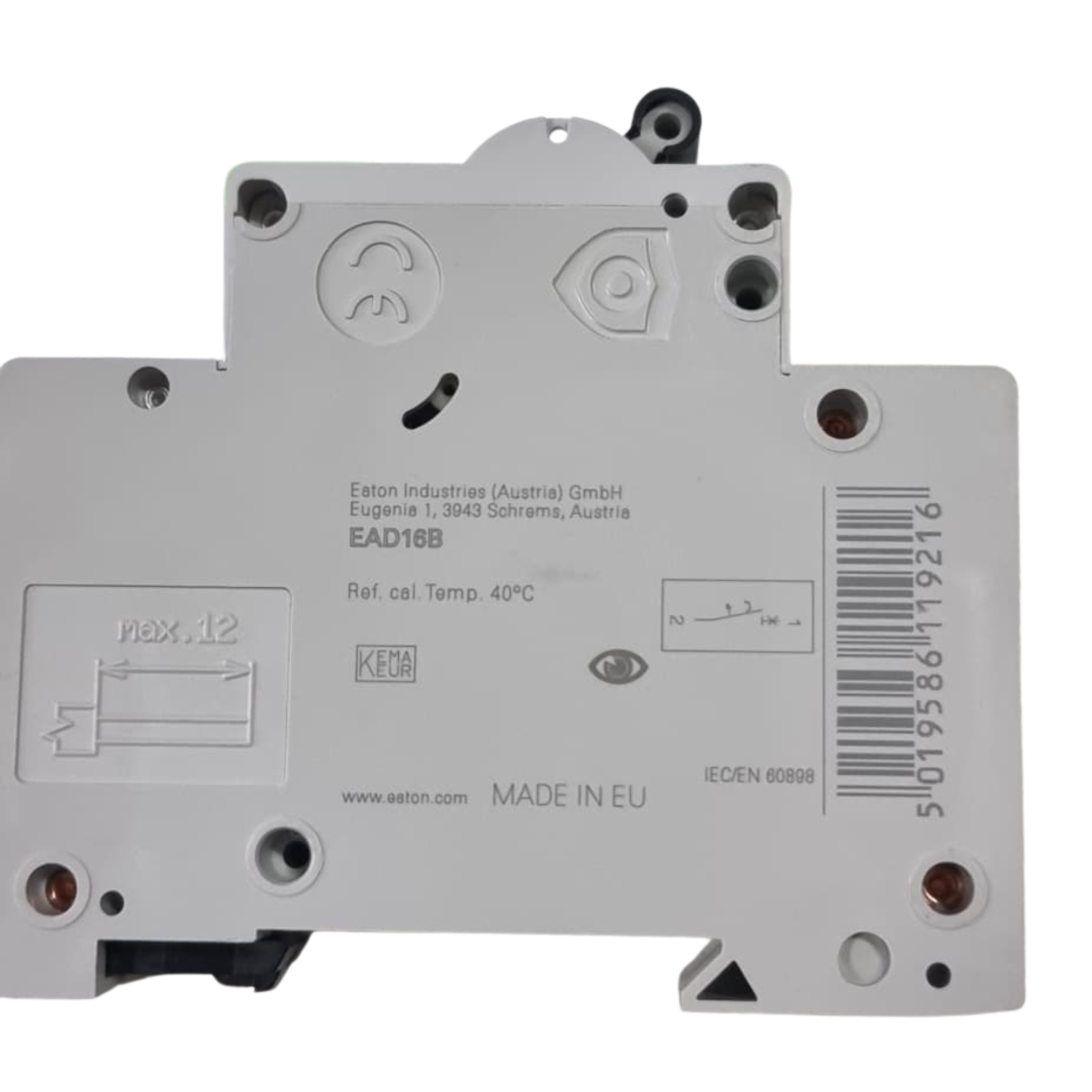

Eaton EAD16B Circuit Breaker 16A 230/400V 1-Pole

Description:

The Eaton EAD16B is a single-pole miniature circuit breaker rated at 16A with a Type B trip curve, providing overcurrent and short-circuit protection at 230/400V AC with a 6kA breaking capacity per IEC/EN 60898. Calibrated at a reference temperature of 40°C and accepting conductor sizes up to 12mm², it is designed for residential, commercial, and light industrial distribution boards where precise, low-threshold fault protection is required.

The Type B trip characteristic is suited for purely resistive loads, long cable runs, and circuits with minimal inrush current, making the EAD16B a preferred choice for socket outlet circuits, lighting distribution, and general cable protection applications. Its compact single-module DIN rail format integrates cleanly alongside other protective devices in standard panel assemblies.

Industrio.ae supplies Eaton circuit protection devices from verified surplus stock to procurement teams, panel builders, and MRO buyers across the UAE, supporting reliable sourcing for both scheduled maintenance and new panel build requirements.

Technical Specifications:

• Brand: Eaton (Eaton Industries Austria GmbH)
• Product Type: Single-Pole Miniature Circuit Breaker (MCB)
• Part Number: EAD16B
• Industry Category: Electrical Protection / Circuit Breakers / Building & Industrial Power Distribution
• Rated Current (In): 16A
• Trip Curve: B
• Number of Poles: 1
• Rated Voltage: 230/400V AC
• Breaking Capacity (Icn): 6kA — IEC/EN 60898
• Breaking Capacity Class: 6000
• Reference Calibration Temperature: 40°C
• Max. Conductor Size: 12mm²
• Handle Colour: Black
• Standards / Compliance: IEC/EN 60898 / KEMA-KEUR / CE
• Mounting Type: 35mm DIN rail
• Origin: Made in EU
• Other Confirmed Specs: Available upon request

Application:

The Eaton EAD16B single-pole MCB is used in residential distribution boards, commercial panel assemblies, and light industrial installations for the protection of final circuits and cable runs against overcurrent and short-circuit faults at 16A on 230/400V AC systems. Its Type B trip curve is specified for resistive load circuits including lighting, socket outlets, and general cable protection applications where low inrush currents are present and sensitive tripping response is required. The 40°C calibration temperature supports deployment in enclosed panel environments typical of building services and light industrial installations. This MCB is regularly procured as an MRO replacement or new panel build component by electrical contractors, panel builders, and procurement engineers across the UAE and Gulf region.

Electrical procurement teams and panel builders sourcing the Eaton EAD16B single-pole 16A Curve B MCB will find verified surplus stock available through Industrio.ae, a UAE-based electrical and industrial components supplier serving EPC contractors, MRO buyers, and distributors across Dubai and the wider Gulf region. As a wholesale source for Eaton circuit breakers and MCBs in the UAE, Industrio.ae supports both single-unit and bulk procurement of IEC 60898-certified protective devices with competitive stock availability.

Metafields:

• brand: Eaton
• part_number: EAD16B
• product_type: Single-Pole Miniature Circuit Breaker (MCB)
• industry_category: Electrical Protection / Circuit Breakers / Building & Industrial Power Distribution
• rated_current: 16A
• trip_curve: B
• number_of_poles: 1
• rated_voltage: 230/400V AC
• breaking_capacity_icn: 6kA (IEC/EN 60898)
• breaking_capacity_class: 6000
• calibration_temperature: 40°C
• max_conductor_size: 12mm²
• handle_colour: Black
• standards: IEC/EN 60898 / KEMA-KEUR / CE
• mounting_type: 35mm DIN rail
• origin: Made in EU
• condition: Used / Surplus Stock
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used
