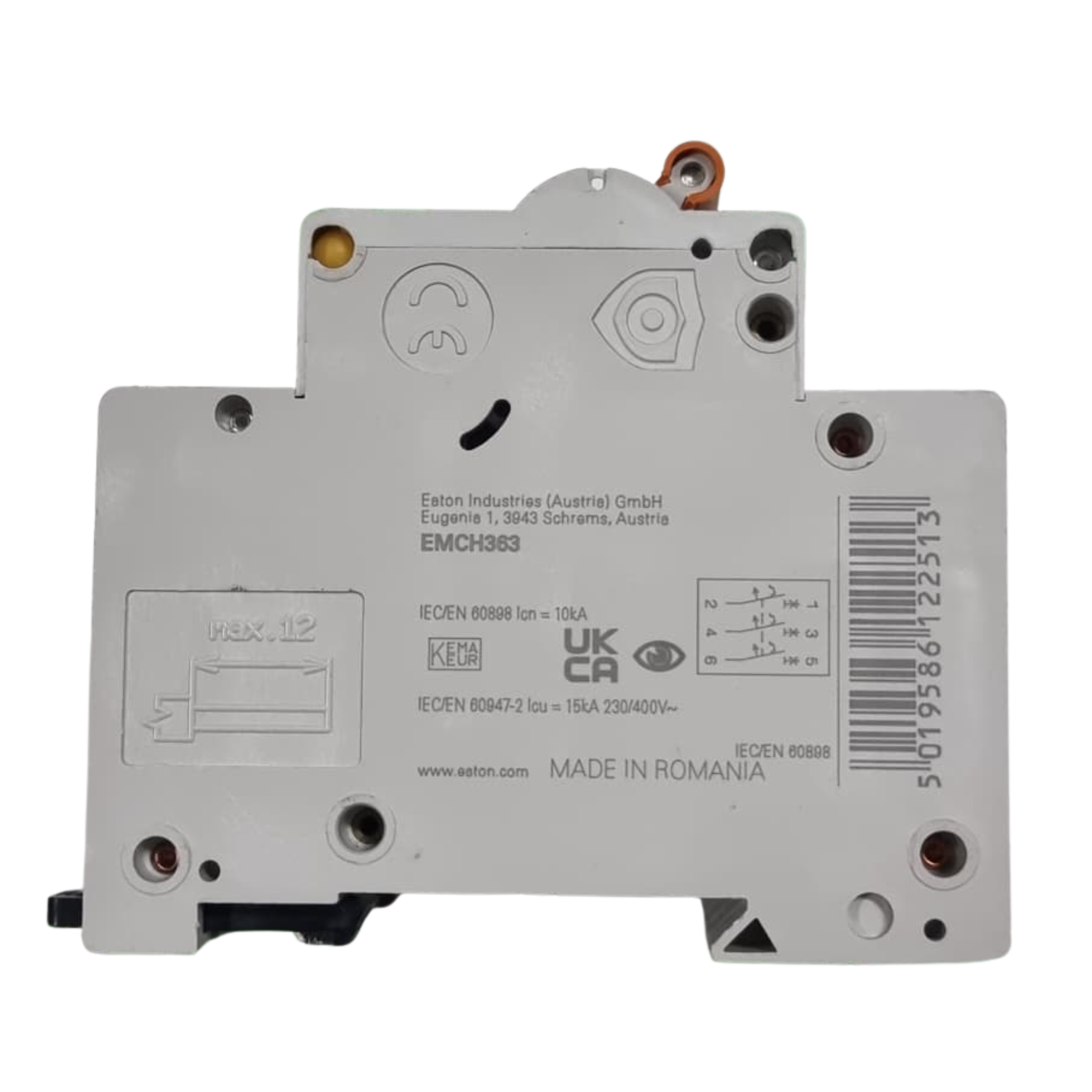

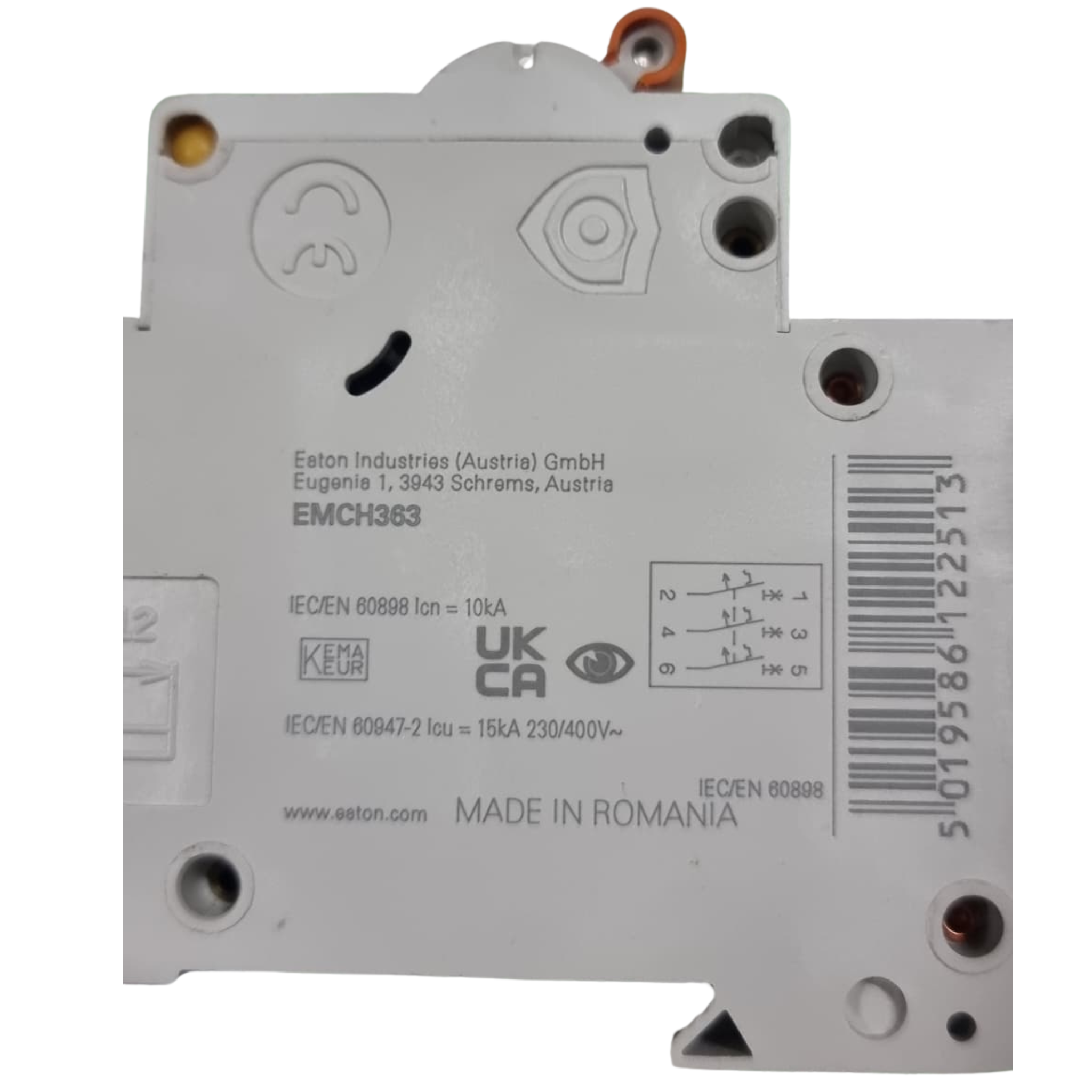

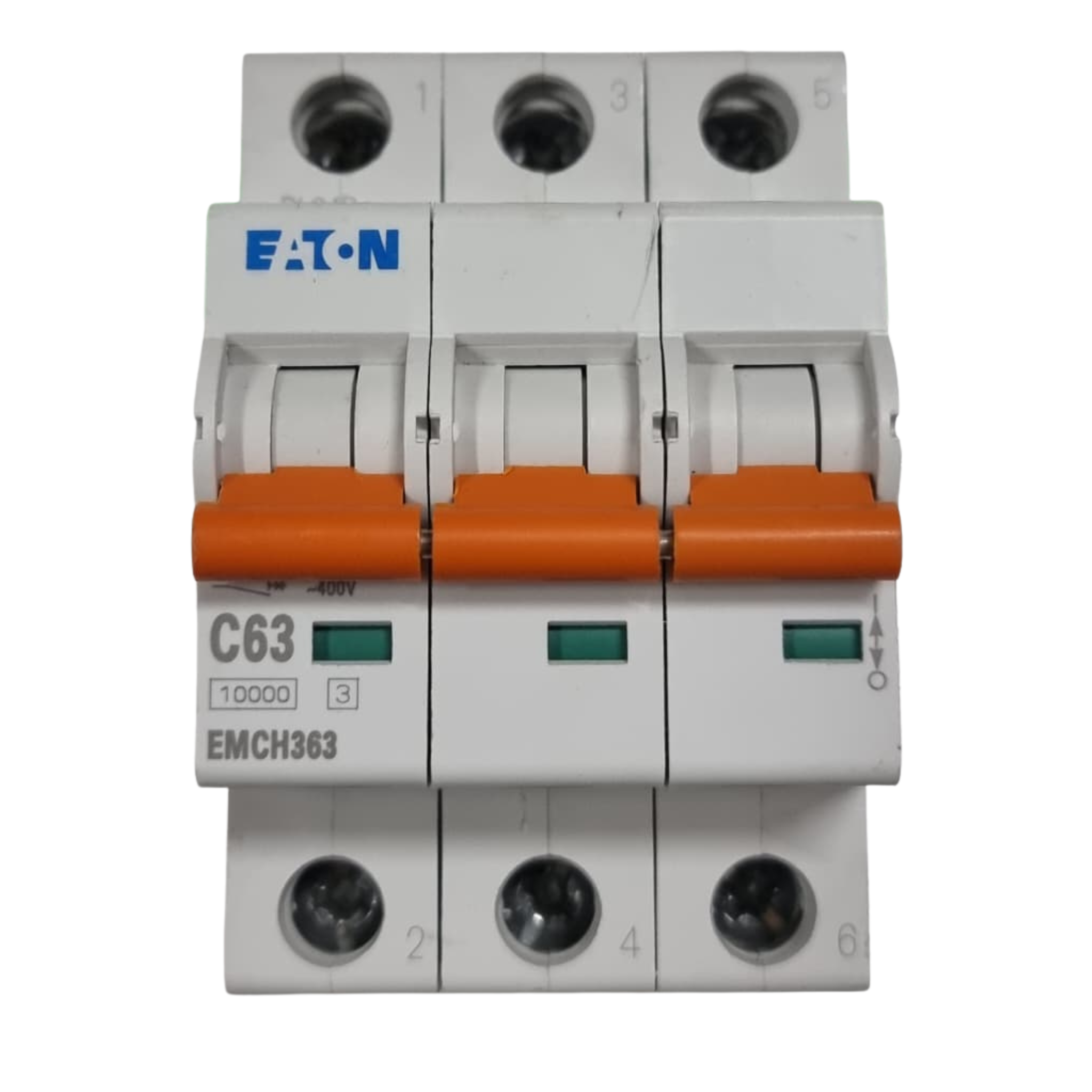

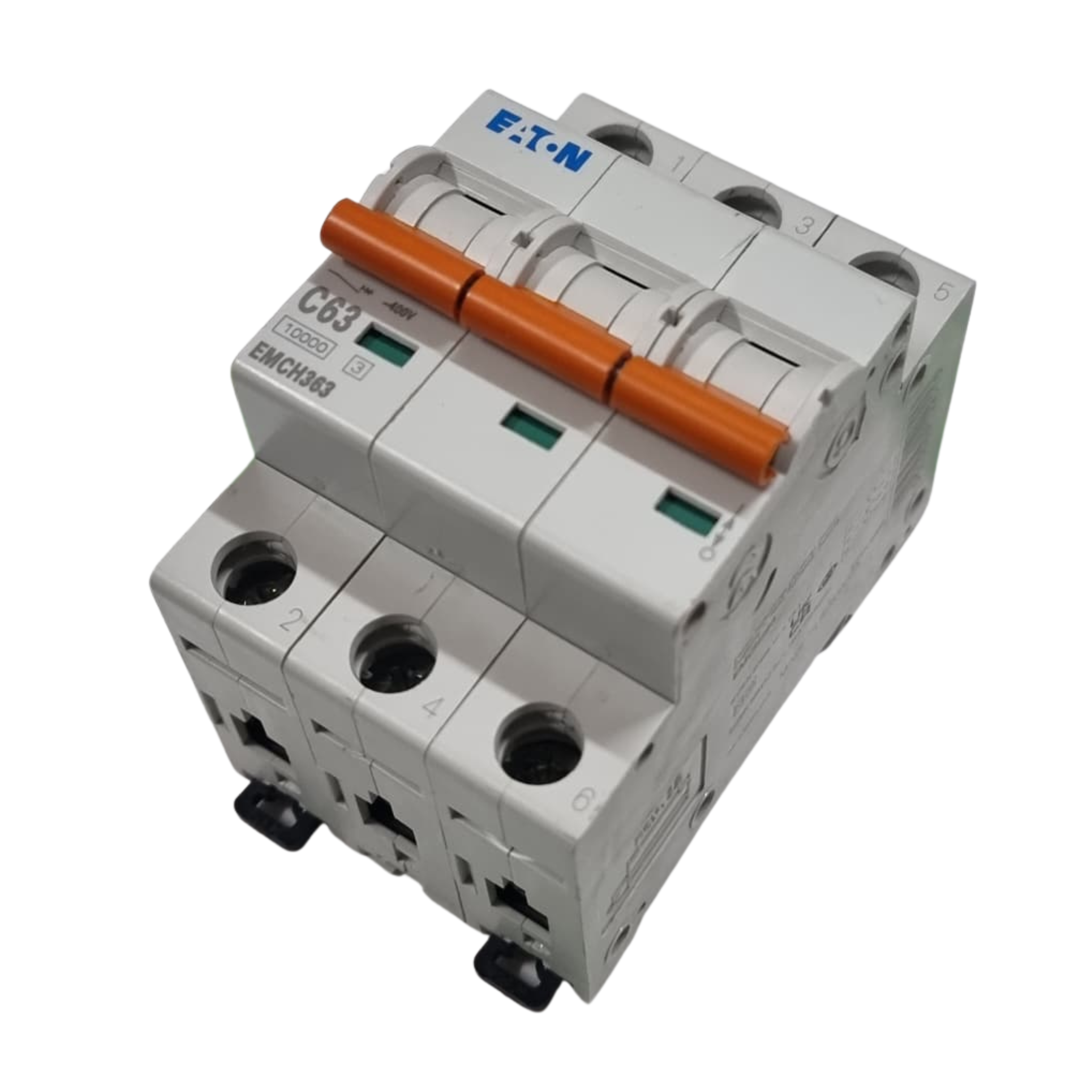

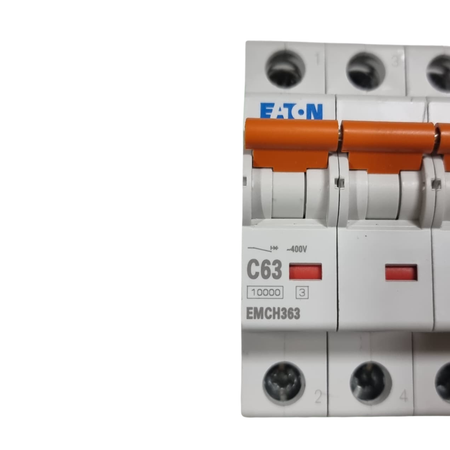

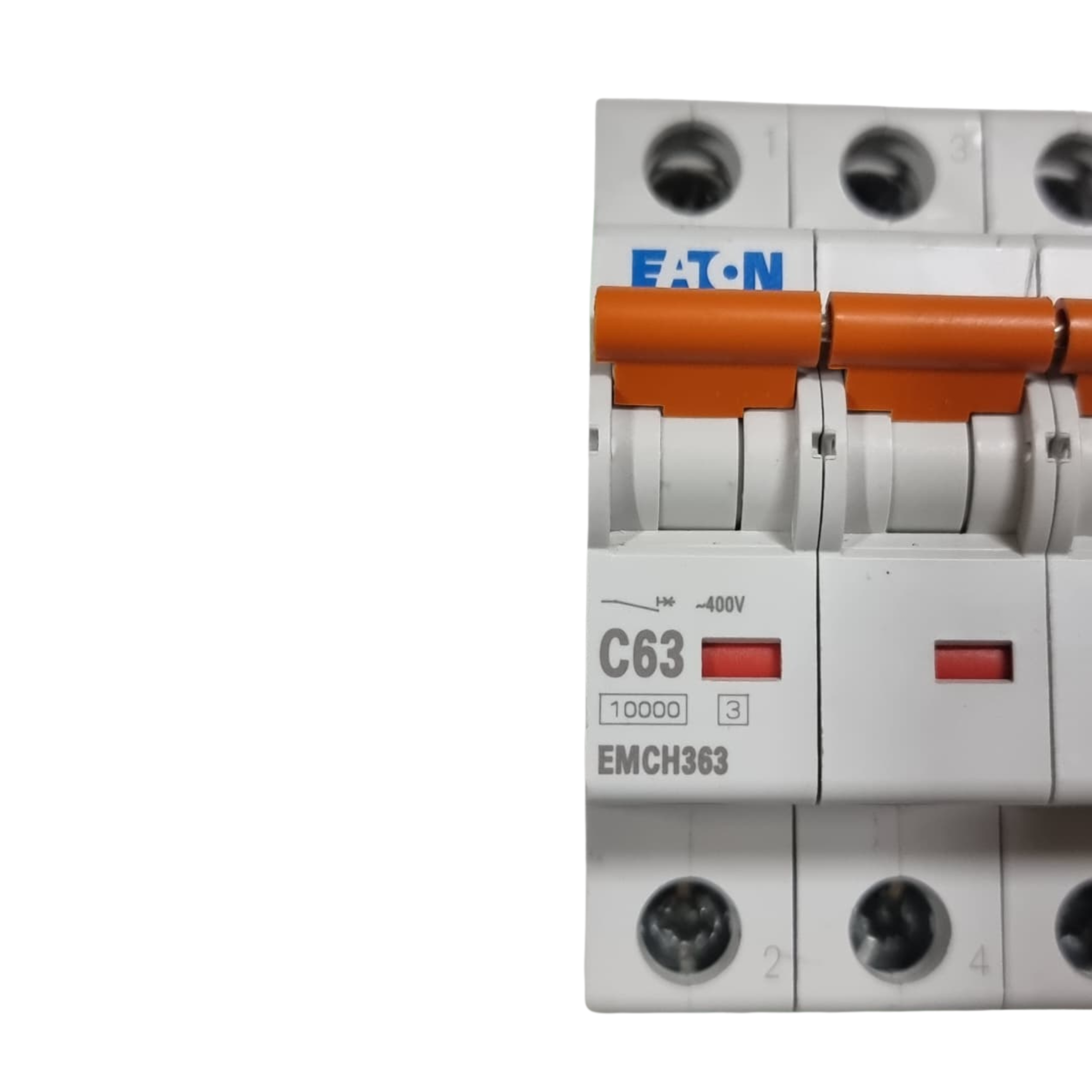

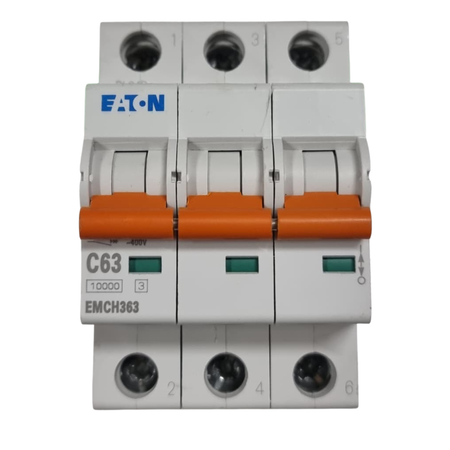

Eaton EMCH363 Circuit Breaker 63A 400V 3-Pole

Description:

The Eaton EMCH363 is a three-pole miniature circuit breaker rated at 63A with a Type C trip curve, providing overcurrent and short-circuit protection on 400V AC three-phase distribution systems. With a breaking capacity of 10kA per IEC/EN 60898 and an ultimate breaking capacity of 15kA per IEC/EN 60947-2, it is well suited for industrial sub-distribution boards, motor feeder circuits, and three-phase panel applications where robust fault current interruption is required.

Each pole features an individual red trip indicator for rapid fault identification, and the distinctive orange handle provides clear visual differentiation in panel assemblies. Certified to IEC/EN 60898, IEC/EN 60947-2, KEMA/KEUR, and UKCA, the EMCH363 meets international procurement specifications for industrial electrical installations.

Industrio.ae supplies Eaton circuit protection devices from verified surplus stock, providing UAE-based procurement teams, panel builders, and EPC contractors with reliable access to certified MCBs for both MRO replacement and project panel build requirements.

Technical Specifications:

• Brand: Eaton (Eaton Industries Austria GmbH)
• Product Type: Three-Pole Miniature Circuit Breaker (MCB)
• Part Number: EMCH363
• Industry Category: Electrical Protection / Circuit Breakers / Industrial Power Distribution
• Rated Current (In): 63A
• Trip Curve: C
• Number of Poles: 3
• Rated Voltage: 400V AC
• Breaking Capacity (Icn): 10kA — IEC/EN 60898
• Ultimate Breaking Capacity (Icu): 15kA @ 230/400V — IEC/EN 60947-2
• Breaking Capacity Class: 10000

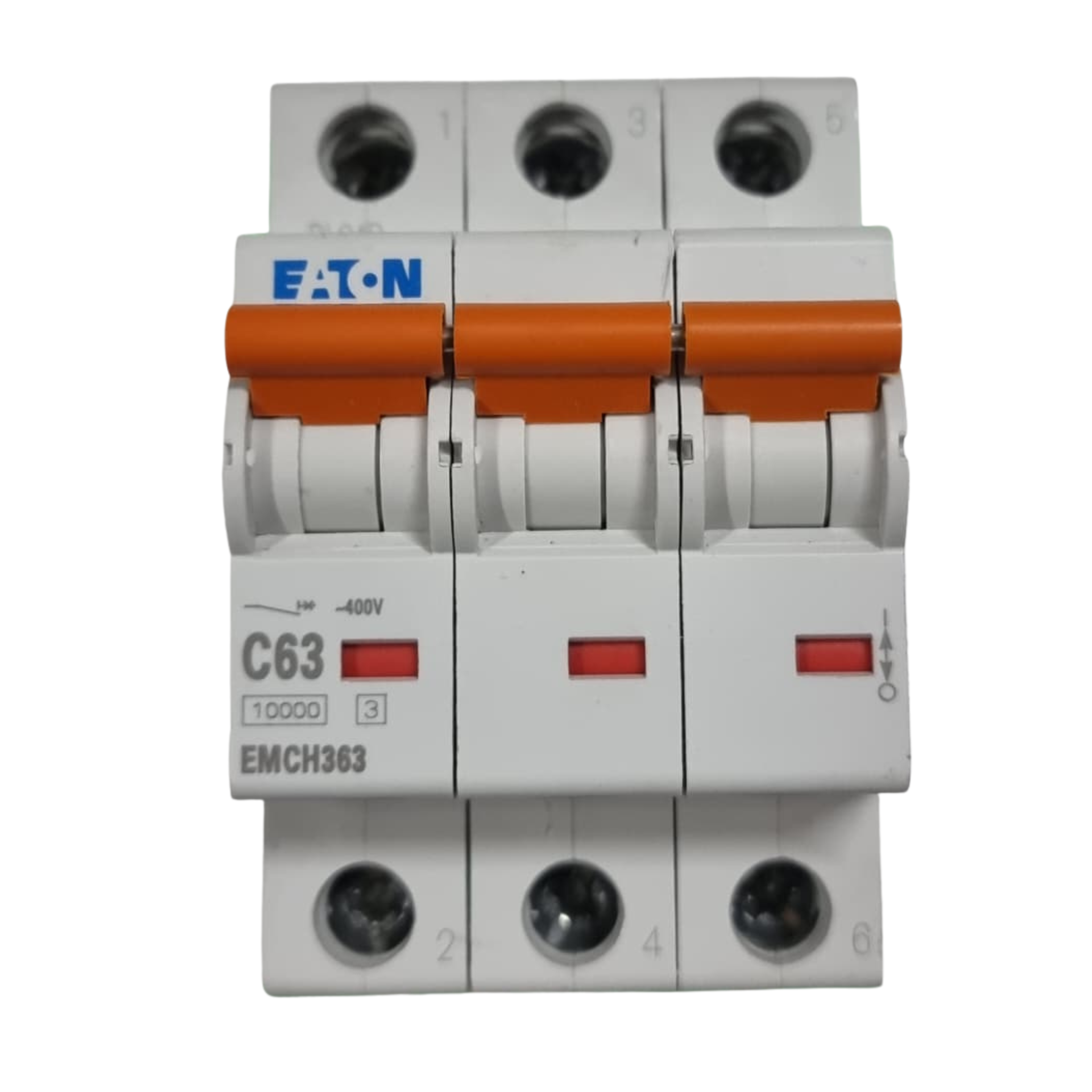

• Trip Indicators: 3 x Red window (one per pole)
• Handle Colour: Orange
• Standards / Compliance: IEC/EN 60898 / IEC/EN 60947-2 / KEMA-KEUR / UKCA
• Mounting Type: 35mm DIN rail
• Origin: Made in Romania
• Other Confirmed Specs: Available upon request

Application:

The Eaton EMCH363 3-pole MCB is used in three-phase industrial distribution boards, motor control panels, sub-distribution assemblies, and commercial electrical installations requiring 63A overcurrent and short-circuit protection at 400V AC. Its Type C trip characteristic accommodates moderate inrush currents associated with motor loads, transformer secondary circuits, and mixed industrial loads, making it a standard specification for MCC panels and three-phase distribution enclosures. The 15kA ultimate breaking capacity under IEC/EN 60947-2 supports deployment in higher fault-level industrial distribution environments. This MCB is regularly procured as an MRO replacement or new panel build component by electrical contractors, panel builders, and procurement engineers across industrial and infrastructure sectors in the UAE and Gulf region.

Electrical procurement teams and panel builders sourcing the Eaton EMCH363 three-pole 63A Curve C MCB will find verified surplus stock available through Industrio.ae, a UAE-based electrical and industrial components supplier serving EPC contractors, MRO buyers, and distributors across Dubai and the wider Gulf region. As a wholesale source for Eaton circuit breakers and protective devices in the UAE, Industrio.ae supports both single-unit and bulk procurement of IEC 60898 and IEC 60947-2 certified three-phase MCBs with competitive stock availability.

Metafields:

• brand: Eaton
• part_number: EMCH363
• product_type: Three-Pole Miniature Circuit Breaker (MCB)
• industry_category: Electrical Protection / Circuit Breakers / Industrial Power Distribution
• rated_current: 63A
• trip_curve: C
• number_of_poles: 3
• rated_voltage: 400V AC
• breaking_capacity_icn: 10kA (IEC/EN 60898)
• breaking_capacity_icu: 15kA @ 230/400V (IEC/EN 60947-2)
• breaking_capacity_class: 10000
• trip_indicators: 3 x Red window
• handle_colour: Orange
• standards: IEC/EN 60898 / IEC/EN 60947-2 / KEMA-KEUR / UKCA
• mounting_type: 35mm DIN rail
• origin: Made in Romania
• condition: Used / Surplus Stock
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used
