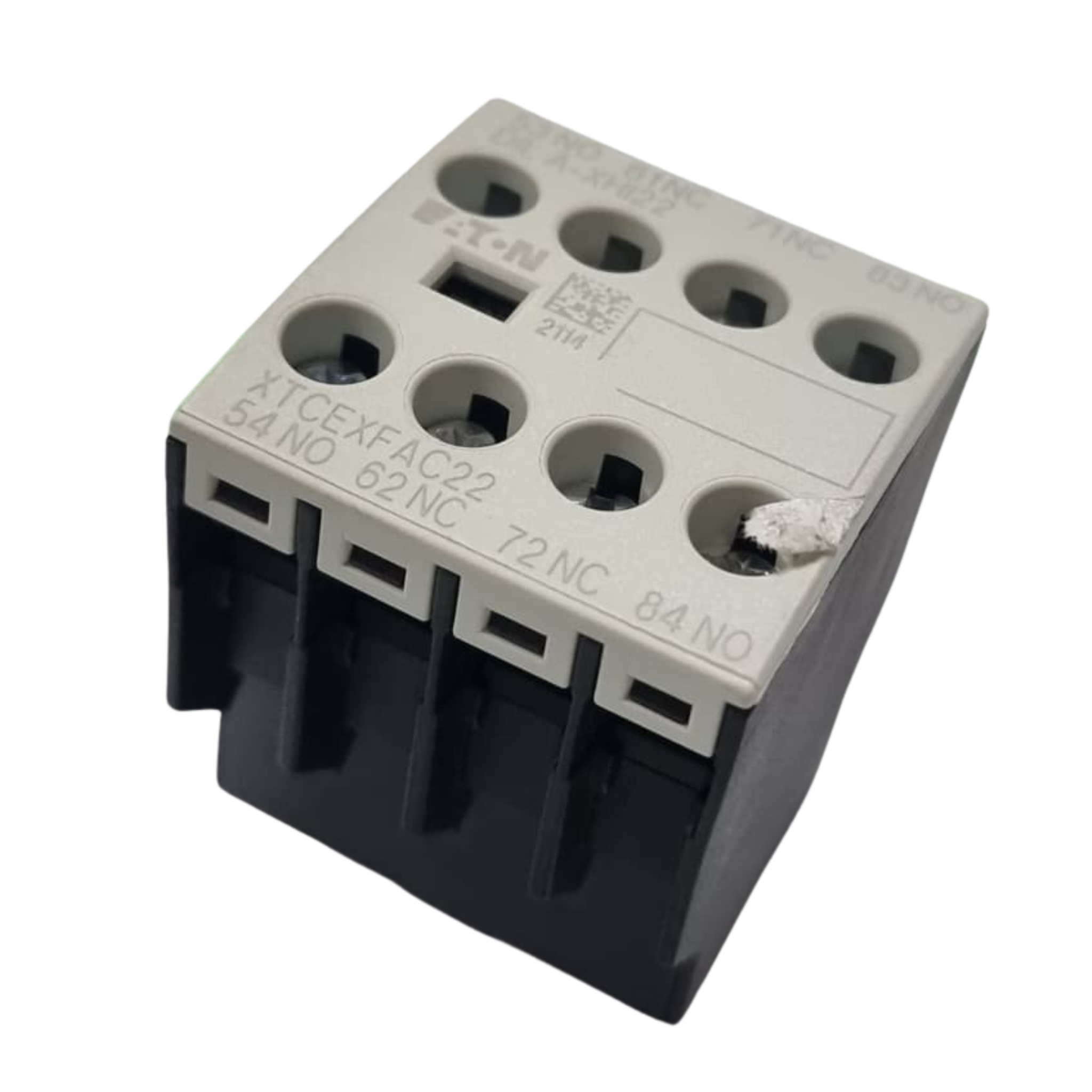

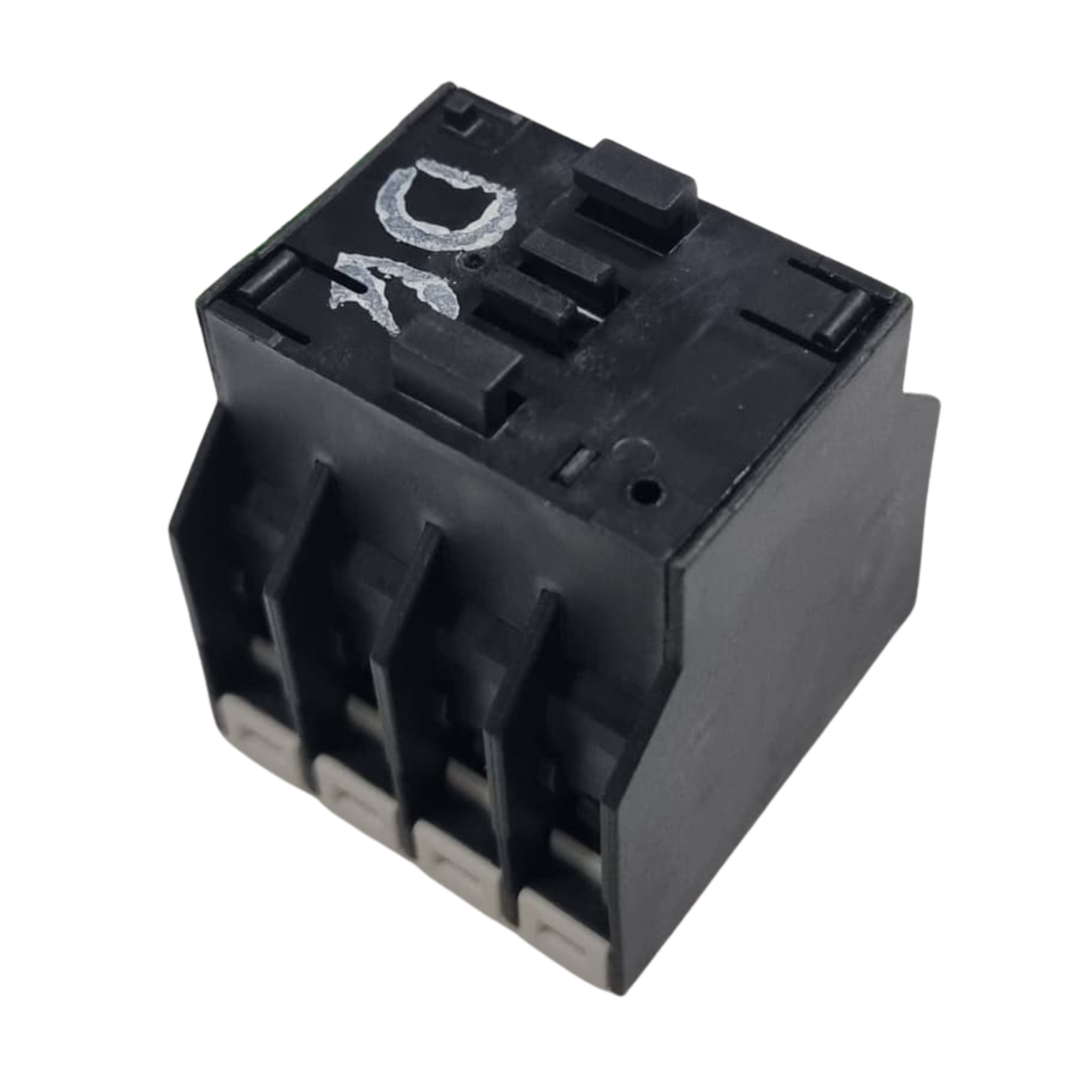

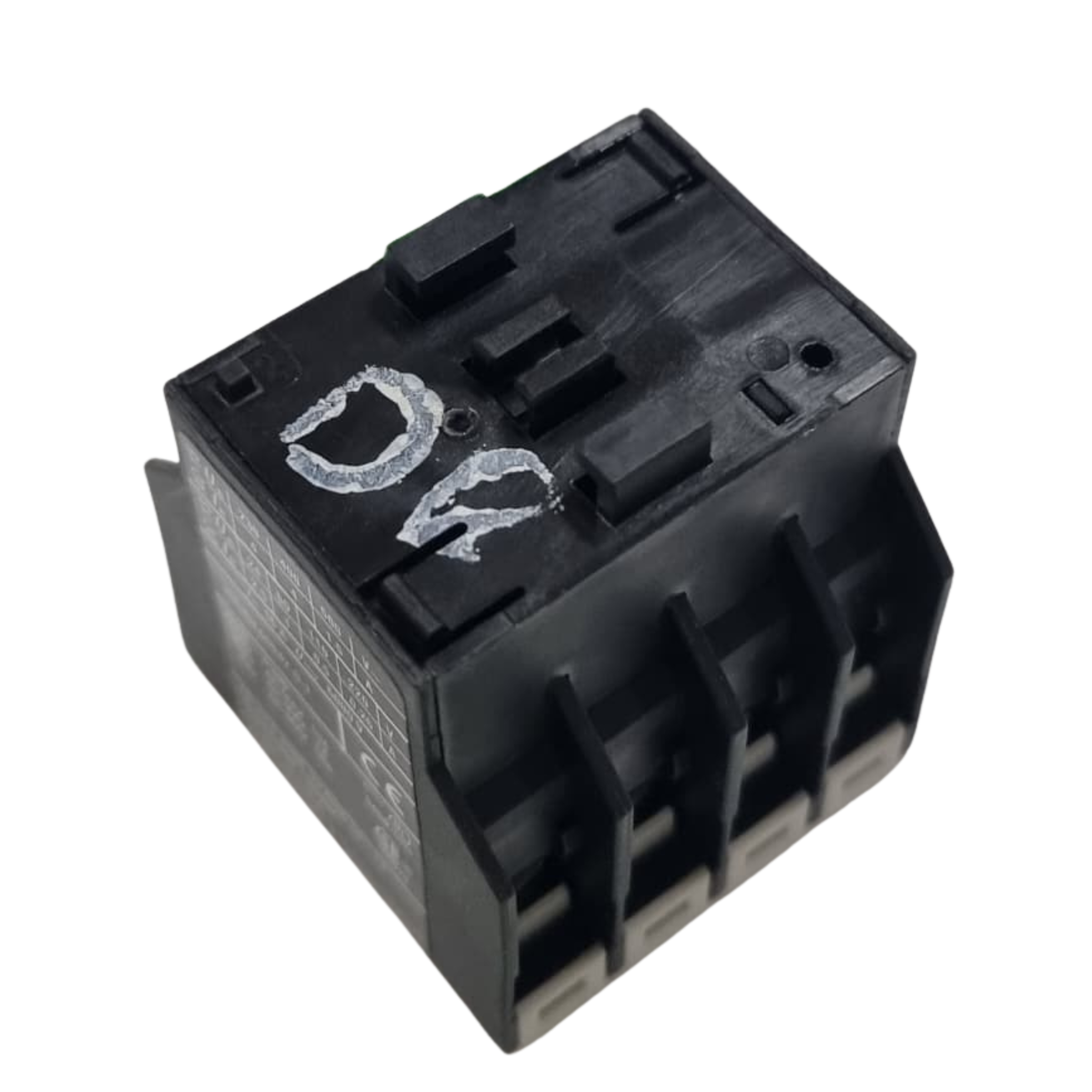

Eaton Moeller DILA-XHI22 Auxiliary Contact Block XTCEXFAC22

Description:

The Eaton Moeller DILA-XHI22 (cross-reference: XTCEXFAC22) is a front-mounting auxiliary contact block with a 2NO + 2NC contact configuration, designed for use with Eaton DILA and compatible contactor series in industrial motor control and switchgear applications. Rated to IEC/EN 60947-5-1 with CE, UL, and CSA certification, this auxiliary block delivers a thermal current of 16A and an impulse withstand voltage of 6000V, making it suitable for demanding control circuit applications. With AC-15 ratings up to 600V and DC-13 capability down to 24V, it serves a wide range of control panel signalling, interlocking, and feedback circuit requirements. Industrio.ae stocks wholesale and surplus Eaton Moeller switchgear accessories across UAE, supporting panel builders, EPC contractors, and MRO procurement teams requiring fast access to verified original components. Suitable for new panel builds, contactor upgrades, and direct replacement in existing motor control centres.

Technical Specifications:

Brand: Eaton (Moeller Series)
Product Type: Front-Mounting Auxiliary Contact Block
Part Number: DILA-XHI22
Cross-Reference Part Number: XTCEXFAC22
Industry Category: Industrial Switchgear / Motor Control / Contactor Accessories
Contact Configuration: 2NO + 2NC

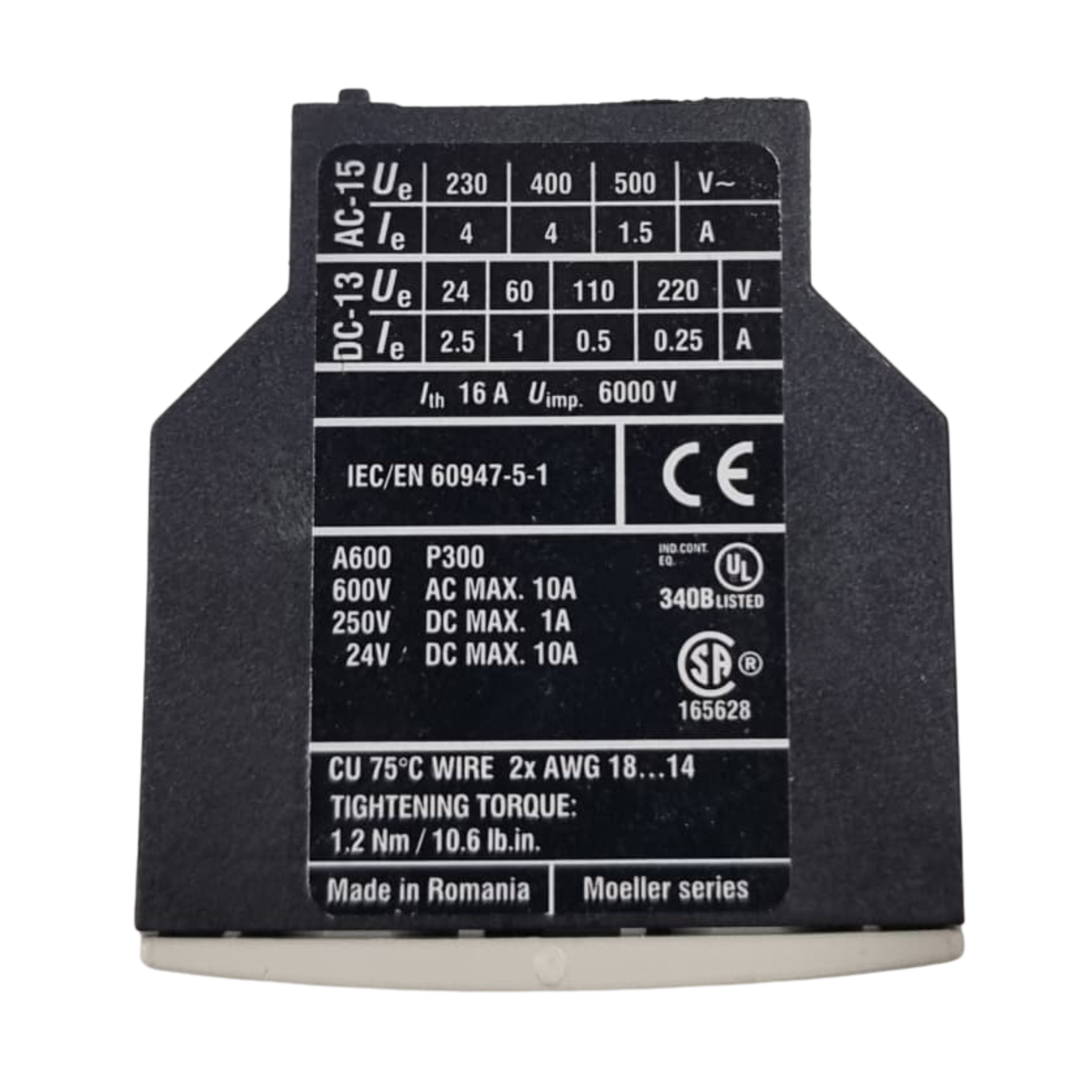

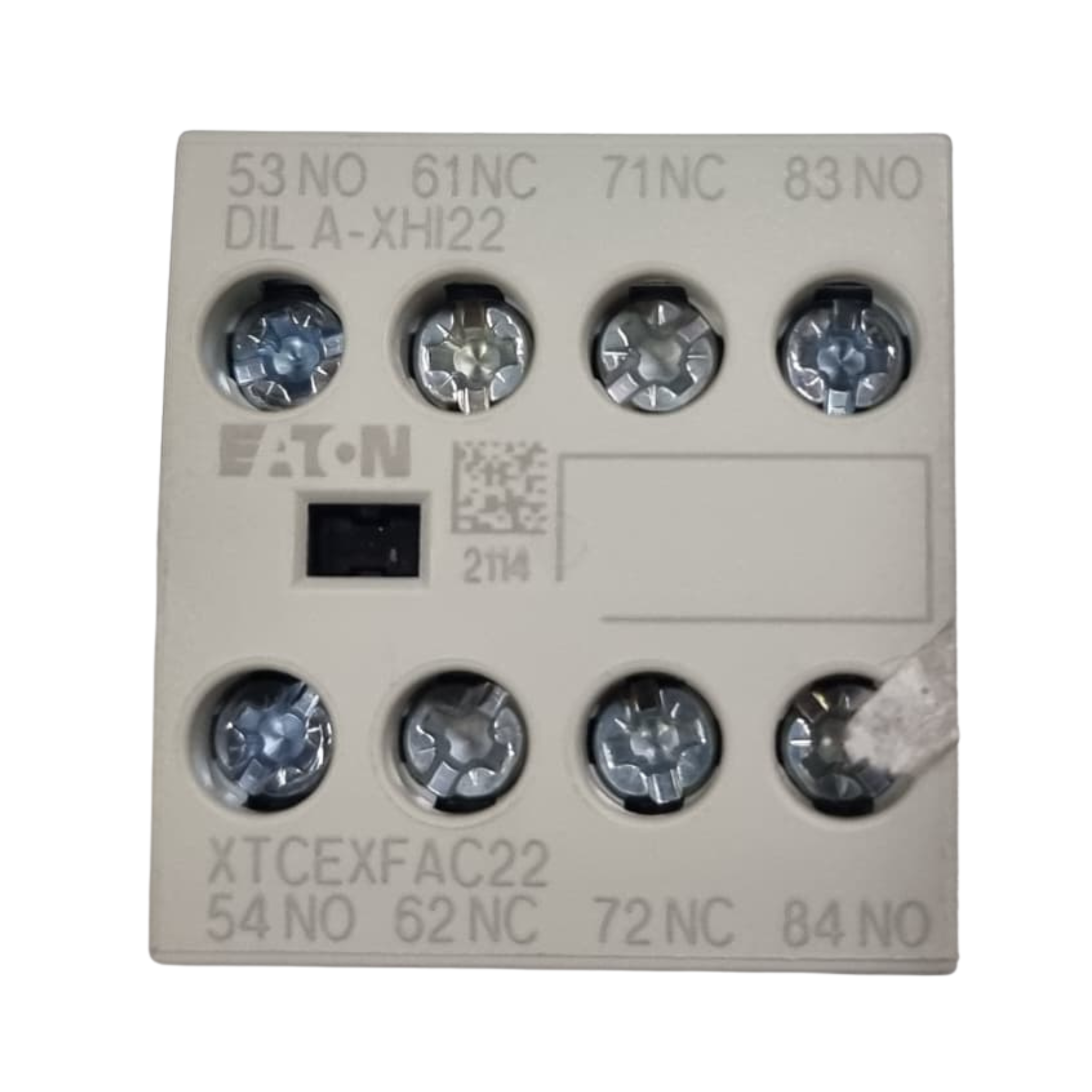

Contact Terminals: 53-54 NO / 61-62 NC / 71-72 NC / 83-84 NO
Thermal Current (Ith): 16A
Impulse Voltage (Uimp): 6000V
AC-15 Rating at 230V: 4A
AC-15 Rating at 400V: 4A
AC-15 Rating at 500V: 1.5A
DC-13 Rating at 24V: 2.5A
DC-13 Rating at 60V: 1A
DC-13 Rating at 110V: 0.5A
DC-13 Rating at 220V: 0.25A
UL Rating: A600 / P300 — 600V AC Max 10A / 250V DC Max 1A / 24V DC Max 10A
UL File Number: 340B Listed
CSA Reference: 165628
Wire Specification: CU 75°C, 2x AWG 18…14
Tightening Torque: 1.2 Nm / 10.6 lb.in
Mounting Type: Front-mounting (snap-on to contactor)
Standards / Compliance: IEC/EN 60947-5-1, CE, UL, CSA
Origin: Made in Romania
Date Code: 2114

Application:

The Eaton DILA-XHI22 auxiliary contact block is used in motor control centres, industrial control panels, and automation switchgear assemblies where additional signalling, interlocking, or feedback contacts are required on DILA series contactors. It is suited for installation in manufacturing plants, process industries, pump stations, HVAC systems, and building automation applications requiring reliable auxiliary switching at both AC and DC control voltages. Panel builders and automation engineers mount this block directly to the front face of compatible Eaton contactors to expand control circuit functionality without additional wiring complexity. MRO procurement teams stock this component as a standard spare for motor starter and contactor maintenance programmes.

Eaton Moeller DILA-XHI22 auxiliary contact block (XTCEXFAC22) is available through Industrio.ae, a UAE-based industrial supplier specialising in surplus and wholesale switchgear and motor control accessories. Procurement teams in Dubai and across the UAE sourcing Eaton Moeller contactor auxiliary contacts will find verified original stock with competitive regional lead times. Industrio.ae serves EPC contractors, panel builders, and MRO buyers requiring Eaton Moeller control components at wholesale pricing.

Metafields:

brand: Eaton (Moeller Series)
part_number: DILA-XHI22
cross_reference_part_number: XTCEXFAC22
product_type: Front-Mounting Auxiliary Contact Block
industry_category: Industrial Switchgear / Motor Control / Contactor Accessories
contact_configuration: 2NO + 2NC
thermal_current: 16A
impulse_voltage: 6000V
ac15_voltage_range: 230V–500V
dc13_voltage_range: 24V–220V
ul_rating: A600 / P300
ul_file: 340B Listed
csa_reference: 165628
wire_specification: CU 75°C, 2x AWG 18…14
tightening_torque: 1.2 Nm / 10.6 lb.in
mounting_type: Front-mounting
standards: IEC/EN 60947-5-1, CE, UL, CSA
condition: New / Original Stock
stock_quantity_available: Available upon request
target_market: UAE
global_shipping: Available upon request

Condition: New Open Box
