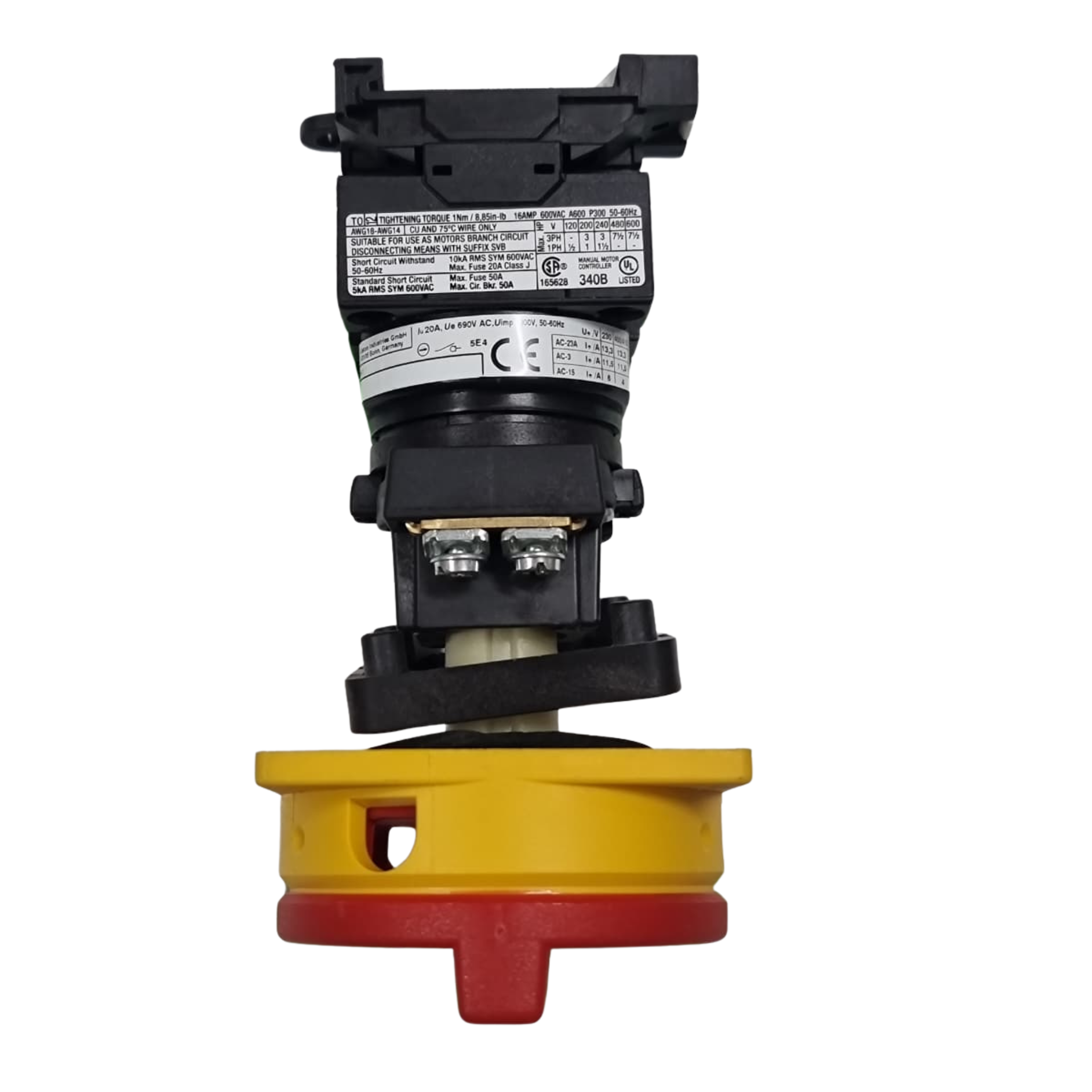

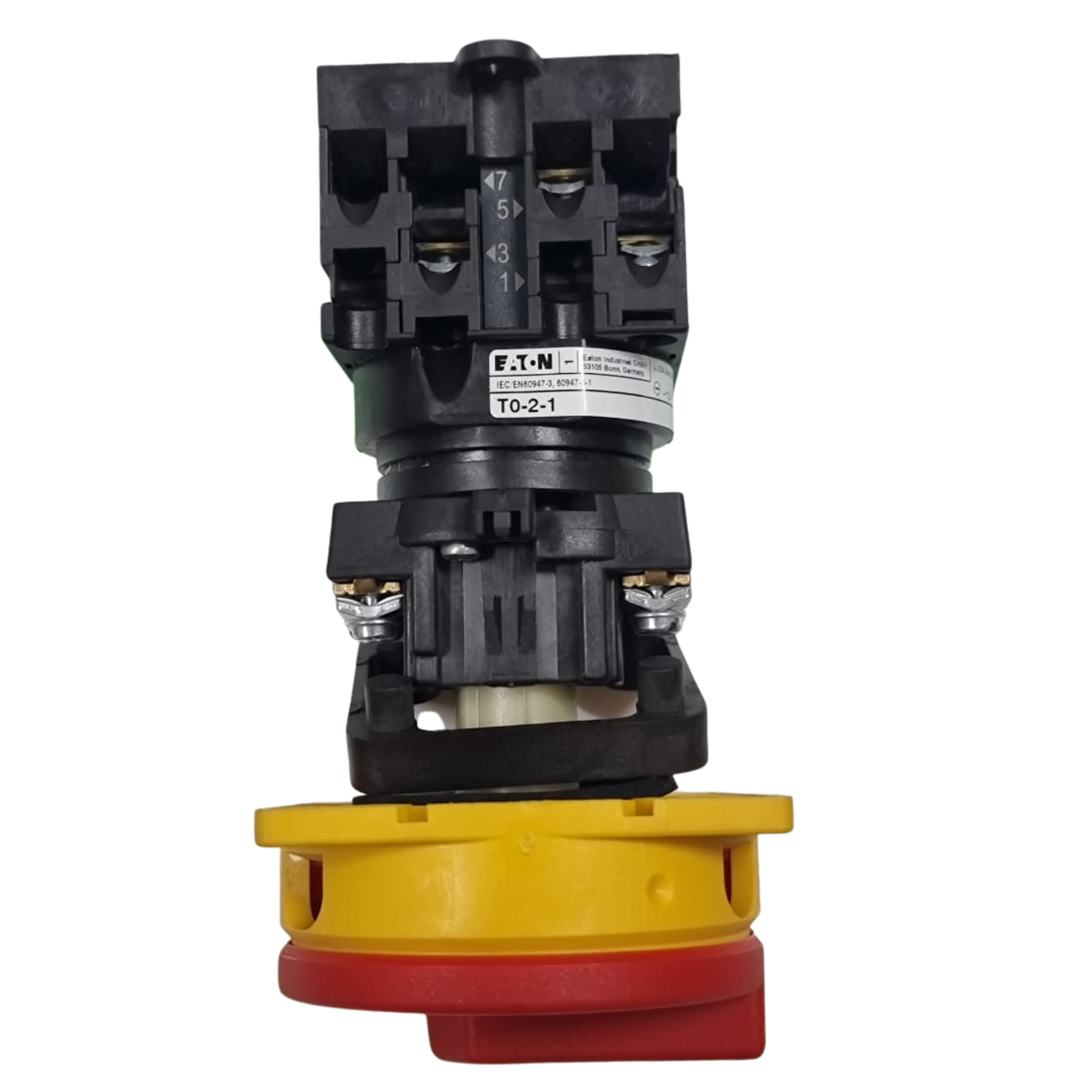

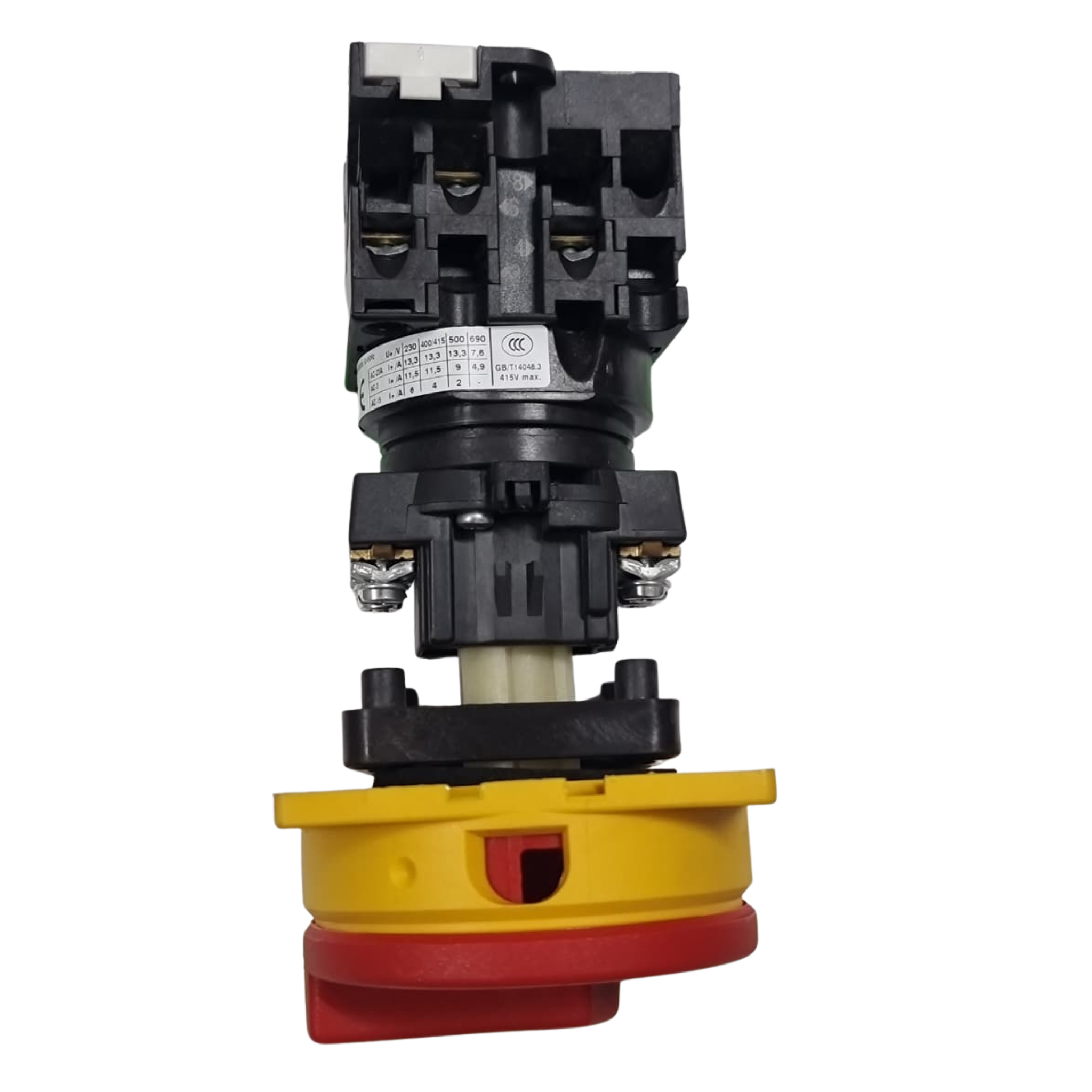

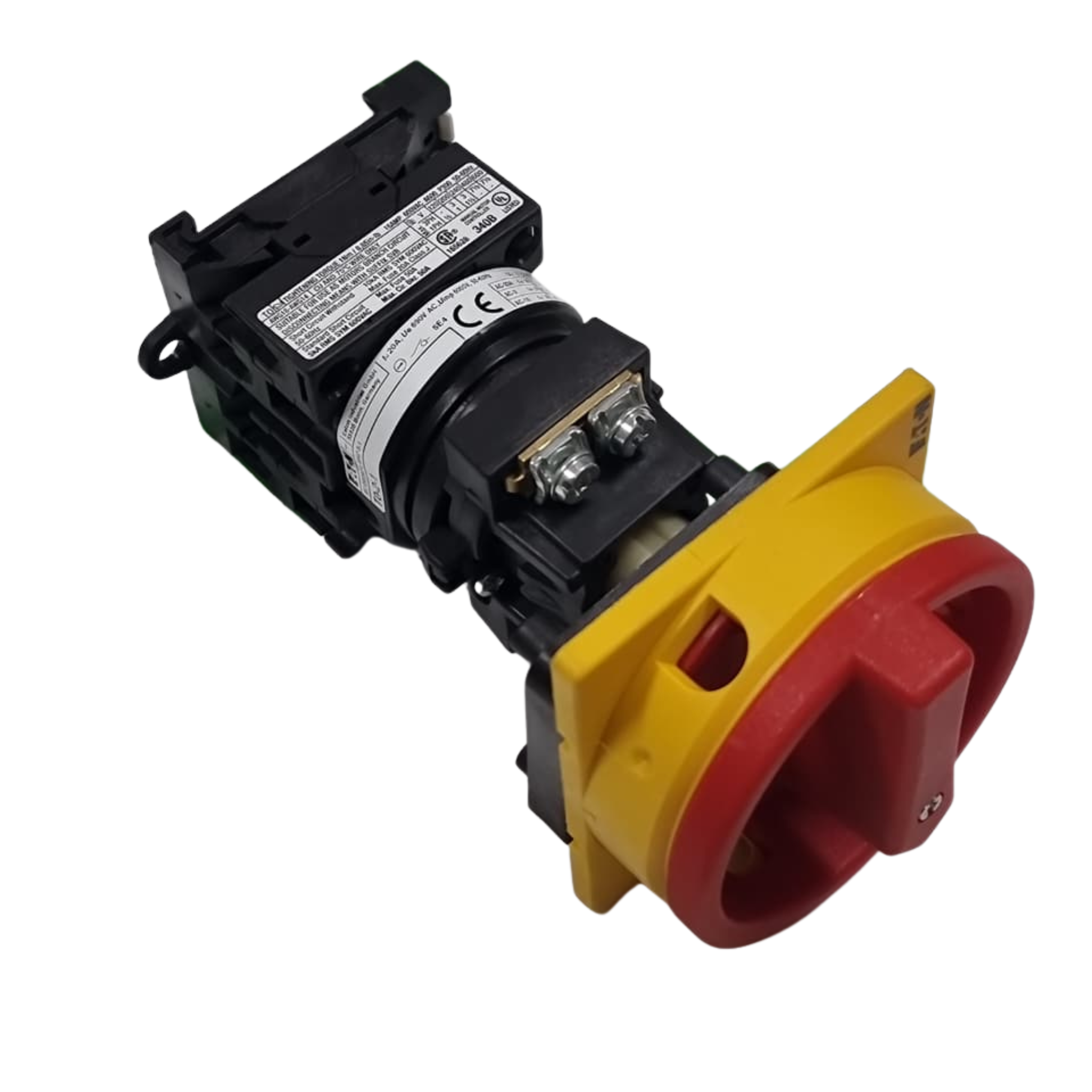

Eaton T0-2-1 Rotary Main Switch 20A 690V AC

Description:

The Eaton T0-2-1 manual motor controller supplier demand is strong across motor control panel construction and MRO markets where a compact, certified rotary disconnect switch is required for motor branch circuit isolation and protection. Manufactured by Eaton Industries GmbH in Germany, the T0-2-1 is rated at Iu 20A, Ue 690V AC with AC-23A, AC-3, and AC-15 utilisation categories, and is UL listed and CSA certified as a Manual Motor Controller suitable for motor branch circuit disconnecting means per NEC and IEC requirements.

The red/yellow lockable rotary handle provides padlockable isolation capability, making it suitable for lockout/tagout (LOTO) safety procedures in industrial facilities. With IEC/EN 60947-3 and 60947-5-1 compliance, CE marking, and UL/CSA dual certification, this switch is specified for motor control centres, machine tool panels, pump control stations, and industrial power distribution boards across manufacturing, utilities, and process industries. Available in UAE through Industrio.ae from surplus and wholesale inventory for panel builders, EPC contractors, and MRO procurement teams. Bulk pricing and datasheets available upon request.

Technical Specifications:

• Brand: Eaton (Eaton Industries GmbH, Bonn, Germany)
• Product Type: Manual Motor Controller — Rotary Cam Disconnect Switch
• Part Number / Model: T0-2-1
• Industry Category: Industrial Control & Automation / Motor Protection / Low Voltage Switchgear

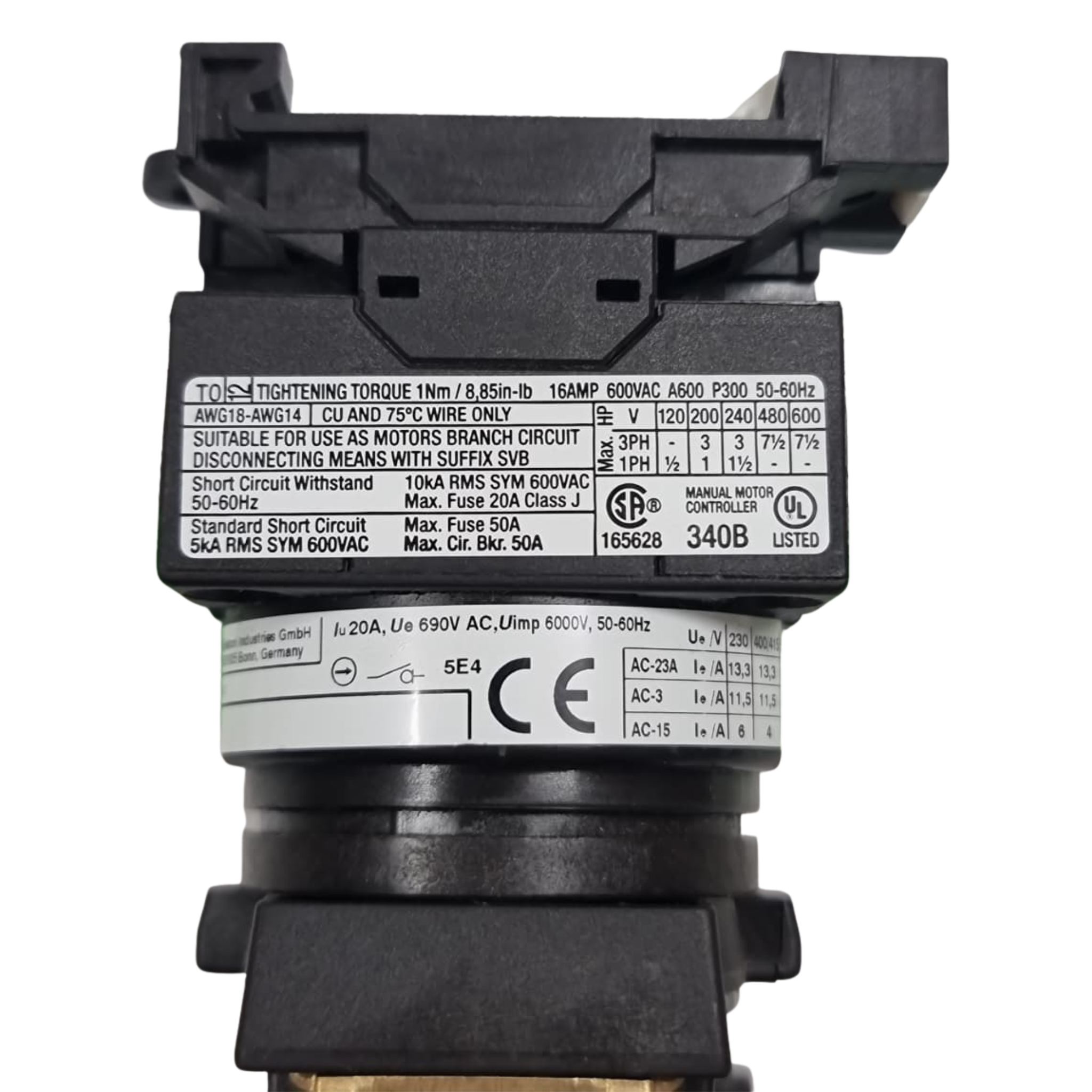

• Current Rating: 16A (label) / Iu 20A
• Voltage Rating (IEC): Ue 690V AC
• Impulse Withstand Voltage: Uimp 6kV
• Frequency: 50/60 Hz
• AC-23A Rating: Ie 13.3A @ 230V / 13.3A @ 400V
• AC-3 Rating: Ie 11.5A @ 230V / 11.5A @ 400V
• AC-15 Rating: Ie 6A @ 230V / 4A @ 400V
• UL Voltage Rating: 600V AC / A600 / P300
• Short Circuit Withstand: 10kA RMS SYM 600VAC (Class J 20A max. fuse)
• Standard Short Circuit: 5kA RMS SYM 600VAC (Max. Fuse 50A / Max. Cir. Bkr. 50A)
• HP Ratings (3PH): 3HP@200V / 3HP@240V / 7.5HP@480V / 7.5HP@600V
• HP Ratings (1PH): 0.5HP@120V / 1HP@200V / 1.5HP@240V
• Wire Range: AWG18–AWG14 / CU / 75°C only
• Tightening Torque: 1Nm / 8.85 in-lb
• Pole Configuration: 5E4

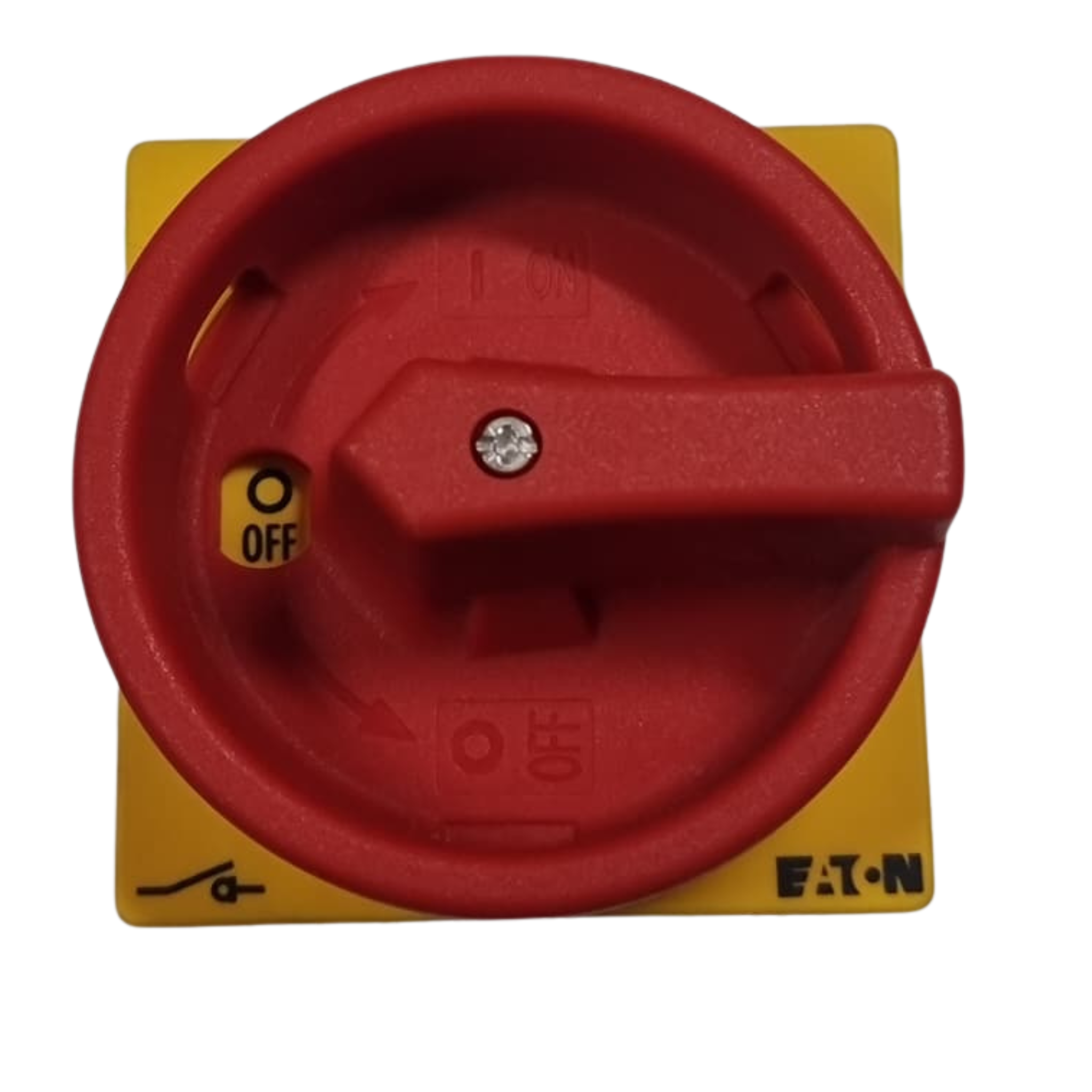

• Actuator: Red/Yellow lockable rotary handle (padlockable)
• Mounting Type: Panel mount — rotary switch body

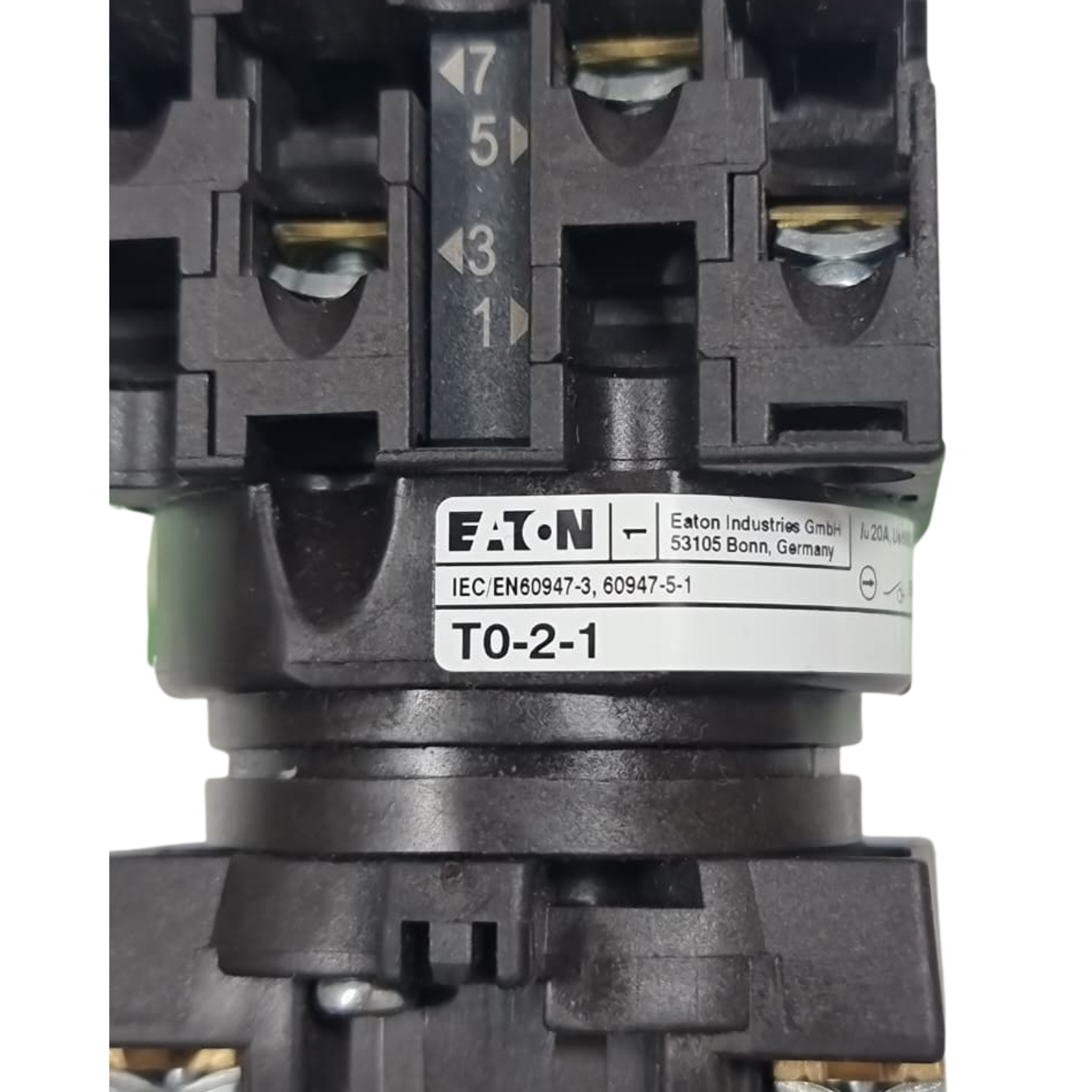

• Standards / Compliance: IEC/EN 60947-3 / IEC/EN 60947-5-1 / CE / UL Listed 340B / CSA 165628
• Other Confirmed Specs: Suitable as motor branch circuit disconnecting means (suffix SVB)

Application:

The Eaton T0-2-1 manual motor controller is used as a motor branch circuit on/off switch and disconnecting means in motor control panels, machine tool enclosures, pump and compressor control stations, and industrial power distribution boards where a certified, padlockable rotary isolation switch rated for direct motor switching duty is required. Its dual IEC and UL/CSA certification makes it suitable for both European and North American specification projects, as well as international EPC contracts requiring globally recognised certifications.

The lockable red/yellow handle facilitates lockout/tagout (LOTO) safety compliance during maintenance and electrical isolation procedures. Panel builders, electrical contractors, and MRO procurement teams managing motor control systems across the UAE and Gulf region can source this Eaton T0-2-1 through Industrio.ae's wholesale and surplus industrial component inventory.

Eaton T0-2-1 manual motor controller is available through Industrio.ae, a UAE-based distributor of industrial motor control and low voltage switchgear components serving panel builders, EPC contractors, motor system integrators, and MRO procurement teams across Dubai and the wider GCC region. Buyers sourcing Eaton rotary motor disconnect switches in wholesale quantities or for motor control panel construction and maintenance stock can contact Industrio.ae directly for pricing and availability.

Metafields:

• brand: Eaton Industries GmbH
• part_number: T0-2-1
• product_type: Manual Motor Controller — Rotary Cam Disconnect Switch
• industry_category: Industrial Control & Automation / Motor Protection / Low Voltage Switchgear
• voltage_rating: Ue 690V AC
• current_rating: Iu 20A
• impulse_withstand_voltage: Uimp 6kV
• ac23a_rating: 13.3A @ 230V/400V
• ac3_rating: 11.5A @ 230V/400V
• ac15_rating: 6A @ 230V / 4A @ 400V
• power_rating: Available upon request
• input_voltage: 690V AC
• output_voltage: Not applicable
• mounting_type: Panel Mount — Rotary Switch Body
• standards: IEC/EN 60947-3 / IEC/EN 60947-5-1 / CE / UL Listed 340B / CSA 165628
• condition: Available upon request
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: New Open Box

Without Box
