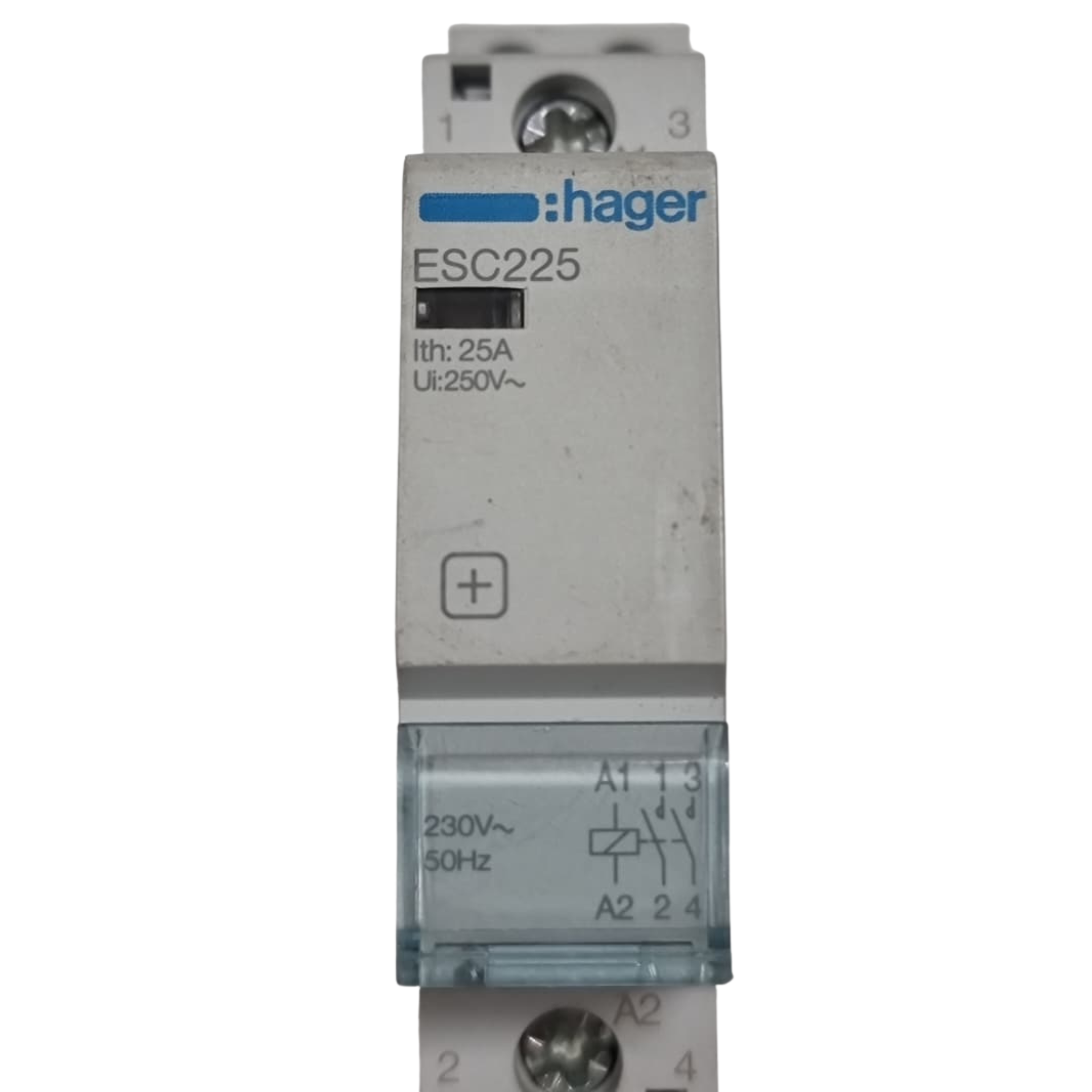

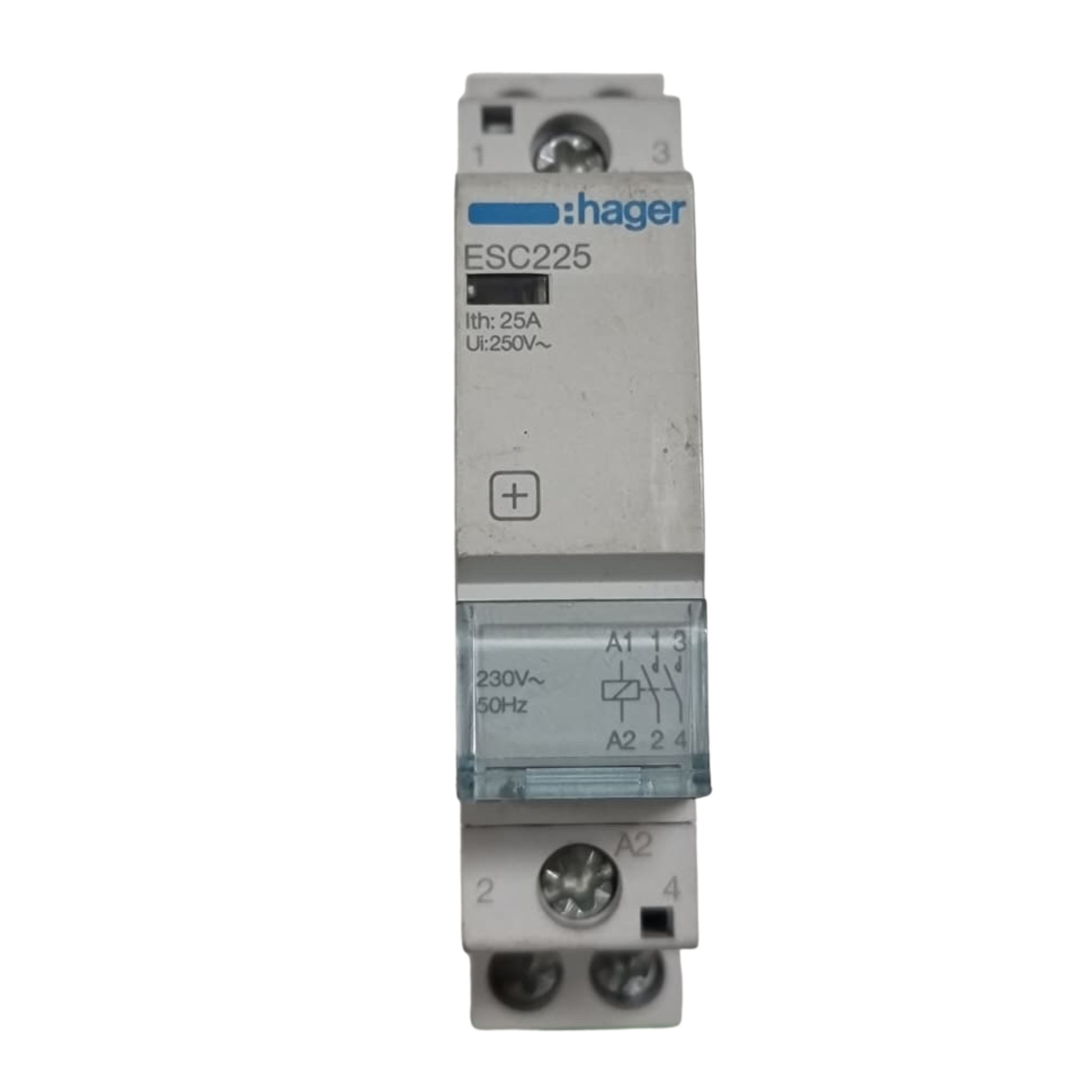

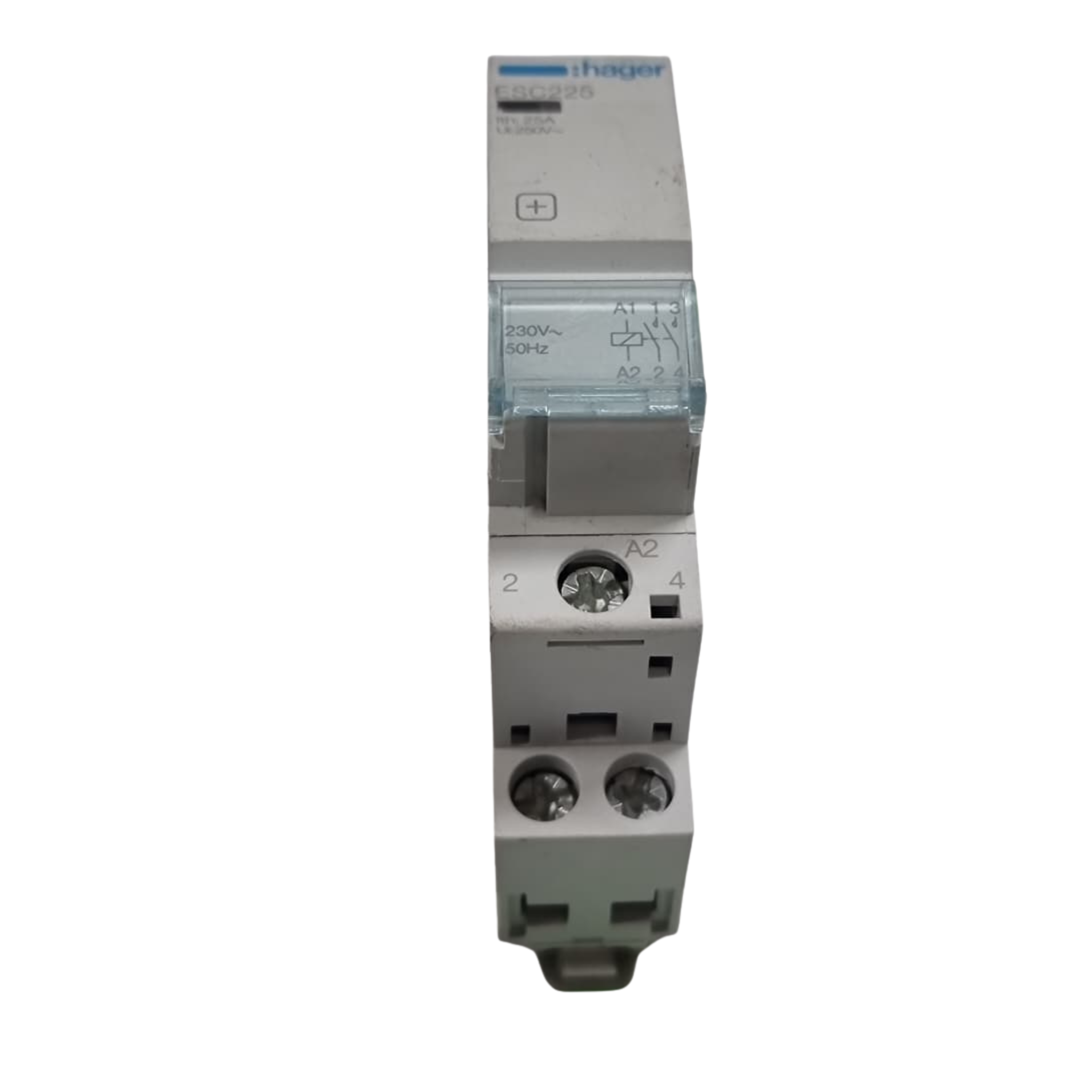

Hager ESC225 Modular Contactor 25A 230V AC

Description:

The Hager ESC225 modular installation contactor is a compact DIN rail-mounted switching device rated at 25A (Ith) with a 230V AC / 50Hz coil, designed for residential, commercial, and light industrial electrical panel applications. Featuring a 1NO + 1NC contact configuration, this contactor supports AC7a utilisation at 25A / 4.6kW and AC7b motor duty at 8.5A / 880W at 230V, making it suitable for a wide range of load types including resistive, inductive, and small motor circuits.

The ESC225 occupies a single 18mm DIN rail module width, accommodating cable connections from 1 to 10mm² on the line side and 1 to 6mm² on the load side. CE certified and manufactured in France, it is a trusted component in distribution boards, lighting control systems, heating circuits, and building automation panels.

Industrio.ae supplies Hager modular switchgear from verified surplus stock to panel builders, electrical contractors, and MRO procurement teams across the UAE.

Technical Specifications:

• Brand: Hager
• Product Type: Modular DIN Rail Installation Contactor
• Part Number: ESC225
• Industry Category: Electrical Switchgear / Modular Contactors / Building & Industrial Automation
• Thermal Current (Ith): 25A
• Insulation Voltage (Ui): 250V AC
• Coil Voltage: 230V AC / 50Hz
• Contact Configuration: 1NO + 1NC

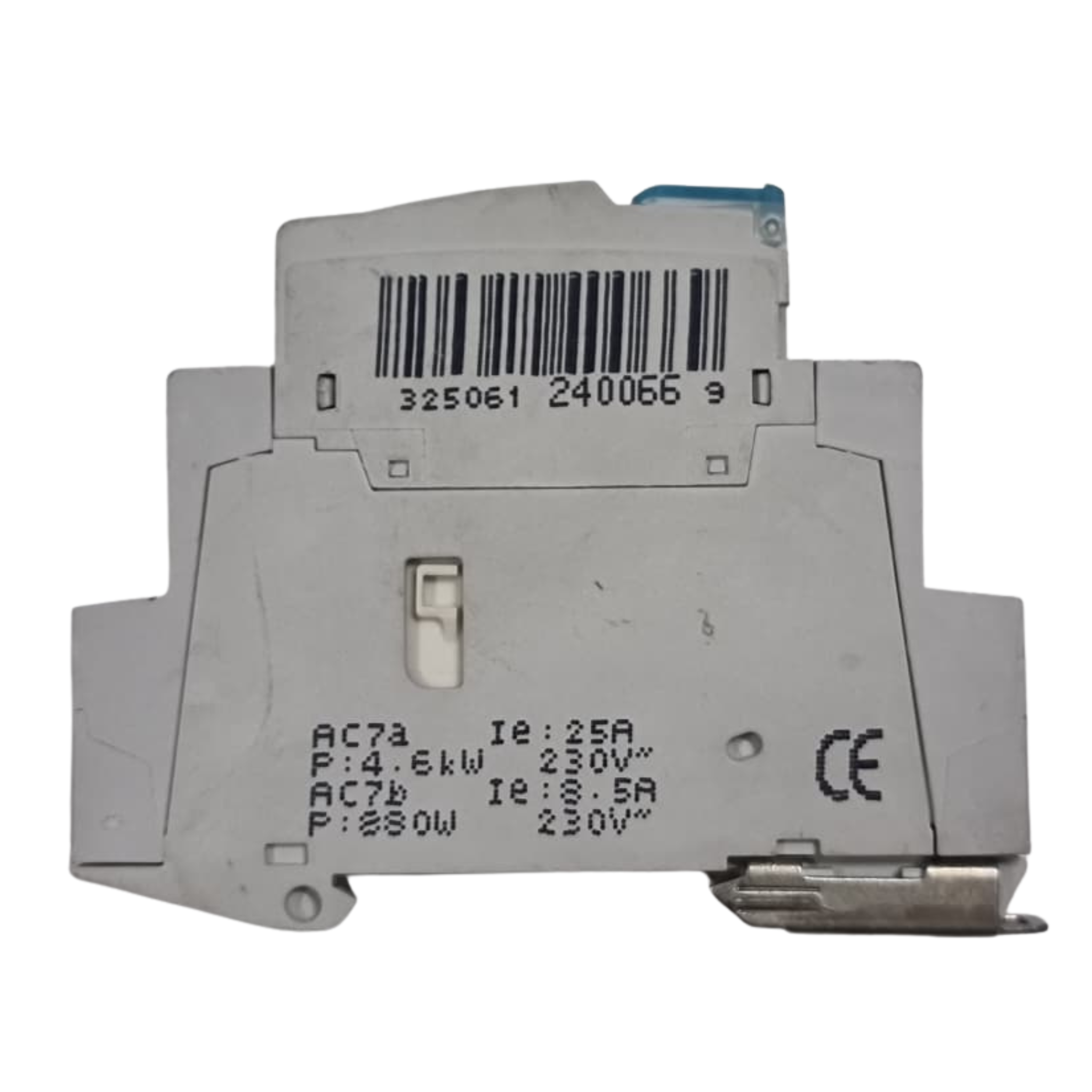

• AC7a Rating: Ie 25A / P 4.6kW @ 230V
• AC7b Rating: Ie 8.5A / P 880W @ 230V

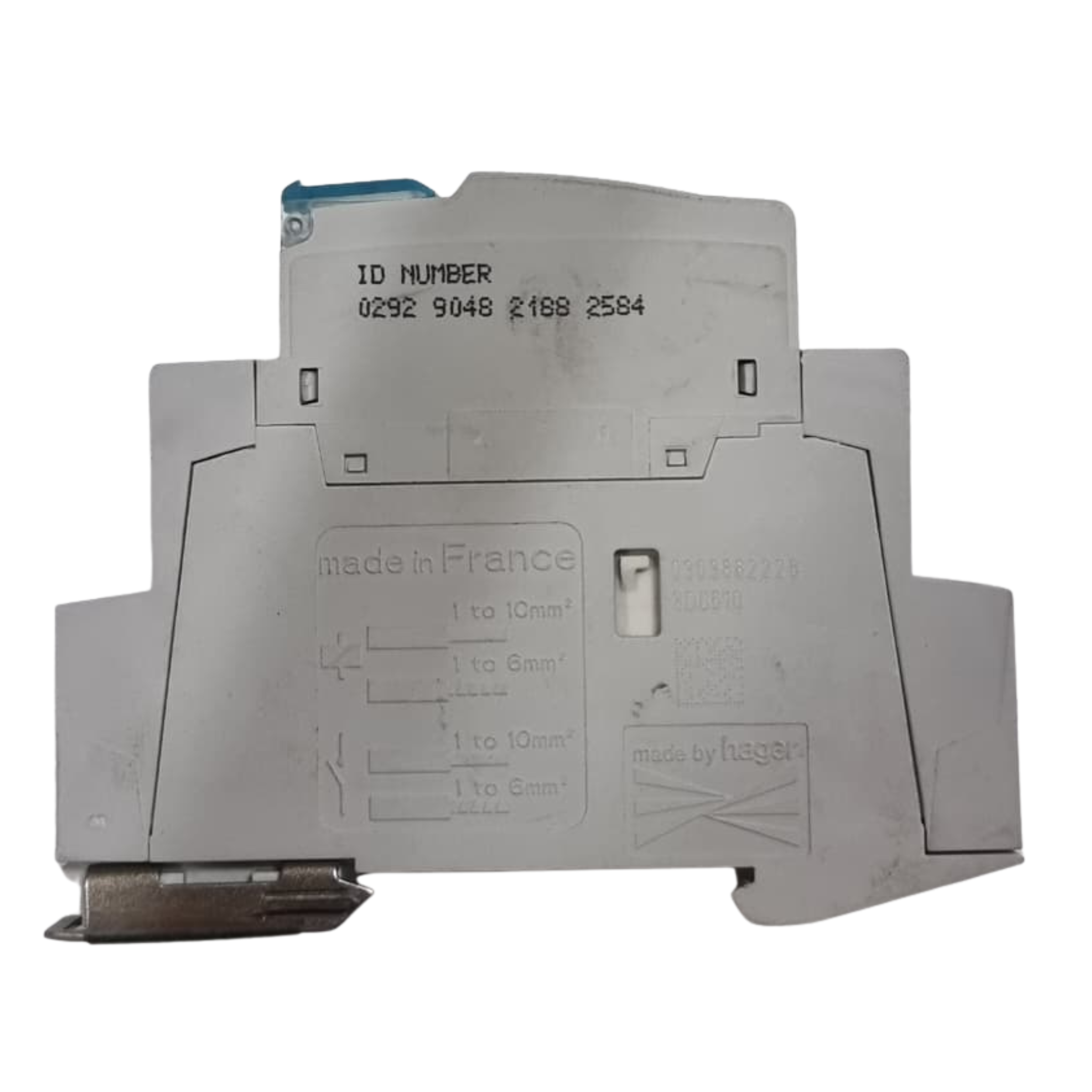

• Cable Capacity — Line: 1 to 10mm²
• Cable Capacity — Load: 1 to 6mm²
• Mounting Type: 35mm DIN rail
• Module Width: 1 module (~18mm)
• Origin: Made in France
• Standards / Compliance: CE
• ID Number: 0292 9048 2188 2584
• Other Confirmed Specs: Available upon request

Application:

The Hager ESC225 is used in residential and commercial distribution boards, lighting control panels, heating and ventilation circuits, and building automation systems where a compact, DIN rail-mounted contactor with 230V AC coil operation is required. Its dual contact configuration — 1NO and 1NC — allows flexible switching and interlocking arrangements within panel assemblies. The AC7b motor duty rating makes it suitable for small motor switching applications in HVAC and building services installations. This contactor is regularly procured as an MRO replacement or project component by panel builders, electrical contractors, and building services engineers operating across the UAE and Gulf region.

Electrical procurement teams and panel builders sourcing the Hager ESC225 modular DIN rail contactor will find verified surplus stock available through Industrio.ae, a UAE-based electrical and industrial components supplier serving distributors, EPC contractors, and MRO teams across Dubai and the broader Gulf region. As a wholesale source for Hager switchgear and modular contactors in the UAE, Industrio.ae supports both single-unit and bulk procurement of CE-certified panel components with competitive stock availability.

Metafields:

• brand: Hager
• part_number: ESC225
• product_type: Modular DIN Rail Installation Contactor
• industry_category: Electrical Switchgear / Modular Contactors / Building & Industrial Automation
• thermal_current: 25A
• insulation_voltage: 250V AC
• coil_voltage: 230V AC / 50Hz
• contact_configuration: 1NO + 1NC
• ac7a_rating: 25A / 4.6kW @ 230V
• ac7b_rating: 8.5A / 880W @ 230V
• cable_capacity_line: 1 to 10mm²
• cable_capacity_load: 1 to 6mm²
• mounting_type: 35mm DIN rail
• module_width: 1 module (~18mm)
• origin: Made in France
• standards: CE
• condition: Used / Surplus Stock
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used

Tested✅
