Murr Elektronik 51515 Interface Relay Module 230V AC/DC

Description:

The Murr Elektronik 51515 relay module supplier market positions this component as a reliable 230V interface relay for industrial control panel and automation applications requiring mains-voltage coil switching. This single-channel DIN rail relay module accepts a 230V AC/DC input at 3.5mA and delivers a switched output of up to 250V AC/DC at 5A, with a 1NO contact configuration across terminals 13 and 14. The integrated coil circuit incorporates flyback diode and varistor suppression on the A1/A2 terminals, ensuring clean switching and protection for connected control systems.

Rated to EN 60947-5-1 and CE marked, the 51515 is suited for integration in motor control interfaces, building automation, HVAC control panels, and process control systems operating on 230V supply circuits. Its IP20 rated compact DIN rail body is standard across Murr Elektronik's relay module range, enabling consistent panel layouts. Available in UAE through Industrio.ae for EPC contractors, panel builders, automation integrators, and MRO procurement teams sourcing surplus and wholesale certified relay components. Datasheets and bulk pricing are available upon request.

Technical Specifications:

• Brand: Murr Elektronik
• Product Type: Single-Channel Interface Relay Module — 1NO
• Part Number / Article Number: 51515
• Industry Category: Industrial Automation & Control / Interface Relays / PLC I/O Components
• Input Voltage (DC): 230V DC
• Input Voltage (AC): 230V AC — 50/60 Hz
• Input Current: 3.5mA
• Output Voltage: max. 250V DC / max. 250V AC (50/60 Hz)
• Output Current: max. 5A

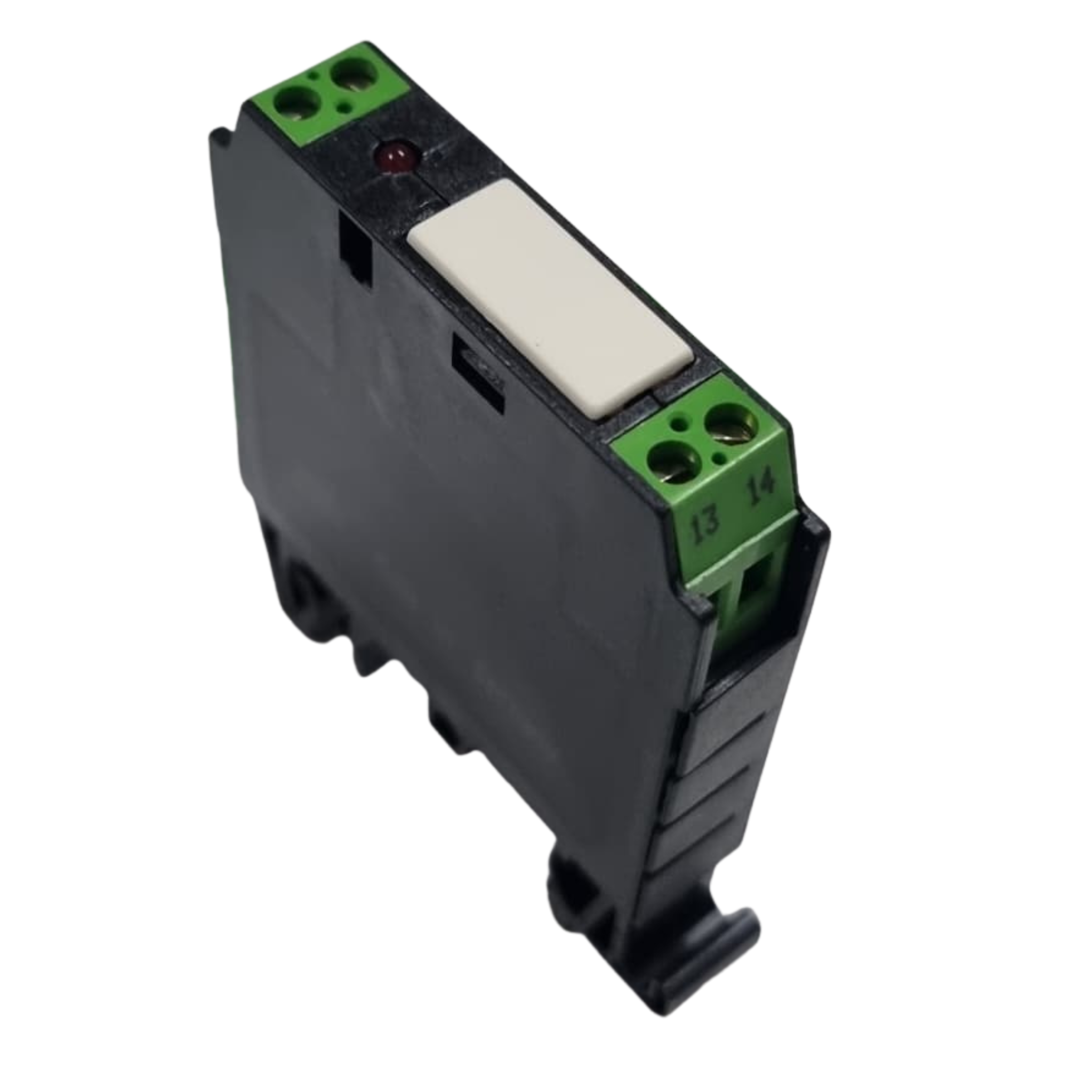

• Contact Configuration: 1NO — Terminals 13 (NO), 14 (Common)

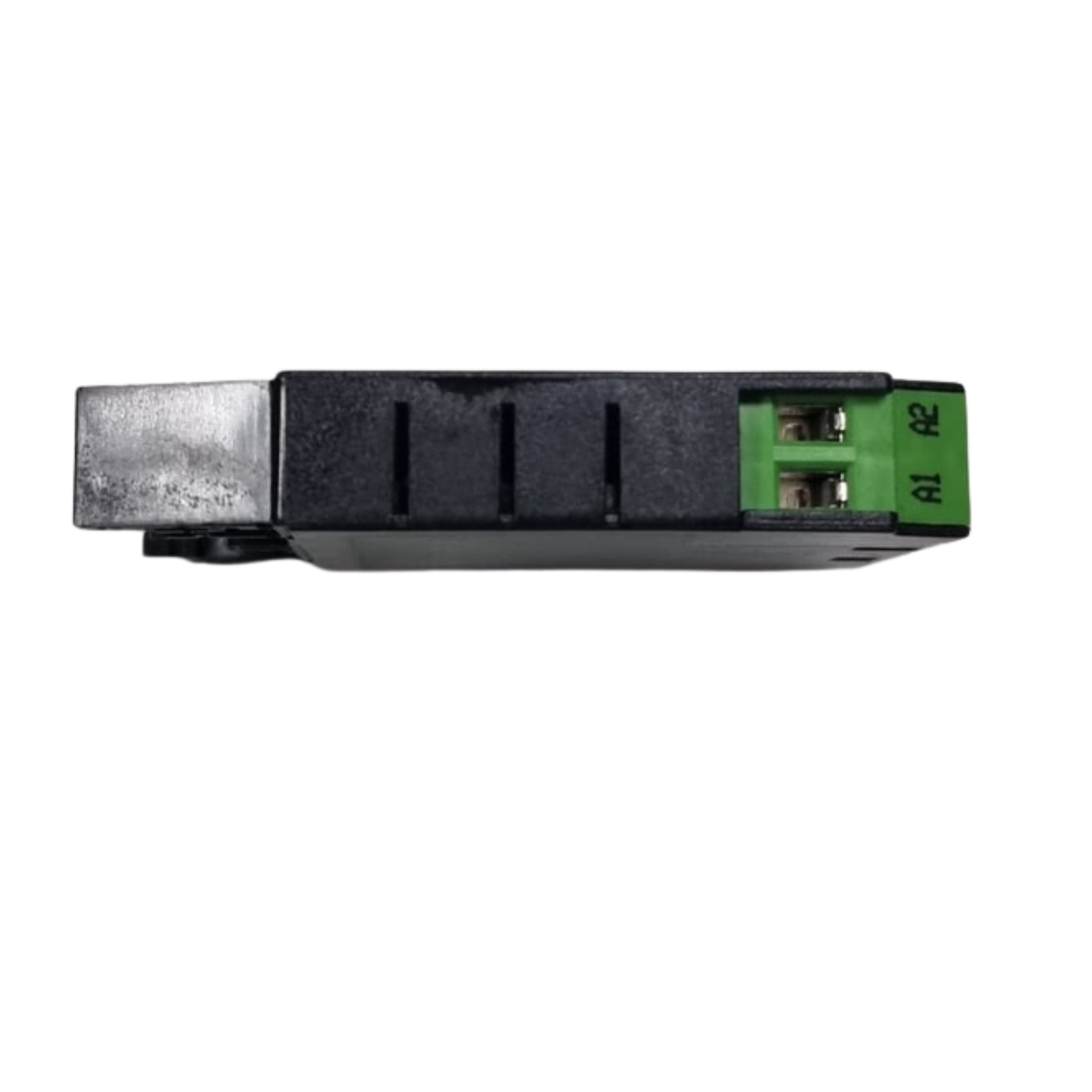

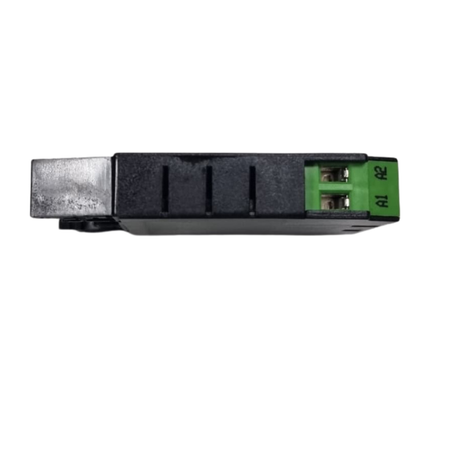

• Coil Terminals: A1, A2

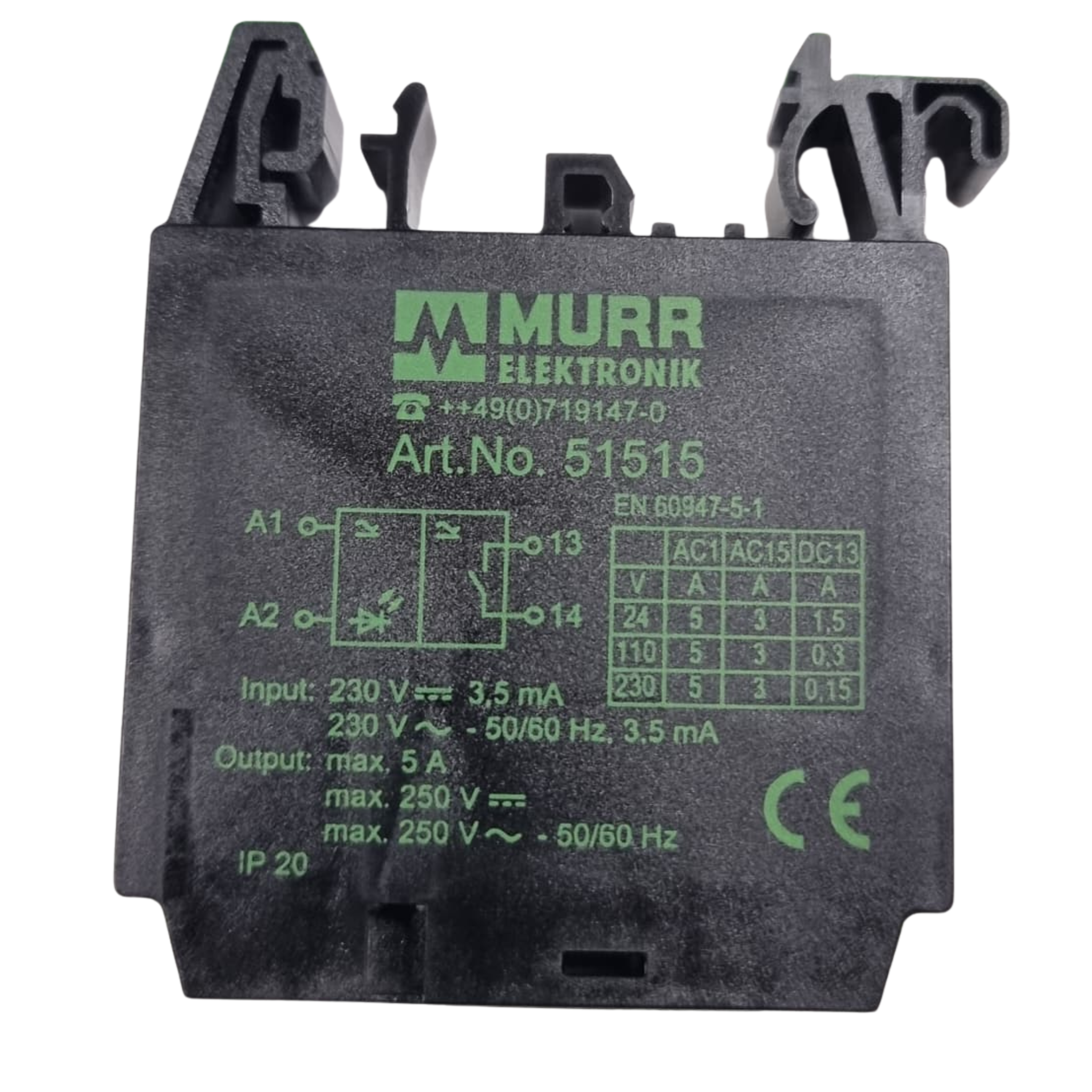

• Coil Suppression: Flyback diode + varistor (confirmed from circuit diagram)
• AC1 Contact Rating: 24V/5A — 110V/5A — 230V/5A
• AC15 Contact Rating: 24V/3A — 110V/3A — 230V/3A
• DC13 Contact Rating: 24V/1.5A — 110V/0.3A — 230V/0.15A
• IP Rating: IP20
• Mounting Type: DIN Rail Mount
• Standards / Compliance: EN 60947-5-1 / CE Marked
• Power Rating: Available upon request
• Other Confirmed Specs: Murr Elektronik manufacturer contact: ++49(0)719147-0

Application:

The Murr Elektronik 51515 interface relay module is used in industrial control panels and automation systems where a 230V AC/DC coil relay is required to switch auxiliary loads, signal circuits, or motor control interfaces at up to 250V/5A. Its mains-voltage coil input makes it particularly suited for direct integration into 230V control circuits commonly found in HVAC systems, building management, process automation, and electrical switchgear panels without requiring a separate 24V auxiliary supply.

The 1NO contact output with integrated coil suppression ensures reliable, surge-protected switching across resistive, inductive, and DC load types as defined by the AC1, AC15, and DC13 ratings. Panel builders, system integrators, and MRO procurement teams managing 230V control panel installations across the UAE and Gulf region will find this Murr Elektronik relay module available through Industrio.ae's wholesale and surplus industrial component inventory.

Murr Elektronik Article No. 51515, the 230V AC/DC interface relay module, is available through Industrio.ae, a UAE-based distributor of industrial automation and control components serving panel builders, EPC contractors, building automation specialists, and MRO procurement teams across Dubai and the wider GCC. Buyers sourcing Murr Elektronik relay modules at wholesale quantities or for ongoing panel construction and maintenance stock requirements can contact Industrio.ae directly for pricing and availability.

Metafields:

• brand: Murr Elektronik
• part_number: 51515
• product_type: Single-Channel Interface Relay Module — 1NO — 230V AC/DC Coil
• industry_category: Industrial Automation & Control / Interface Relays / PLC I/O Components
• voltage_rating: Output max. 250V AC/DC
• current_rating: max. 5A
• power_rating: Available upon request
• input_voltage: 230V AC/DC
• output_voltage: max. 250V AC/DC
• mounting_type: DIN Rail Mount
• ip_rating: IP20
• standards: EN 60947-5-1 / CE Marked
• condition: Available upon request
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: New Open Box

Without Box
