Murr Elektronik 51600 Interface Relay Module 24V AC/DC

Description:

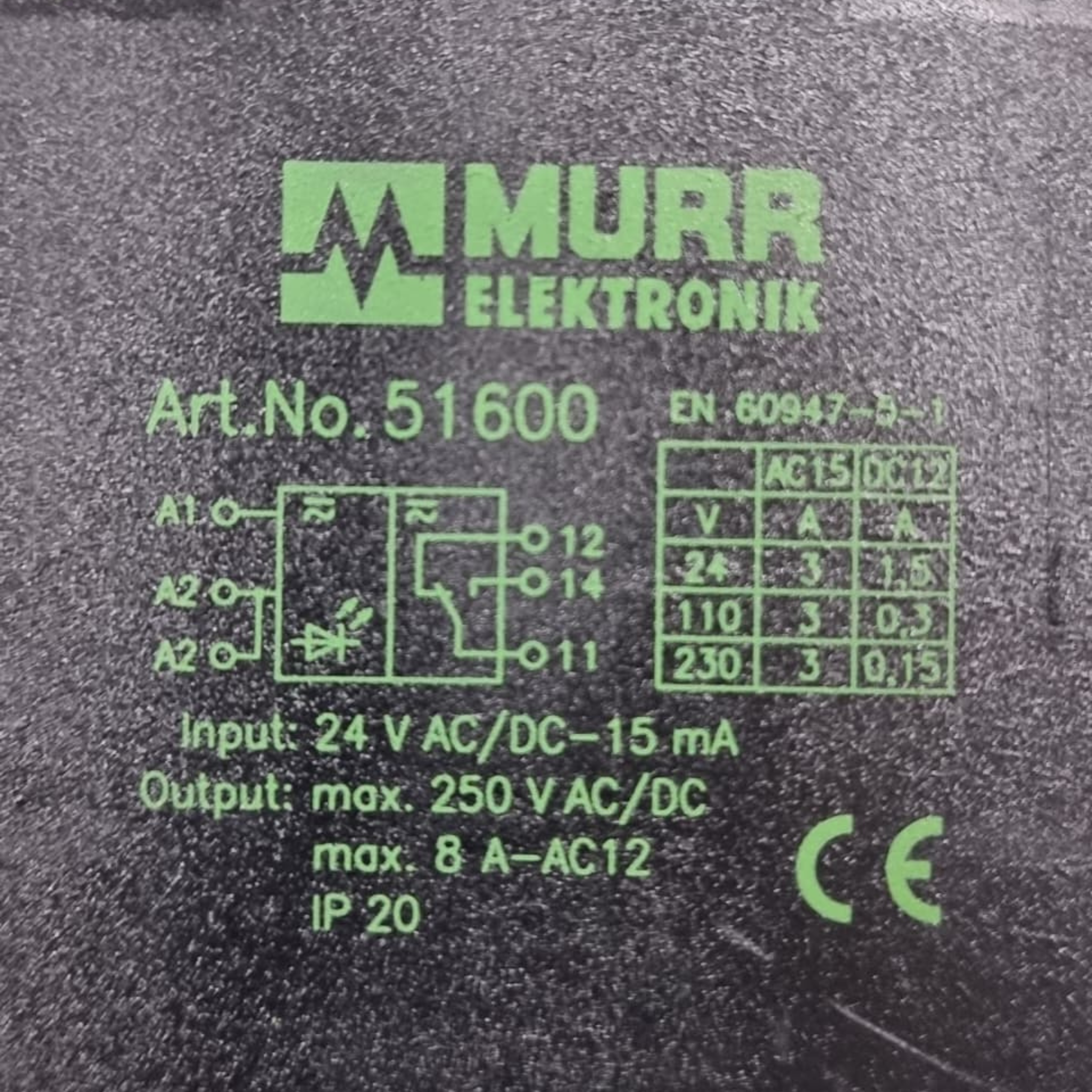

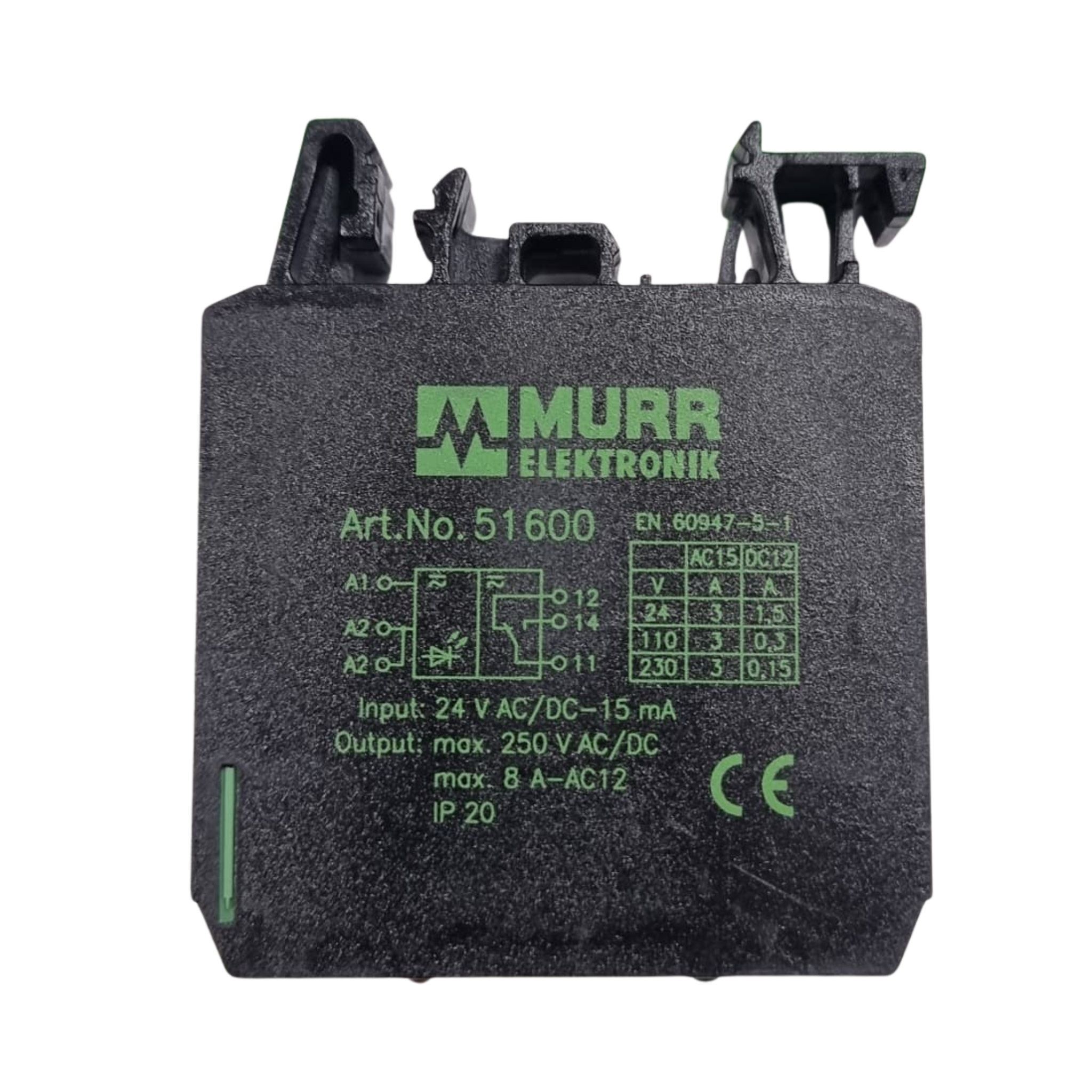

The Murr Elektronik 51600 relay module supplier demand is strong across industrial automation markets where reliable PLC interface and signal switching components are essential. This single-channel interface relay module from Murr Elektronik accepts a 24V AC/DC input at 15mA and delivers a switched output of up to 250V AC/DC at 8A (AC12), with a 1CO (changeover) contact configuration across terminals 11, 12, and 14. The integrated circuit diagram confirms coil suppression with both flyback diode and varistor protection on the A1/A2 coil connections.

Rated to EN 60947-5-1 and CE marked, this relay module is suited for DIN rail panel integration in PLC output stages, motor control interfaces, building automation, and process control applications. Its IP20 protection rating and compact form factor make it a standard choice for control cabinet builds. Available in UAE through Industrio.ae, this Murr Elektronik module is stocked for automation integrators, panel builders, EPC contractors, and MRO procurement teams requiring certified surplus and wholesale relay components. Bulk pricing and datasheets are available upon request.

Technical Specifications:

• Brand: Murr Elektronik
• Product Type: Single-Channel Interface Relay Module — 1CO Changeover
• Part Number / Article Number: 51600
• Industry Category: Industrial Automation & Control / Interface Relays / PLC I/O Components
• Input Voltage: 24V AC/DC
• Input Current: 15mA
• Output Voltage: max. 250V AC/DC
• Output Current: max. 8A (AC12)
• Contact Configuration: 1CO Changeover — Terminals 11 (NC), 12 (NO), 14 (Common)
• Coil Terminals: A1, A2
• Coil Suppression: Flyback diode + varistor (confirmed from circuit diagram)
• AC15 Contact Rating: 24V/3A — 110V/3A — 230V/3A
• DC12 Contact Rating: 24V/1.5A — 110V/0.3A — 230V/0.15A
• IP Rating: IP20
• Mounting Type: DIN Rail Mount
• Standards / Compliance: EN 60947-5-1 / CE Marked
• Power Rating: Available upon request
• Other Confirmed Specs: Compact module body with snap-fit DIN rail clips visible

Application:

The Murr Elektronik 51600 interface relay module is widely deployed in PLC output expansion, signal isolation, and load switching applications within industrial control panels, machine automation systems, and building management installations. Its 24V AC/DC coil input makes it directly compatible with standard PLC output cards, enabling reliable switching of higher-voltage AC/DC loads up to 250V at 8A without exposing the PLC output stage to load-side surges.

The integrated coil suppression protects the driving PLC or controller output from back-EMF transients, extending the operational life of both the relay and the connected control system. Panel builders, automation integrators, and MRO teams managing ongoing control system maintenance or new panel construction projects across the UAE will find this Murr Elektronik relay module available through Industrio.ae's industrial surplus and wholesale inventory.

Murr Elektronik Article No. 51600 interface relay module is available through Industrio.ae, a UAE-based distributor of industrial automation and control components serving EPC contractors, panel builders, PLC system integrators, and MRO procurement teams across Dubai and the broader Gulf region. Procurement teams sourcing Murr Elektronik relay modules in wholesale quantities or for control panel project stock can contact Industrio.ae directly for competitive pricing and stock availability.

Metafields:

• brand: Murr Elektronik
• part_number: 51600
• product_type: Single-Channel Interface Relay Module — 1CO Changeover
• industry_category: Industrial Automation & Control / Interface Relays / PLC I/O Components
• voltage_rating: Output max. 250V AC/DC
• current_rating: max. 8A (AC12)
• power_rating: Available upon request
• input_voltage: 24V AC/DC
• output_voltage: max. 250V AC/DC
• mounting_type: DIN Rail Mount
• standards: EN 60947-5-1 / CE Marked
• ip_rating: IP20
• condition: Available upon request
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: New Open Box

Without Box
