Phoenix Contact 2961105 24VAC/DC Interface Relay Socket PLC-BSC-24UC/21 2966029

Description:

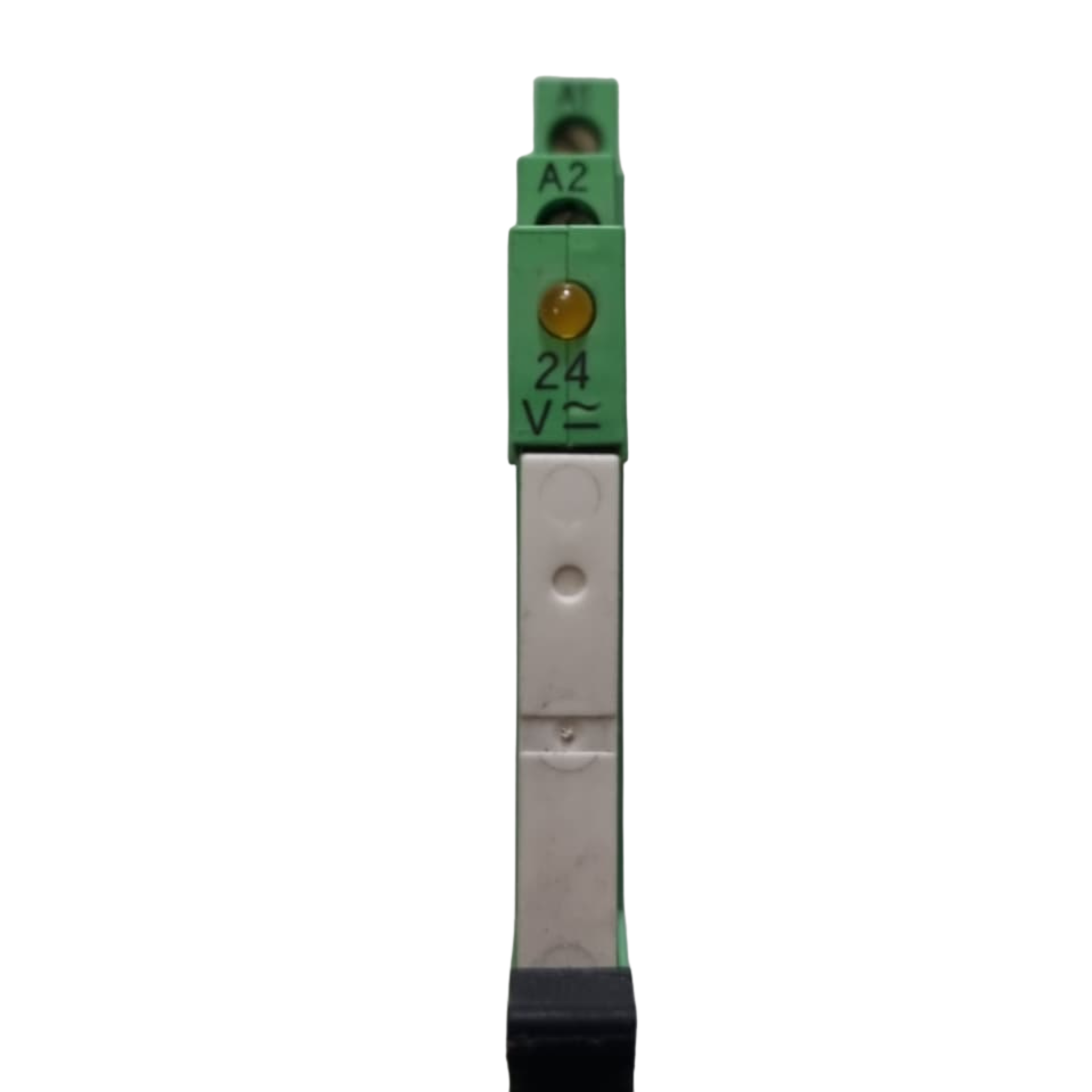

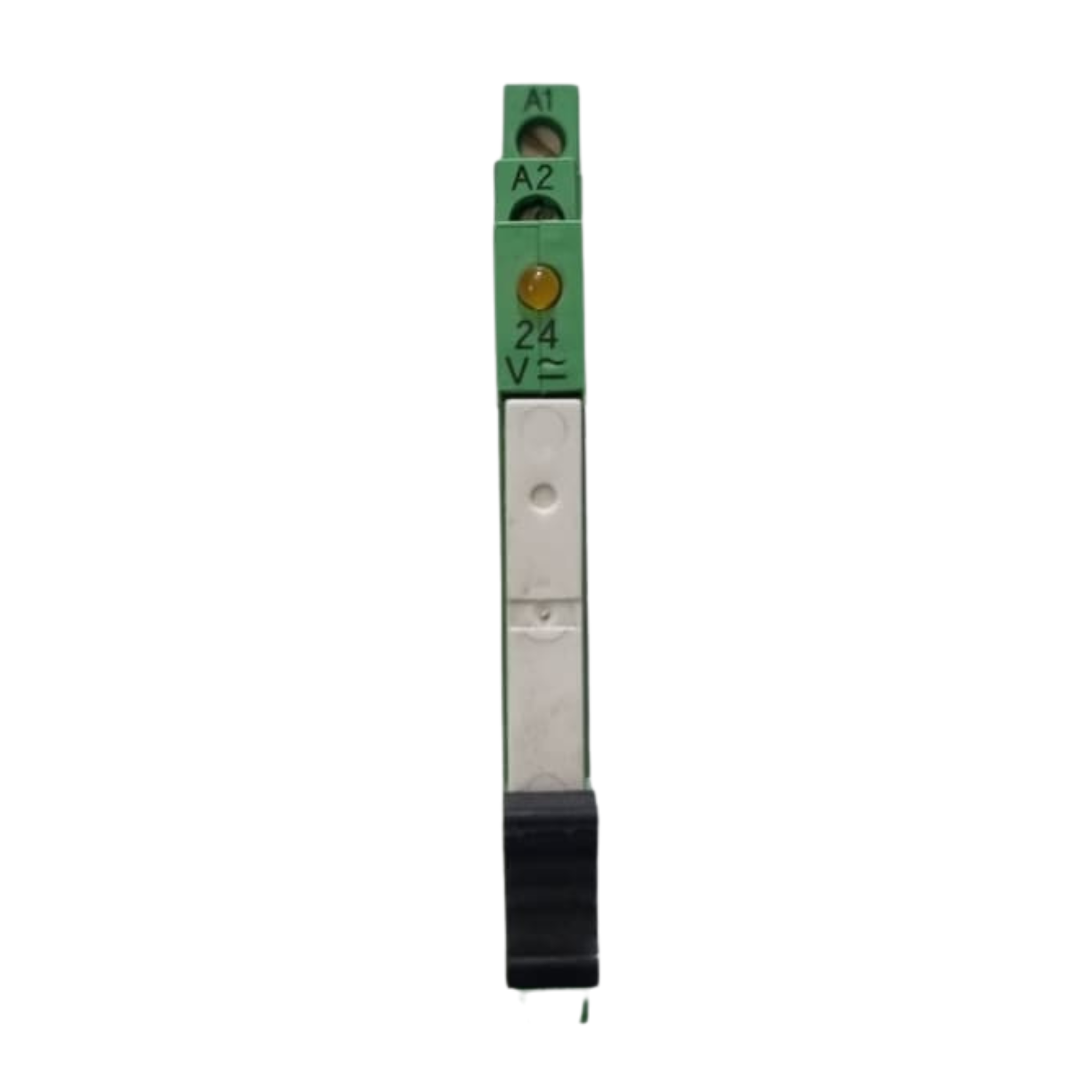

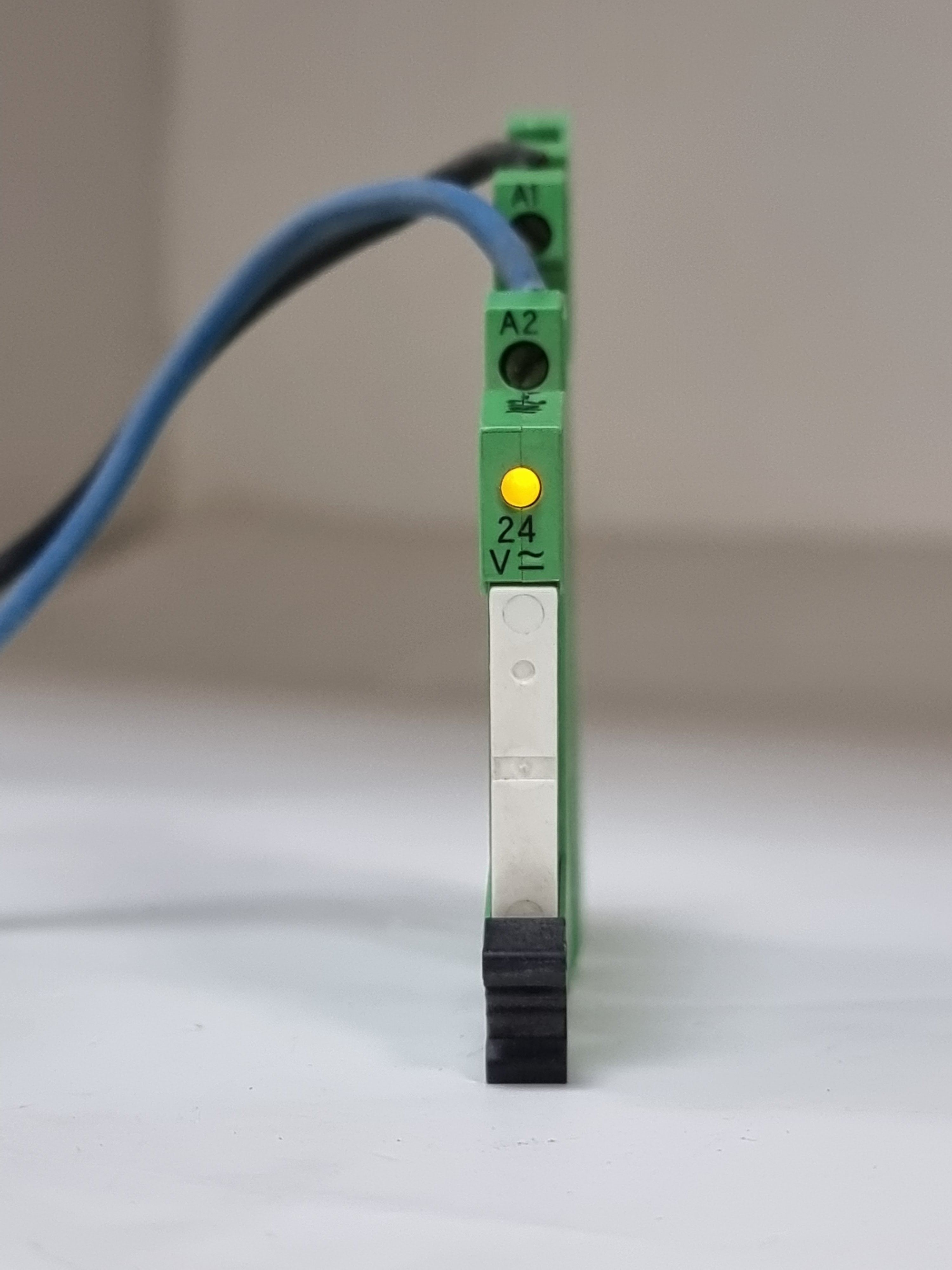

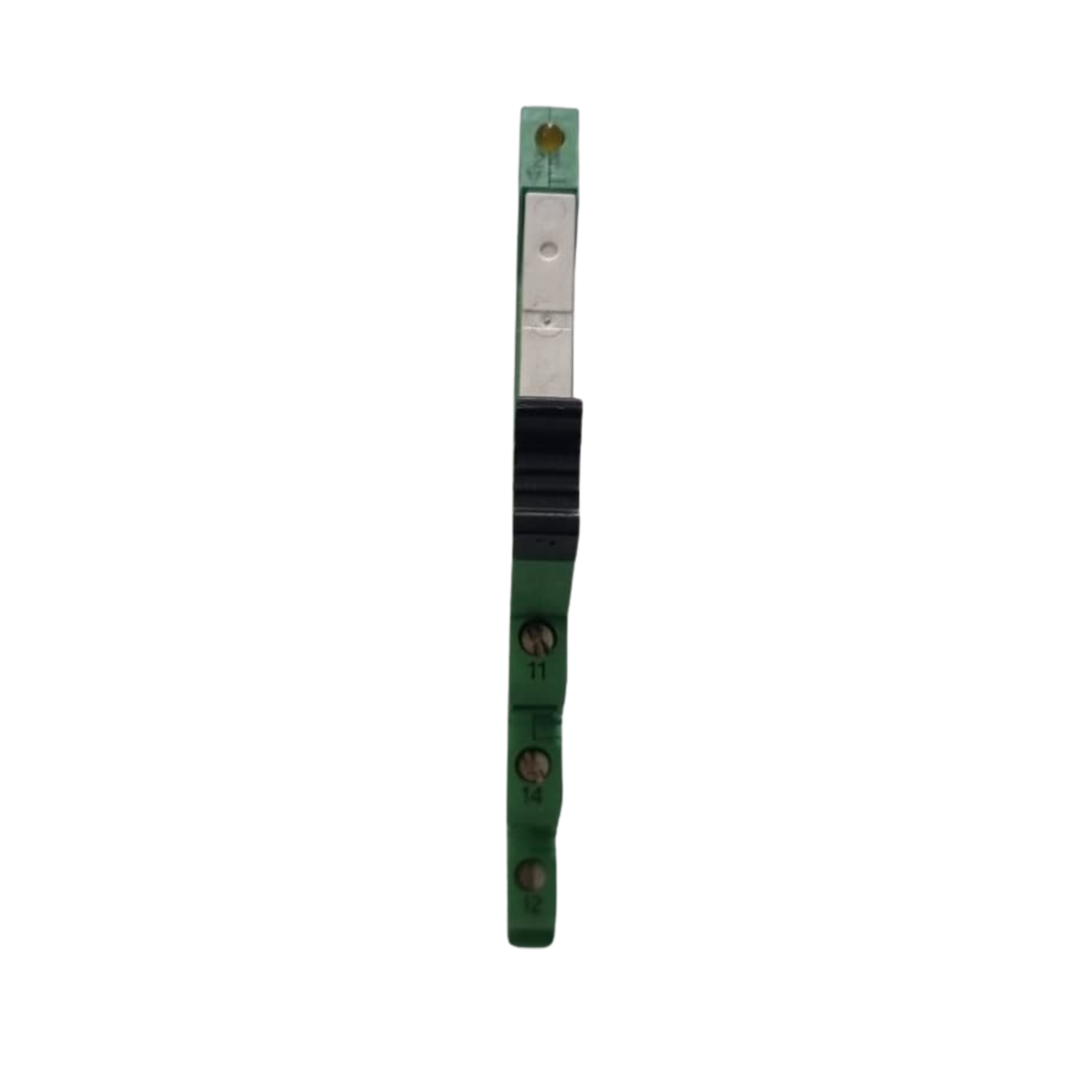

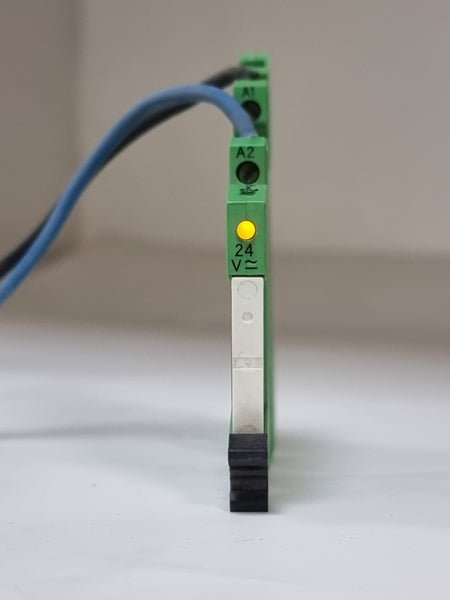

Procure the authentic Phoenix Contact slim interface relay assembly, combining the 2966029 (PLC-BSC-24UC/21) DIN-rail socket base with the 2961105 plug-in miniature electromechanical relay block. This high-efficiency 6.2 mm coupling setup accepts a flexible 24VAC/DC input control voltage, making it an excellent option for signal matching between central controllers and complex field automation layouts. Equipped with advanced silver tin oxide (AgSnO) contacts configured as a single changeover point, it safely interrupts or transmits power loads up to 250VAC and 6A. The ultra-narrow profile saves immense rail space within dense low-voltage switchboards, while the modular design enables lightning-fast cartridge replacements without breaking field connection wiring. Certified under VDE, cULus, cRUus, and Germanischer Lloyd marine standards, this German-engineered component withstands harsh continuous plant operational cycles. Industrio.ae supports regional panels builders, engineering contractors, and technical procurement teams across the UAE by ensuring immediate access to wholesale stock, system spares, and production-ready hardware. Our streamlined supply logistics dramatically cut down procurement lead times, allowing EPC groups to fulfill critical MRO conditions with total security.

Technical Specifications:

• Brand: Phoenix Contact

• Product Type: Slim Pluggable Interface Relay Assembly

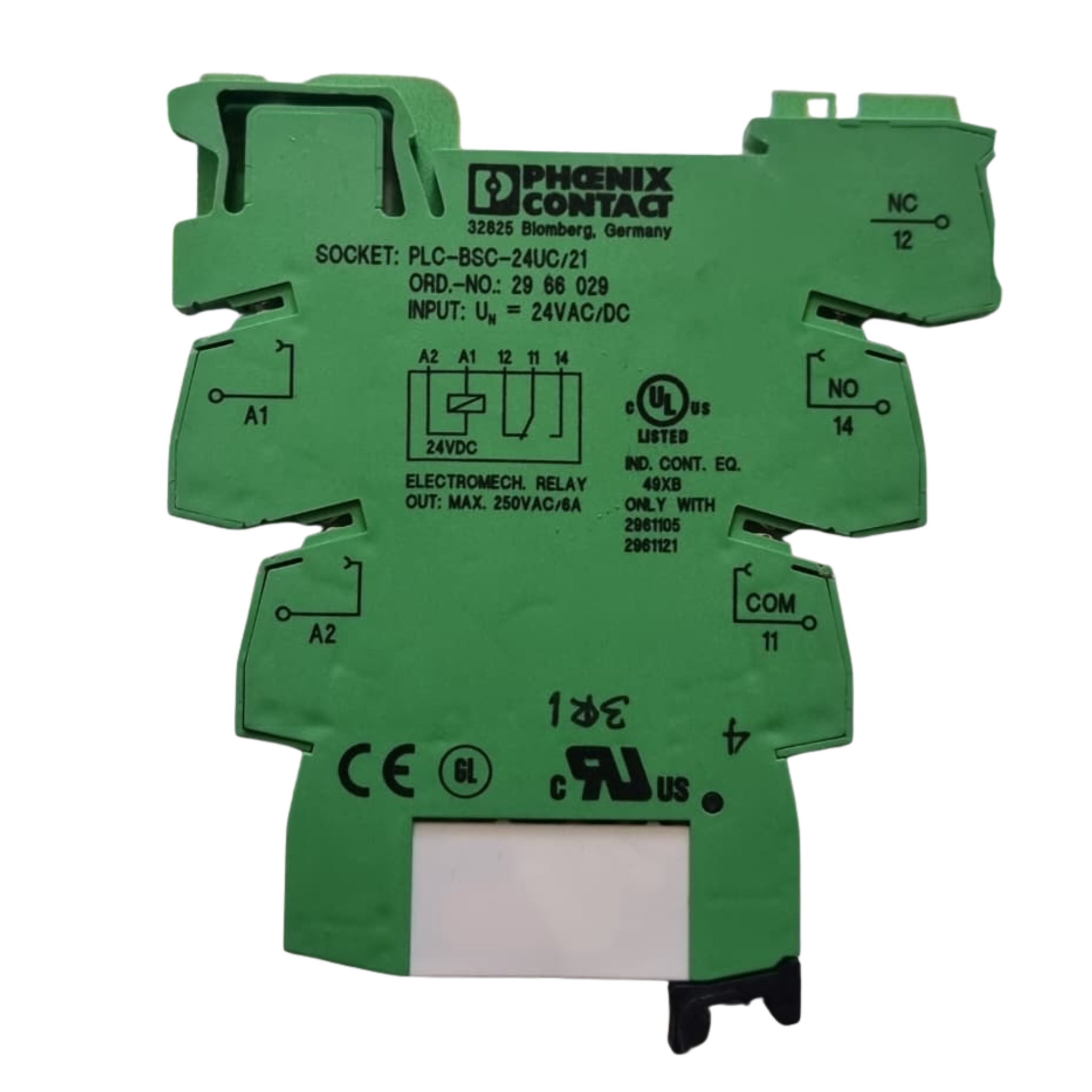

• Part Number (Base Socket): 2966029 / PLC-BSC-24UC/21

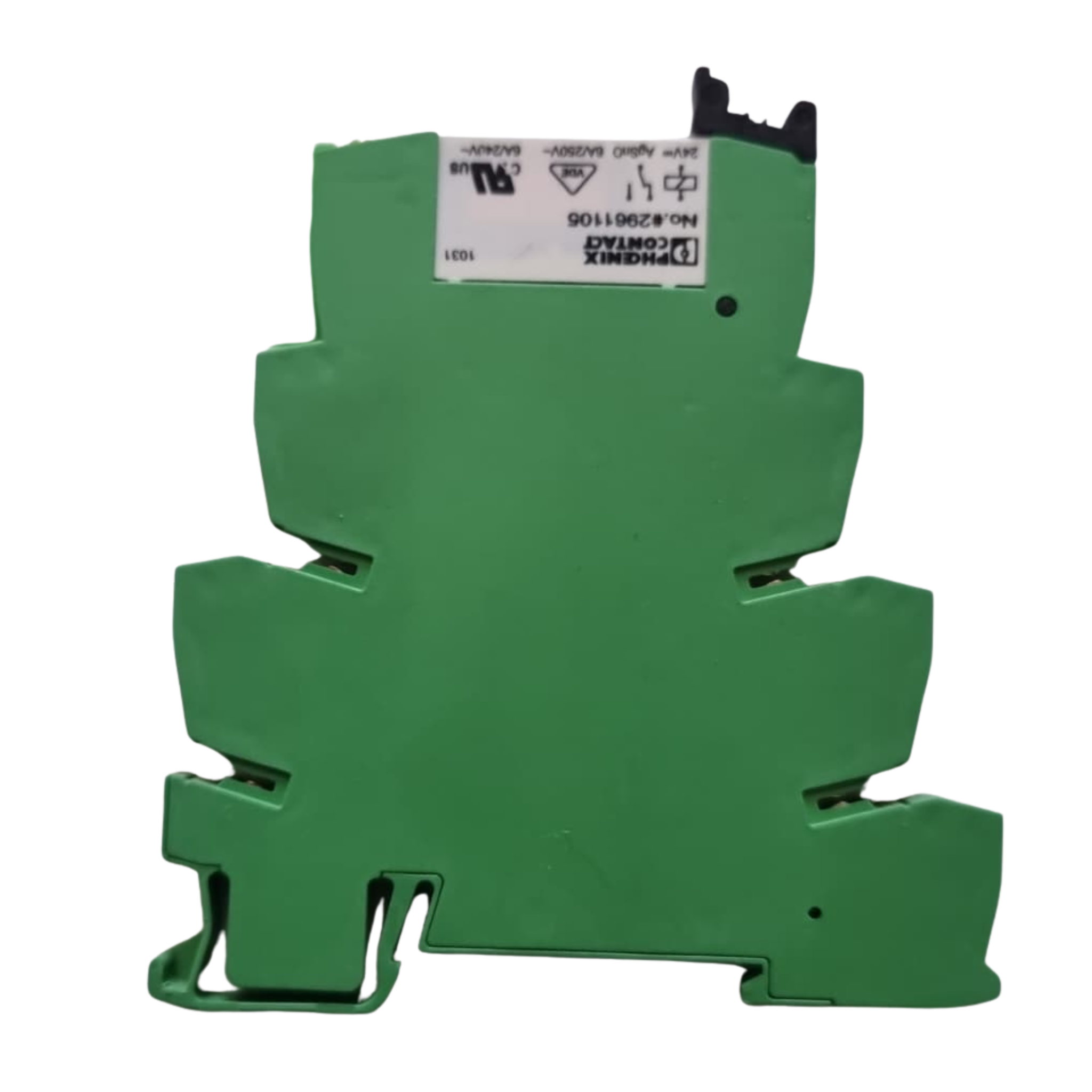

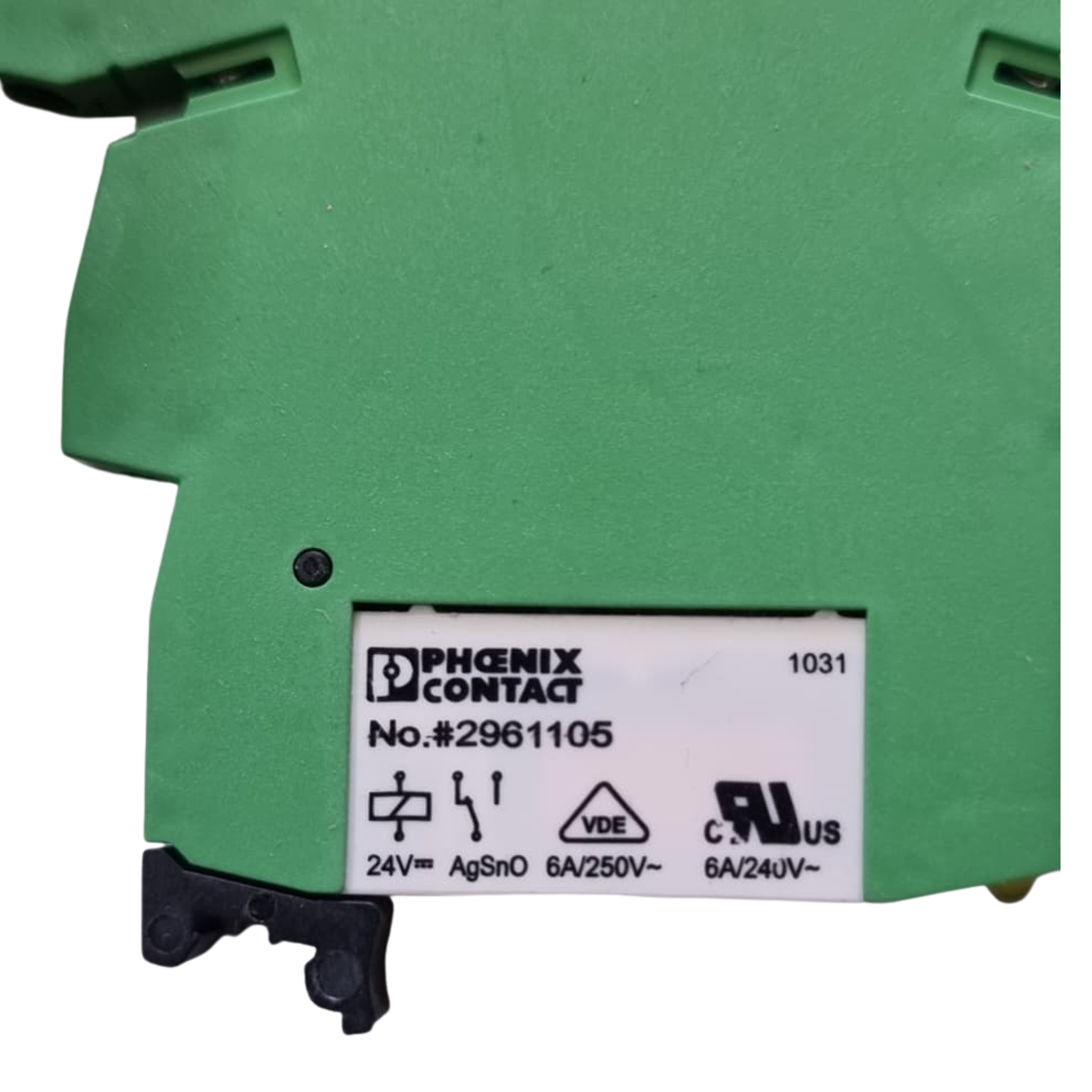

• Part Number (Relay Insert): 2961105 / REL-MR-24DC/21

• Industry Category: Industrial Automation & Control Systems

• Voltage Rating: 24VAC/DC Input / 250VAC Contacts Maximum

• Current Rating: 6A Continuous Contact Rating

• Power Rating: Available upon request

• Input Voltage: 24VAC/DC

• Output Voltage: Maximum 250VAC

• Mounting Type: 35mm DIN Rail Snap-on Mounting

• Standards / Compliance: CE, cULus Listed, cRUus, VDE, GL

• Other Confirmed Specs: 1 changeover contact loop, silver tin oxide contacts, terminal reference labeling (A1, A2, 11, 12, 14), block identifier code 1031, assembly manufactured in Germany (Blomberg)

Application:

This narrow coupling block is specifically engineered for mounting on standard DIN rails within industrial control cabinets, automation panels, and remote telemetry units. It acts as an isolation gateway protecting delicate PLC digital outputs from high-current field actions, providing plant operators, maintenance supervisors, and electrical panel manufacturers a dependable link for manufacturing lines, water treatment logic, and machinery controls.

As an established Phoenix Contact 2966029 supplier Dubai, we answer critical industrial network expansion requirements with rapid, certified component availability. Choosing an authorized regional distributor keeps your manufacturing integration workflows on schedule using verified wholesale stock pipelines. This elite coupling hardware aligns directly with UAE commercial procurement intent, generating consistent Dubai industrial supply relevance for both localized infrastructure and petrochemical plant updates.

Metafields:

• brand: Phoenix Contact

• part_number: 2966029 / 2961105

• product_type: Slim Pluggable Interface Relay Assembly

• industry_category: Industrial Automation & Control Systems

• voltage_rating: 24VAC/DC

• current_rating: 6A

• power_rating: Available upon request

• input_voltage: 24VAC/DC

• output_voltage: 250VAC

• mounting_type: 35mm DIN Rail

• standards: CE, cULus Listed, cRUus, VDE, GL

• condition: New Stock / Original Packaging

• stock_quantity_available: Available upon request

• target_market: UAE

• global_shipping: Available upon request

• Condition: Used

• Tested✅
