R.STAHL INTRINSPAK 9001/01-280-085-101 Safety Barrier

Description:

The R. Stahl 9001/01-280-085-101 safety barrier supplier demand is driven by oil & gas, petrochemical, and process automation procurement teams requiring certified intrinsic safety barriers for hazardous area instrumentation loops. Part of the Stahl Intrinspack series and manufactured in Germany, this single-channel zener safety barrier is rated at Uo 28V, Io 85mA, and Po 595mW, with a nominal supply of +24V DC at 64mA, providing reliable energy limitation for Ex i field devices in Zone 0/1/2 and Division 1/2 hazardous locations.

Carrying the highest level of international hazardous area certifications — ATEX (PTB 01 ATEX 2088 X), IECEx (PTB 09.0001X), FM Approved, UL Listed (50H7), CSA, EAC, and CCC — this barrier is specified for critical instrumentation applications in refineries, offshore platforms, chemical plants, and gas processing facilities. The blue terminal block (terminals 3–4) identifies the intrinsically safe field side, with the 160mA replaceable fuse providing circuit protection. Available in UAE through Industrio.ae from surplus and wholesale inventory for EPC contractors, instrumentation engineers, and MRO procurement teams. Datasheets and bulk pricing available upon request.

Technical Specifications:

• Brand: R. Stahl (Waldenburg, Germany)
• Product Type: Single-Channel Zener Intrinsic Safety Barrier — Ex i
• Part Number: 9001/01-280-085-101

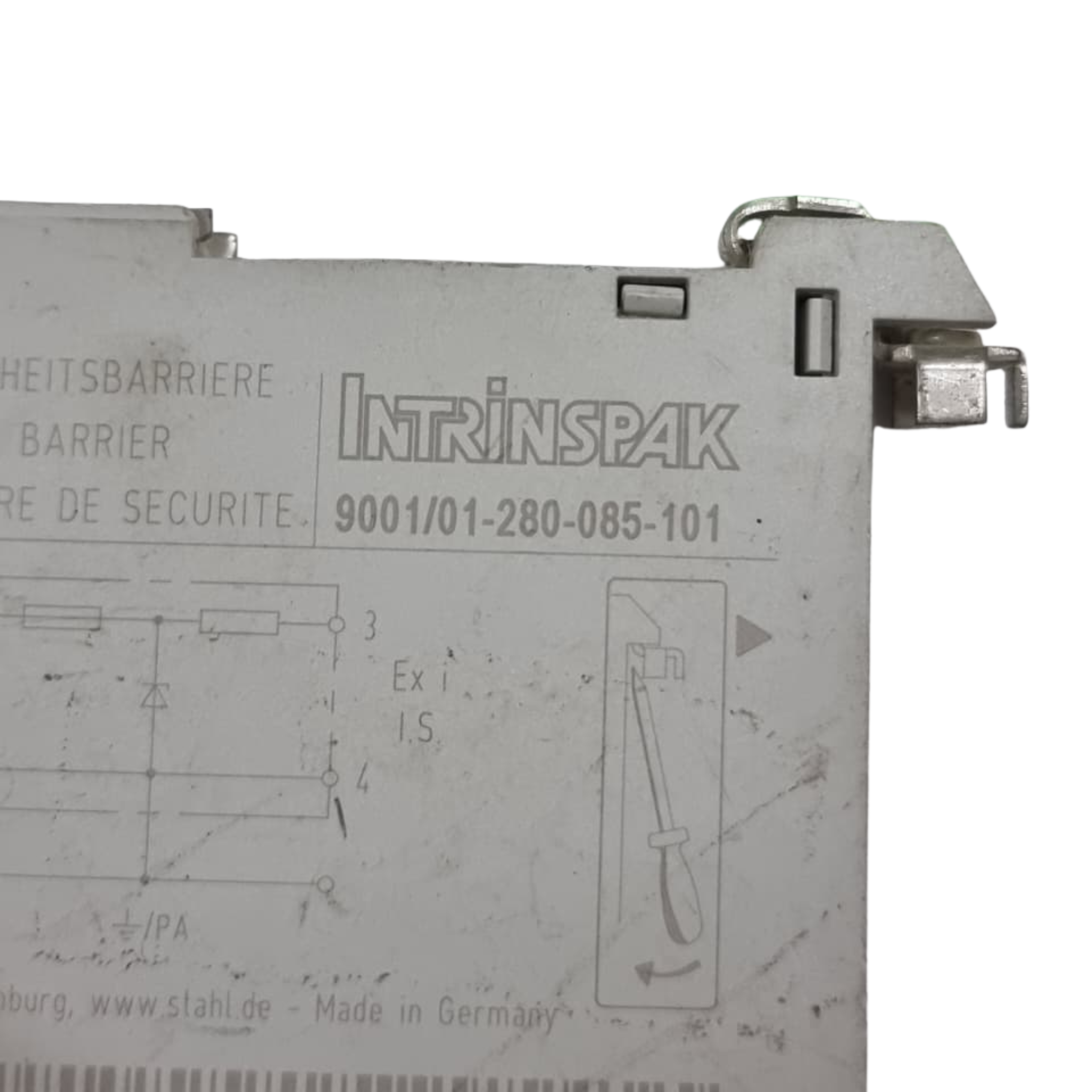

• Series: Intrinspack

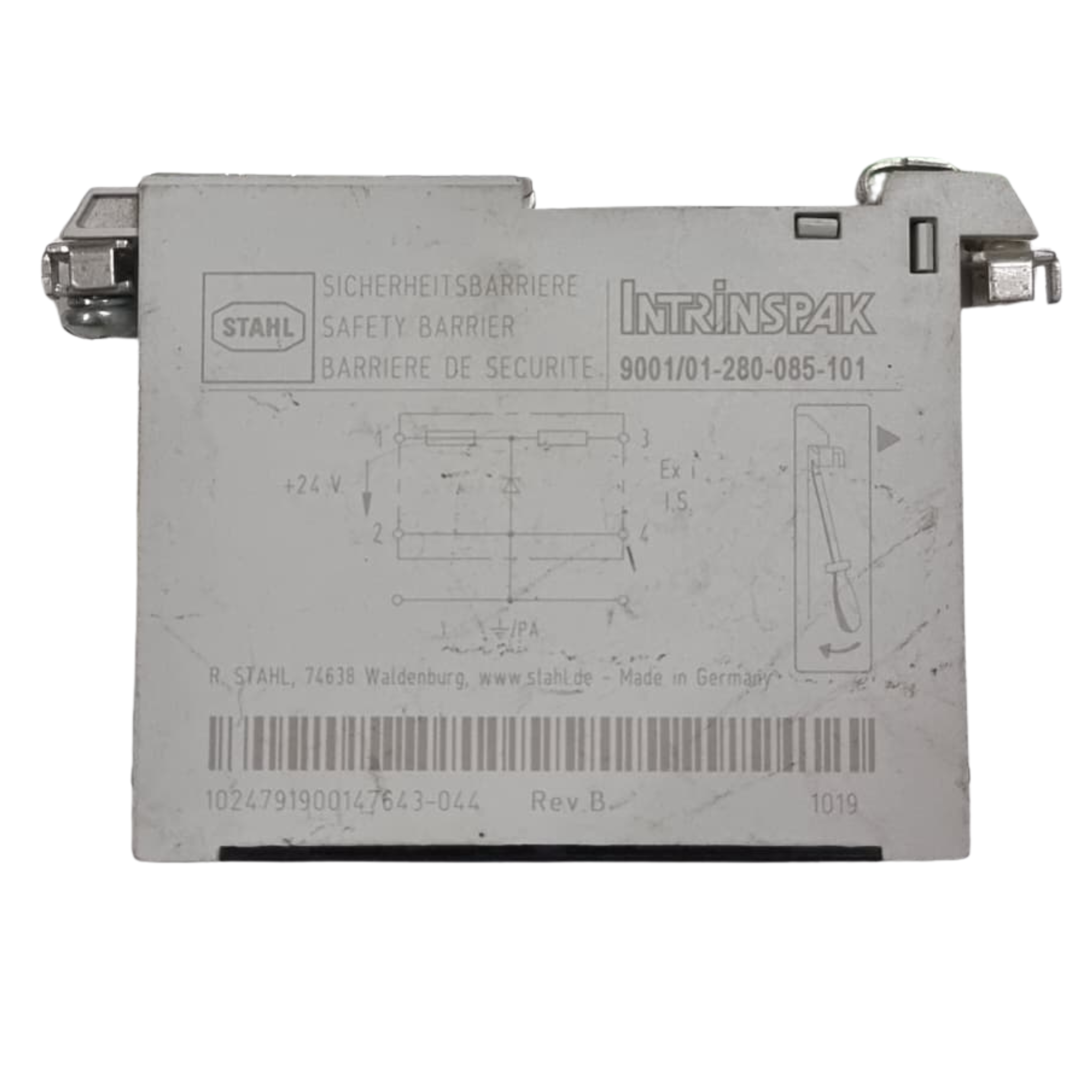

• Revision: Rev. B
• Industry Category: Hazardous Area Instrumentation / Intrinsic Safety / Oil & Gas / Process Automation
• Maximum Supply Voltage (Um): 253V
• Output Voltage (Uo): 28V
• Output Current (Io): 85mA
• Output Power (Po): 595mW
• Inductance (Lo/IIC): 2.4mH
• Capacitance (Co/IIC): 0.083µF
• Nominal Voltage (Un): +24V DC
• Nominal Current (In): 64mA
• Ambient Temperature (Ta): -20°C to +60°C

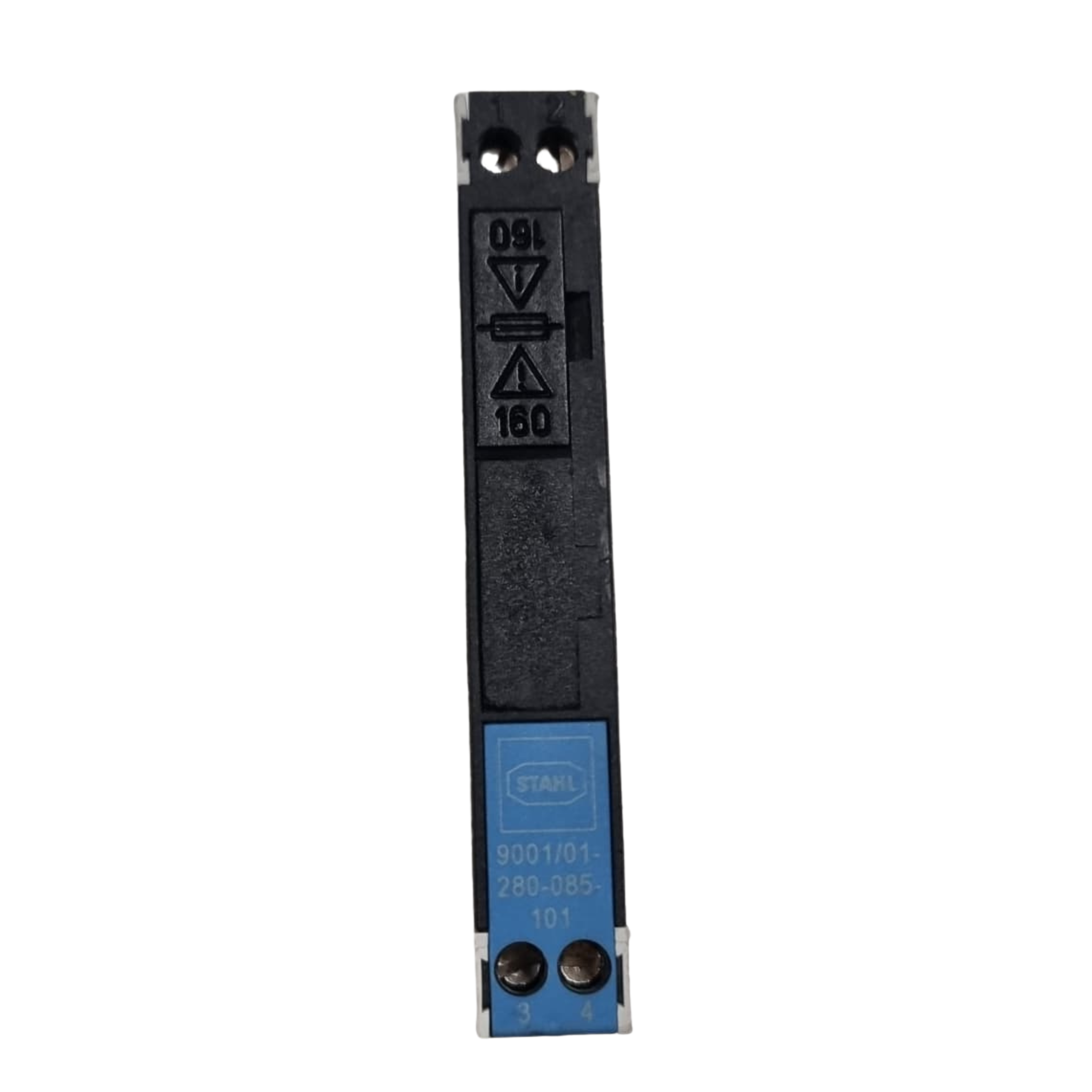

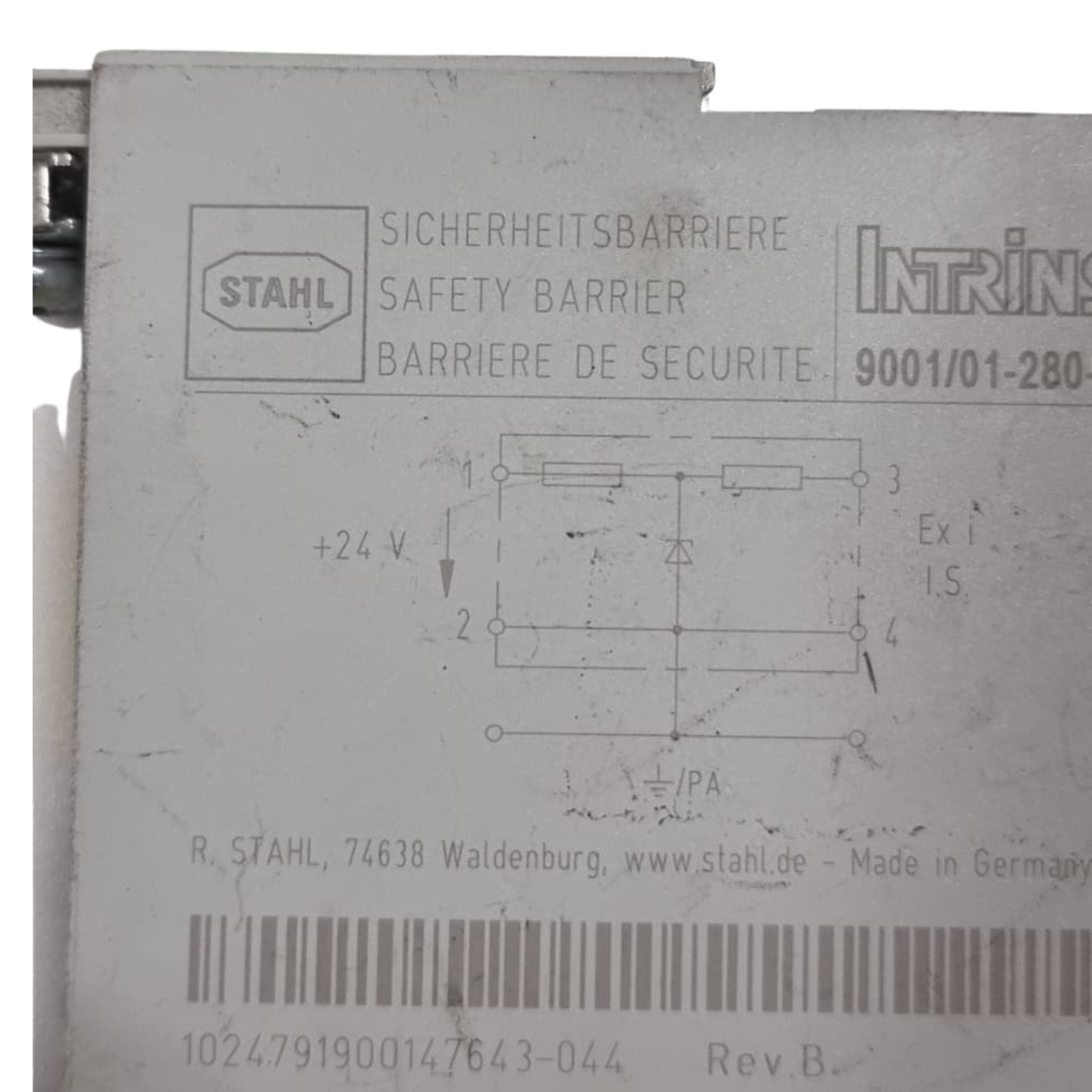

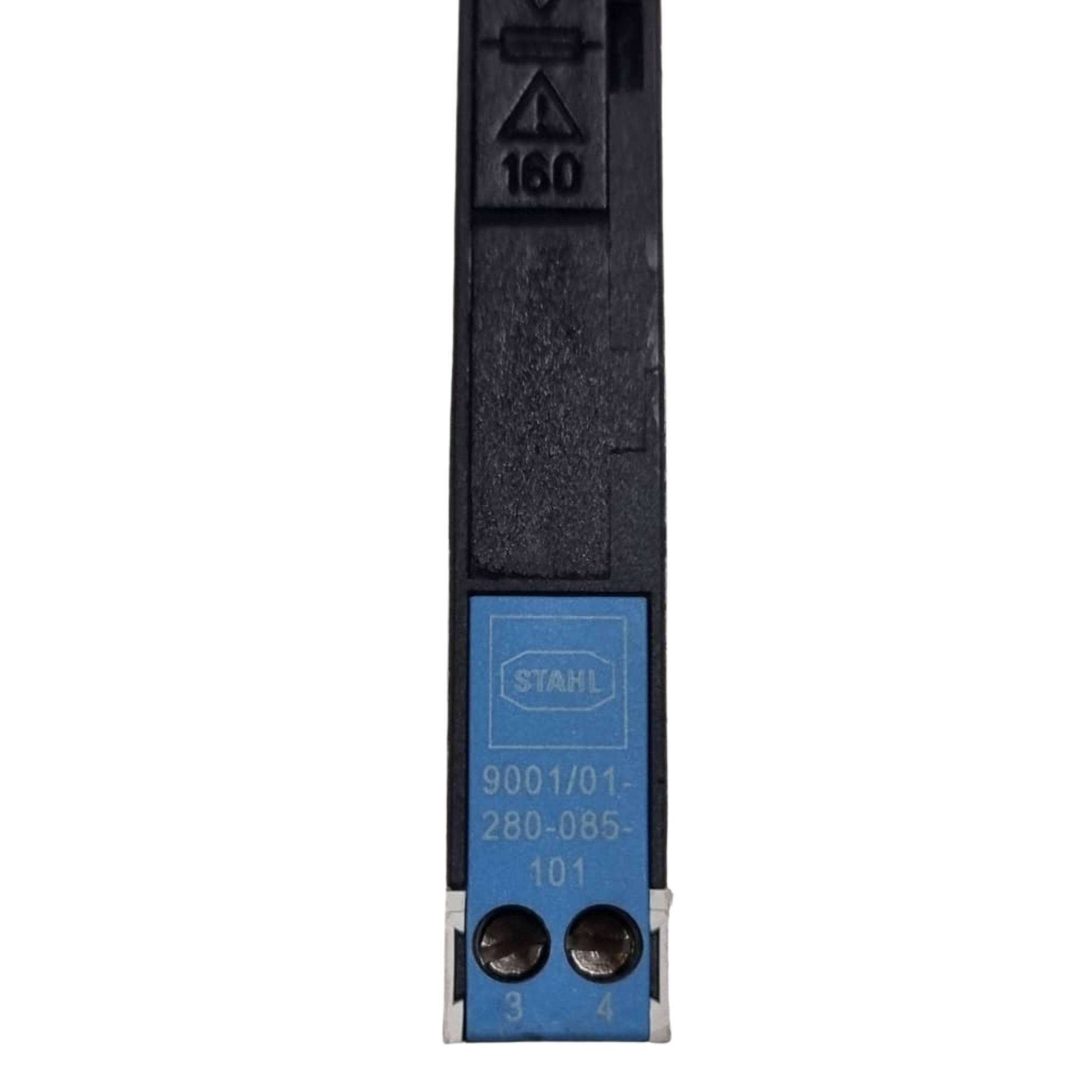

• IS Field Terminals: 3 & 4 (blue terminal block — Ex i side)
• Safe Area Terminals: 1 & 2 (supply side)
• Fuse Rating: 160mA (confirmed on end cap)
• Channels: Single channel
• Mounting Type: DIN Rail Mount — Intrinspack snap-fit

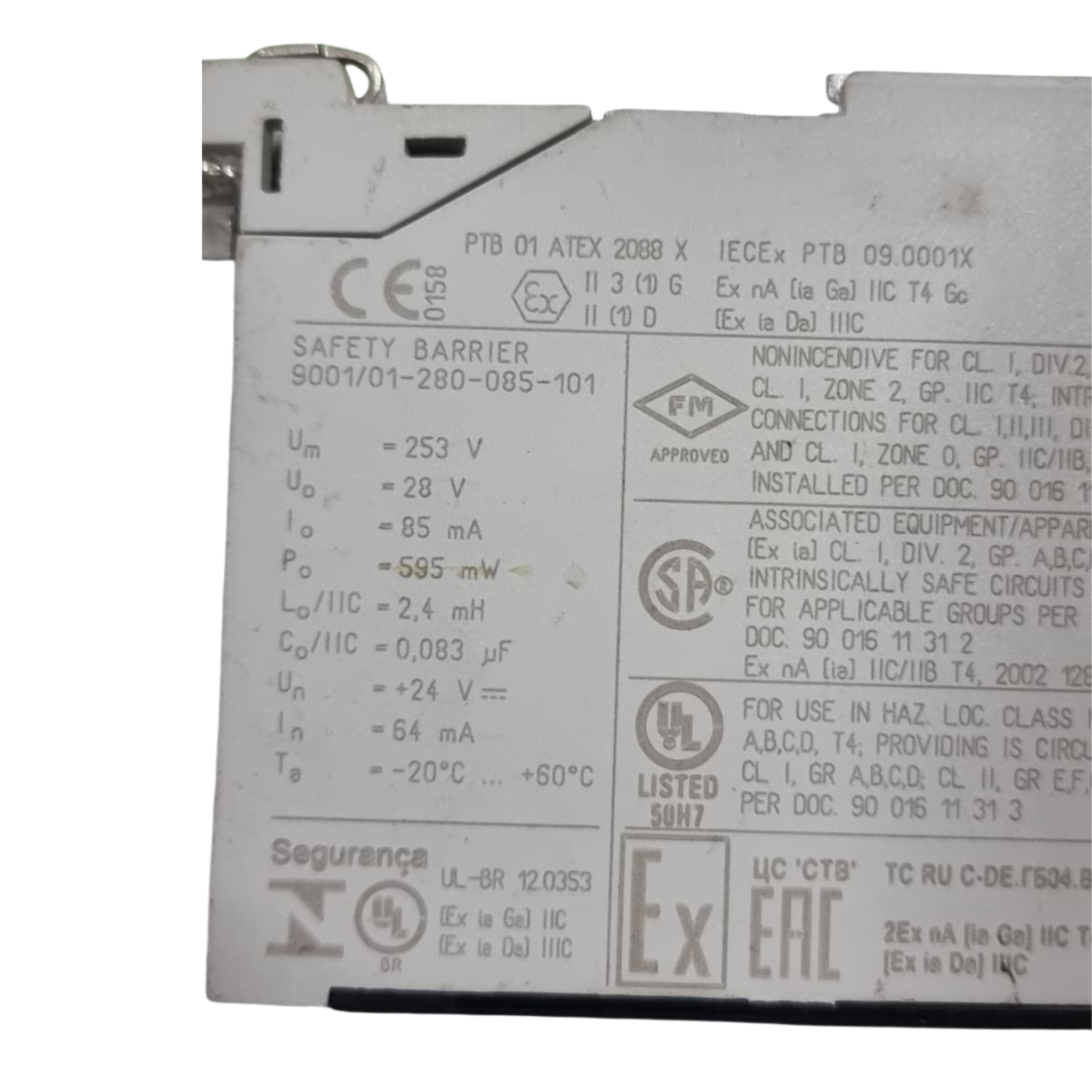

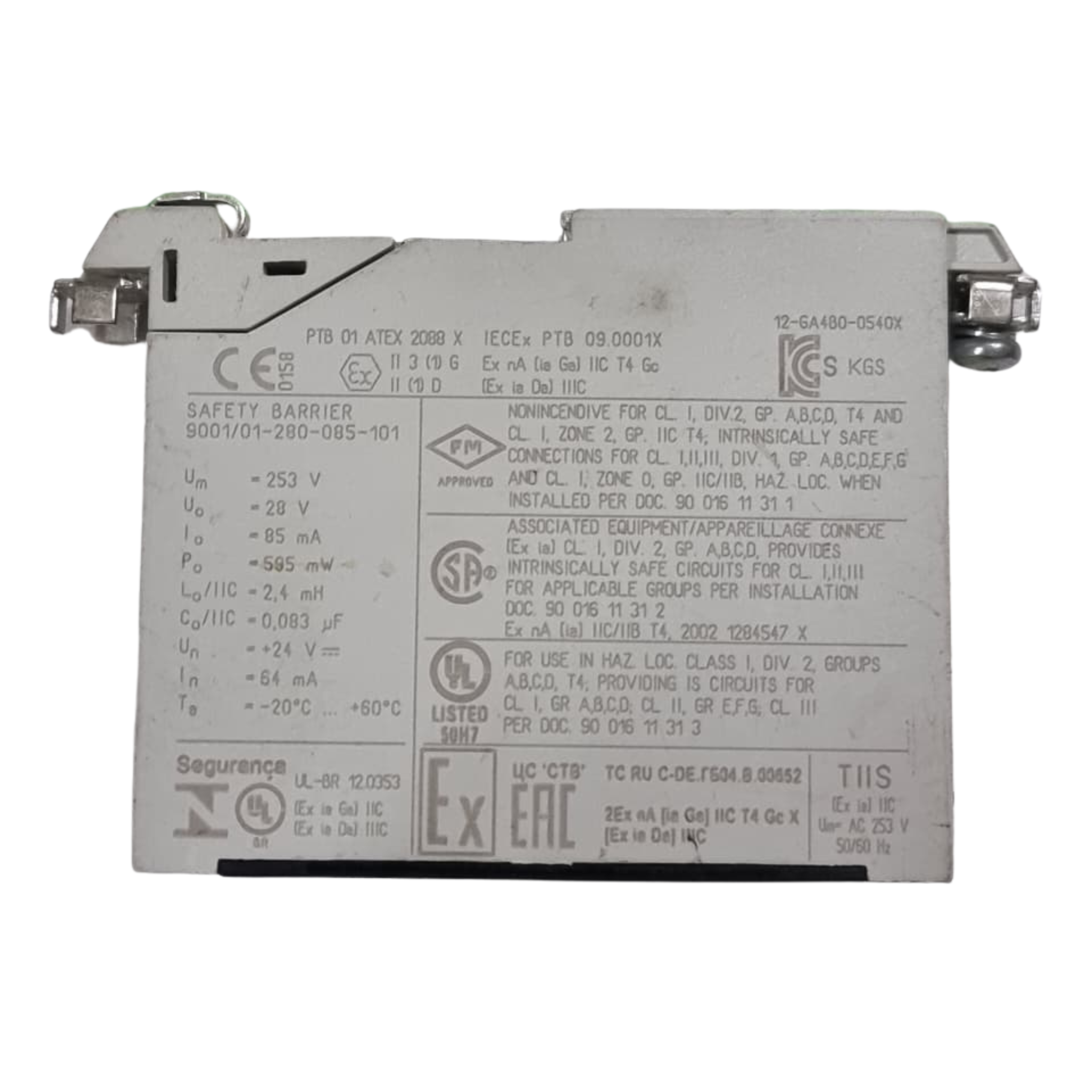

• ATEX Certification: PTB 01 ATEX 2088 X — II 3 (1) G / II (1) D
• IECEx Certification: PTB 09.0001X — Ex nA (ia Ga) IIC T4 Gc / (Ex ia Da) IIIC
• FM Approved: Yes — Cl. I Div. 2 / Zone 2 / Zone 0
• UL Listed: 50H7 — Cl. I, II, III / Div. 1 & 2
• CSA Certified: Yes — Ex (ia) / Intrinsically Safe Circuits
• Additional Certifications: EAC (TC RU) / CCC / INMETRO (UL-BR 12.0353)
• Standards / Compliance: CE / ATEX / IECEx / FM / UL / CSA / EAC / CCC
• Country of Origin: Germany

Application:

The R. Stahl 9001/01-280-085-101 intrinsic safety barrier is used in hazardous area instrumentation systems to limit the electrical energy supplied to field devices such as sensors, transmitters, and switches located in ATEX Zone 0/1/2, IECEx Zone 0/1/2, and NEC Class I Division 1/2 hazardous locations. By restricting voltage and current to intrinsically safe levels, the barrier prevents ignition of flammable gases, vapours, and dusts in oil & gas, petrochemical, pharmaceutical, and mining applications.

Its comprehensive global certification portfolio — covering ATEX, IECEx, FM, UL, CSA, EAC, and CCC — makes it directly applicable for international EPC projects, offshore platform installations, LNG facilities, and chemical process plants across multiple regulatory jurisdictions. Instrumentation engineers, hazardous area system integrators, and MRO procurement teams managing active IS loop maintenance across the UAE and Gulf region can source this Stahl safety barrier through Industrio.ae's wholesale and surplus industrial inventory.

R. Stahl Part No. 9001/01-280-085-101 Intrinspack safety barrier is available through Industrio.ae, a UAE-based distributor of hazardous area instrumentation and intrinsic safety components serving oil & gas EPC contractors, process automation integrators, and MRO procurement teams across Dubai and the wider GCC region. Buyers sourcing ATEX and IECEx certified intrinsic safety barriers in wholesale quantities or for active IS loop maintenance and project stock requirements can contact Industrio.ae directly for pricing and availability.

Metafields:

• brand: R. Stahl
• part_number: 9001/01-280-085-101
• series: Intrinspack
• product_type: Single-Channel Zener Intrinsic Safety Barrier — Ex i
• industry_category: Hazardous Area Instrumentation / Intrinsic Safety / Oil & Gas
• output_voltage: Uo 28V
• output_current: Io 85mA
• output_power: Po 595mW
• nominal_voltage: Un +24V DC
• nominal_current: In 64mA
• max_supply_voltage: Um 253V
• ambient_temperature: -20°C to +60°C
• fuse_rating: 160mA
• mounting_type: DIN Rail — Intrinspack
• atex_certification: PTB 01 ATEX 2088 X
• iecex_certification: PTB 09.0001X
• standards: CE / ATEX / IECEx / FM / UL Listed 50H7 / CSA / EAC / CCC
• condition: Available upon request
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used

Tested✅ Scratches On Product
