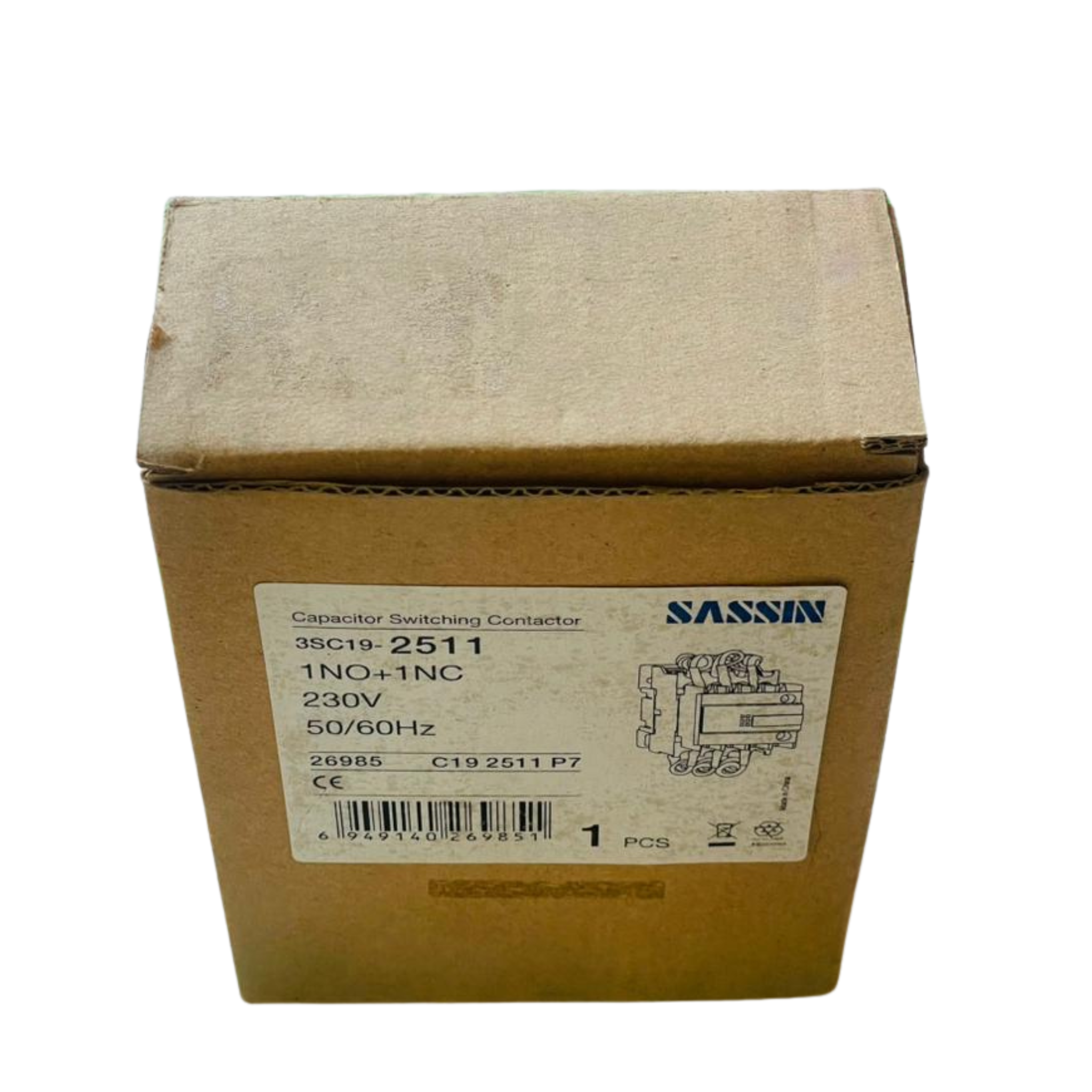

Sassin 3SC19-2511 Capacitor Switching Contactor 230V 25A 3-Pole

Description:

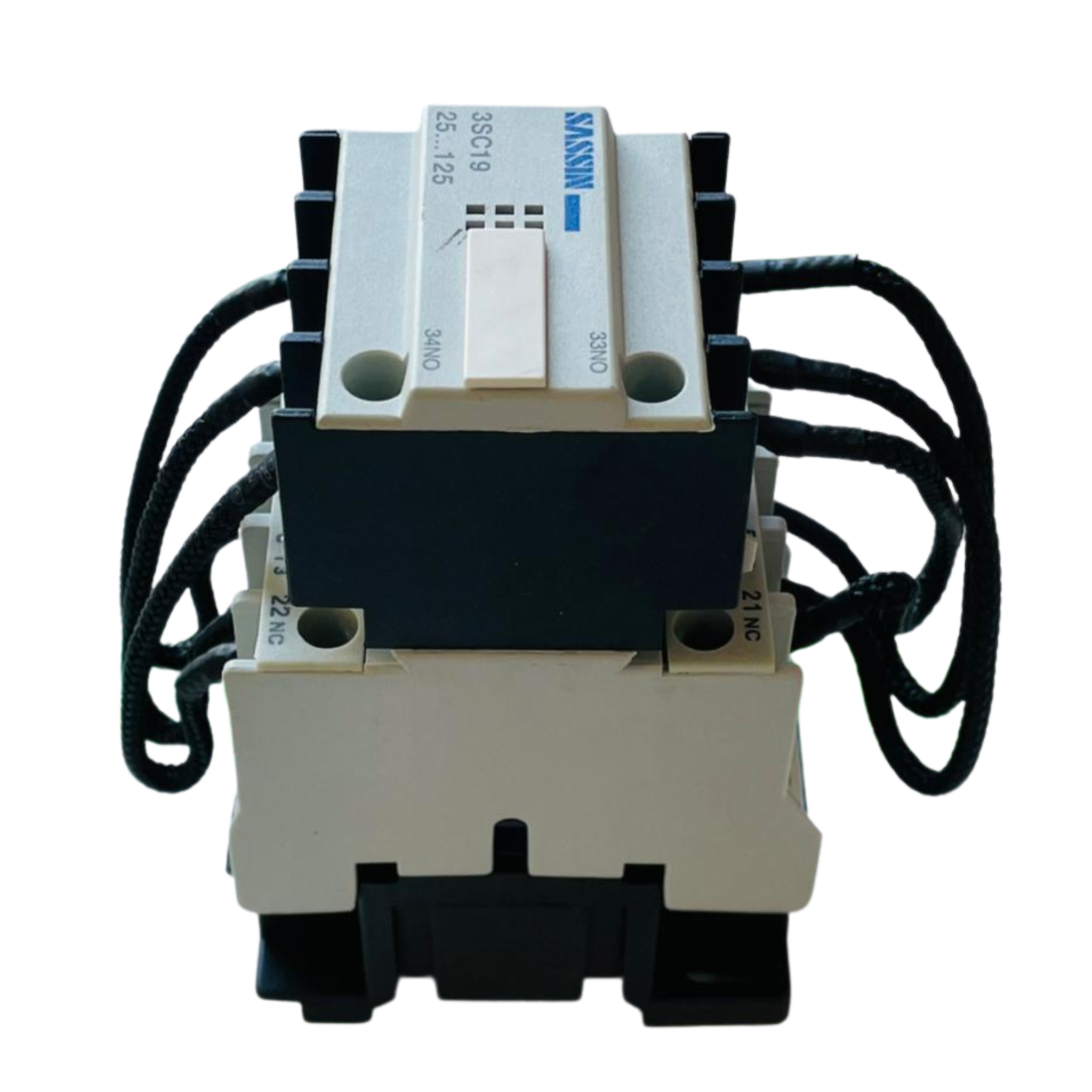

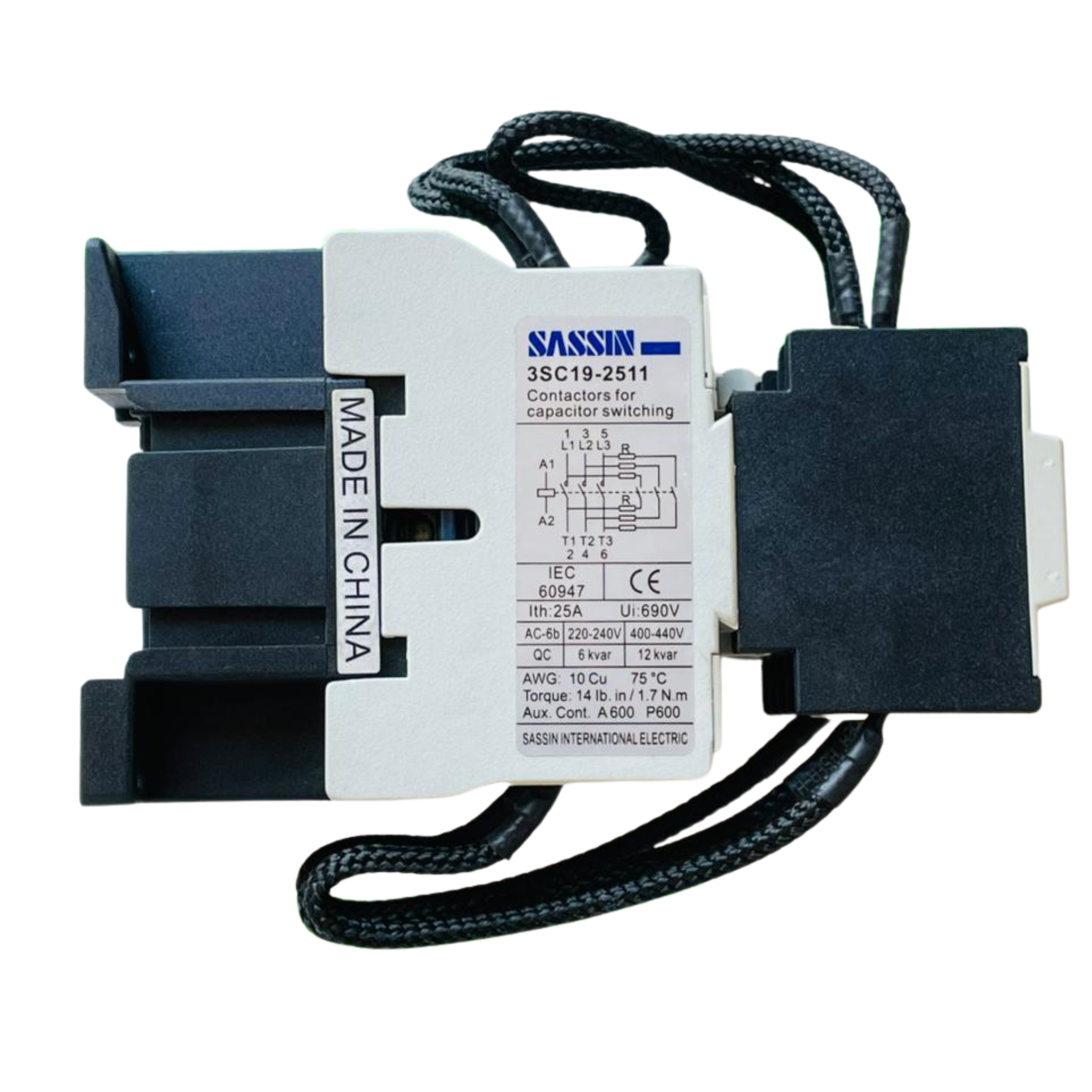

 Procuring the Sassin 3SC19-2511 capacitor switching contactor ensures high-performance transient mitigation and system safety within automated power factor correction (PFC) applications. Engineered specifically for AC-6b utilization categories, this robust contactor effectively handles the severe inrush currents associated with switching low-loss capacitive blocks. It features specialized top-mounted leading-wire blocks with integrated damping resistors that pre-charge the capacitor bank, safely limiting harmful peak current surges before the main power contacts close. Operating on a stable 230V AC coil frequency at 50/60Hz, it provides reactive power switching capacities of up to 12 kvar at 400-440V and 6 kvar at 220-240V. Built with a built-in auxiliary contact setup of 1NO + 1NC, this switchgear unit allows seamless integration with panel controllers, diagnostic loops, and status telemetry. As a trusted supplier of electrical distribution and MRO components in the UAE, Industrio.ae offers immediate local access to genuine wholesale stock to minimize your project lead times and enhance grid efficiency.

Technical Specifications:

• Brand: SASSIN

• Product Type: Capacitor Switching Contactor

• Part Number / Model: 3SC19-2511 (Code: 26985)

• Industry Category: Electrical Switchgear & Power Quality Components

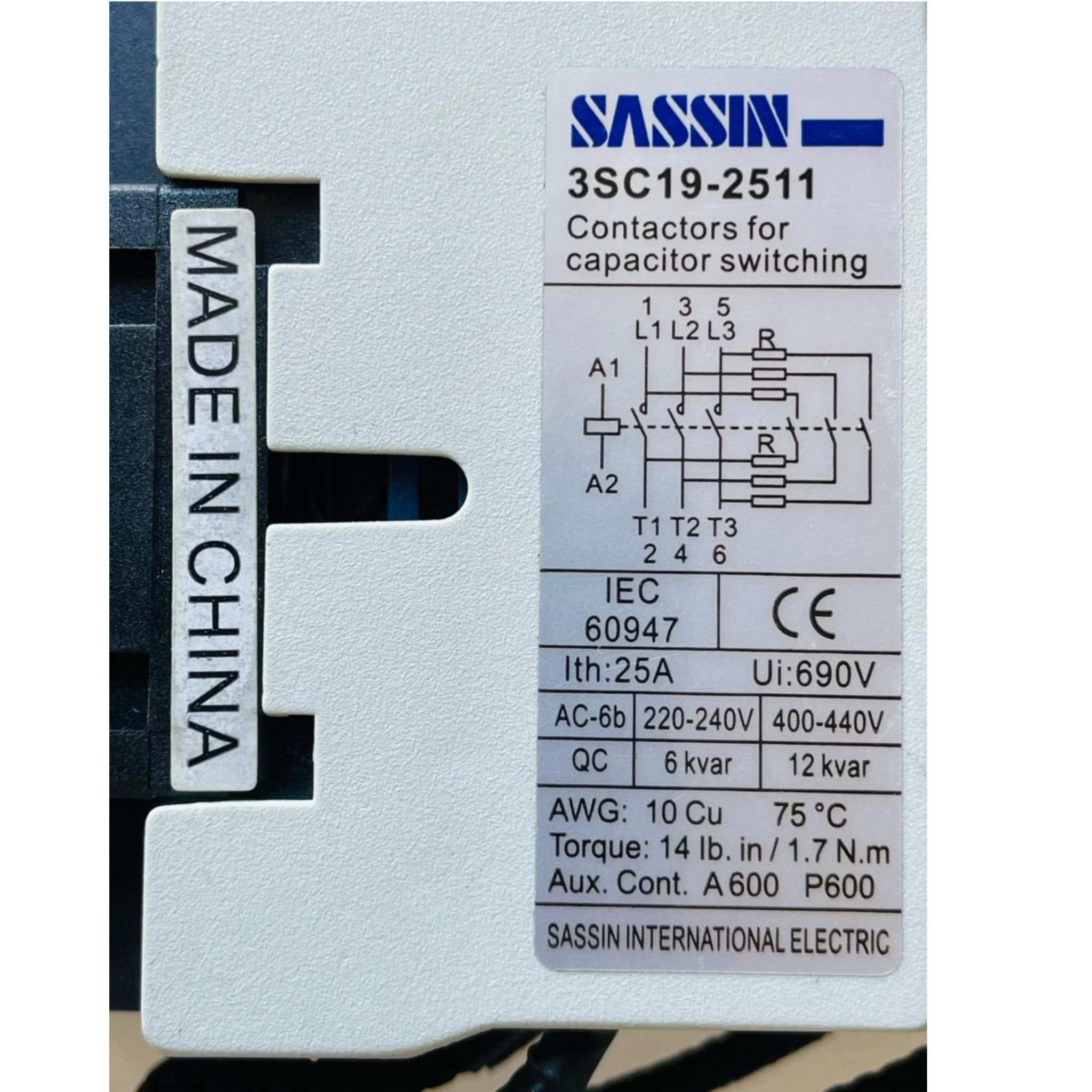

• Utilization Category: AC-6b (Capacitive Loads)

• Conventional Thermal Current (Ith): 25A

• Rated Insulation Voltage (Ui): 690V

• Coil Voltage: 230V AC (50/60Hz)

• Reactive Power Rating (Qc): 12 kvar @ 400-440V AC / 6 kvar @ 220-240V AC

• Auxiliary Contacts: 1 NO + 1 NC (A600 / P600 rated)

• Terminal Torque: 1.7 N.m / 14 lb.in (AWG 10 Copper, 75°C)

• Standards / Compliance: IEC 60947, CE

• Other Confirmed Specs: Integrated surge-limiting pre-charge resistor wires, compact DIN rail/panel mount execution, Made in China

Application:

Specially configured for installation inside automatic power factor correction (APFC) panels, centralized capacitor banks, and low-voltage industrial distribution boards. It safeguards system networks by switching capacitor steps smoothly, controlling reactive energy loads, reducing total harmonic distortions, and lowering utility demands in high-demand commercial and manufacturing environments.

Engineered to withstand cyclic switching thermal stresses, this authentic Sassin 3SC19 electrical solution fulfills stringent technical B2B quality standards. For local panel integrators, electromechanical contractors, and facility maintenance managers seeking a reliable regional supplier, authorized distributor availability, or cost-effective wholesale stock, our supply portal provides streamlined B2B procurement across all Emirates. Partnering with a Dubai-based industrial asset specialist provides your enterprise with premium, certified switchgear units quickly and reliably.

Metafields:

• brand: SASSIN

• part_number: 3SC19-2511

• product_type: Capacitor Switching Contactor

• industry_category: Electrical Switchgear & Power Quality Components

• voltage_rating: 400-440V AC

• current_rating: 25A

• power_rating: 12 kvar

• input_voltage: 230V AC (Coil)

• output_voltage: Available upon request

• mounting_type: DIN Rail / Screw Mounting

• standards: IEC 60947, CE

• condition: Surplus Stock

• stock_quantity_available: Available upon request

• target_market: UAE

• global_shipping: Available upon request

• Condition: New Open Box
