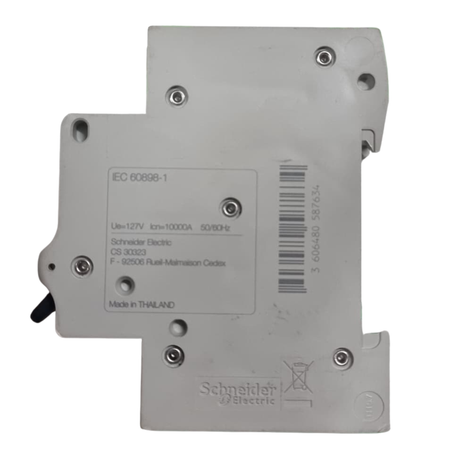

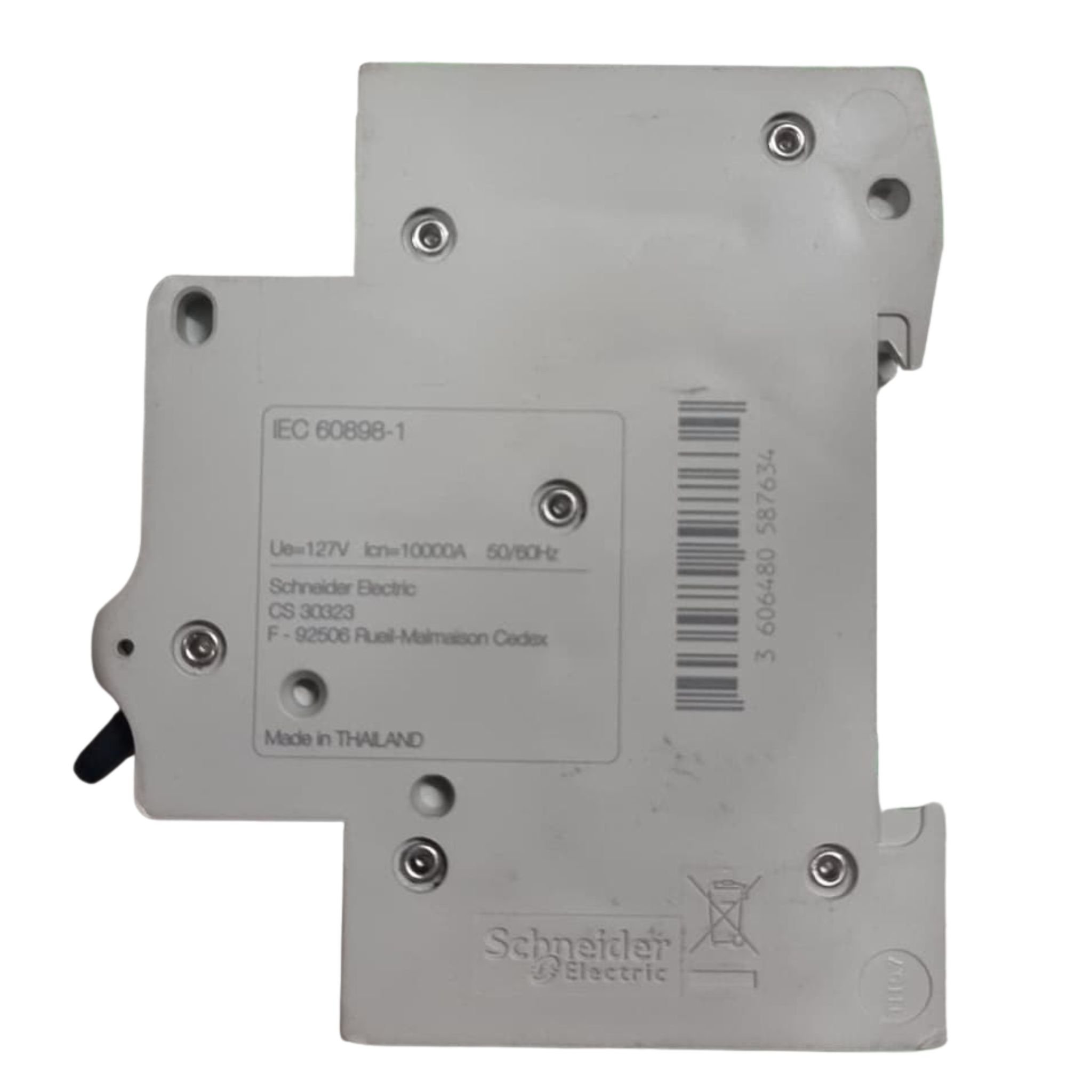

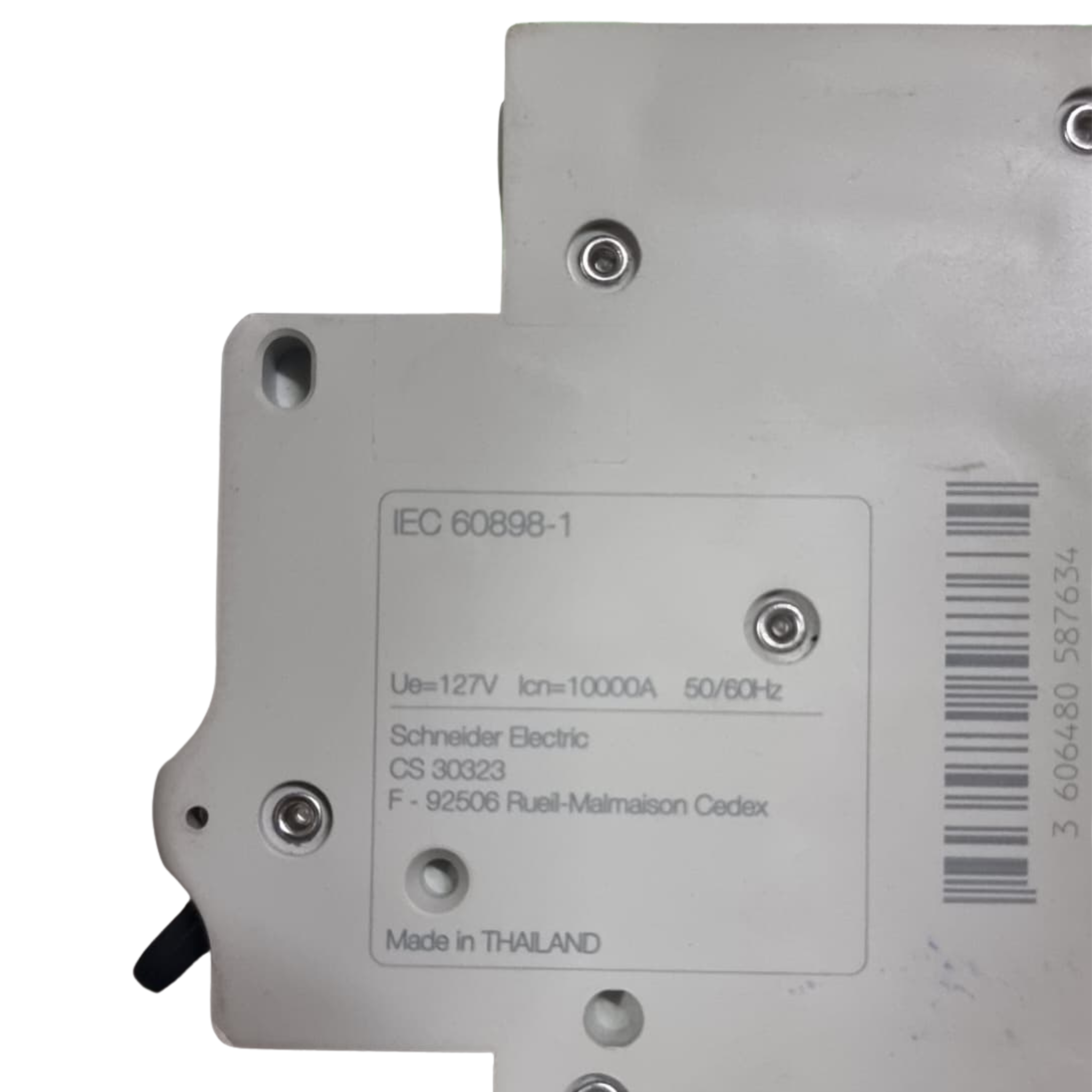

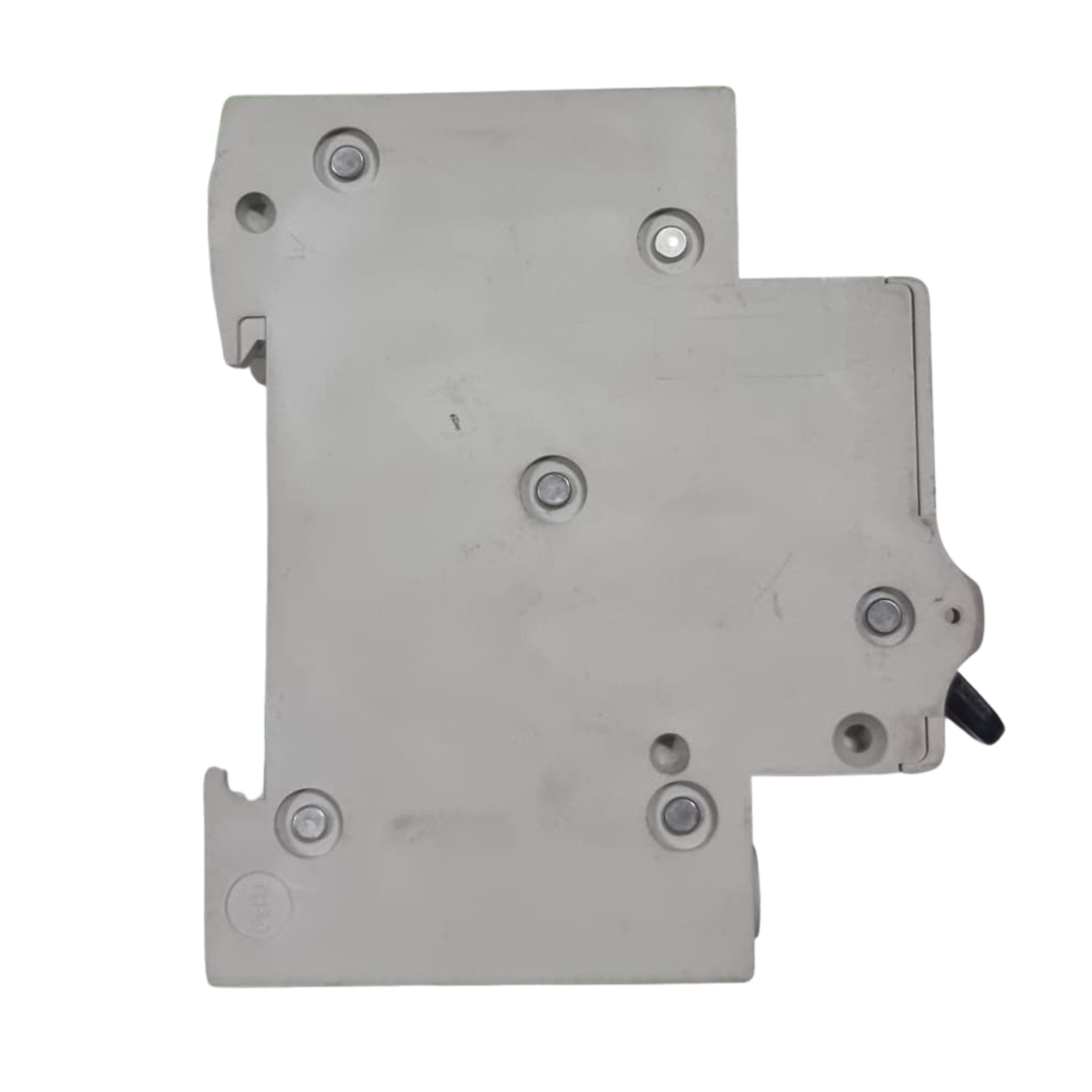

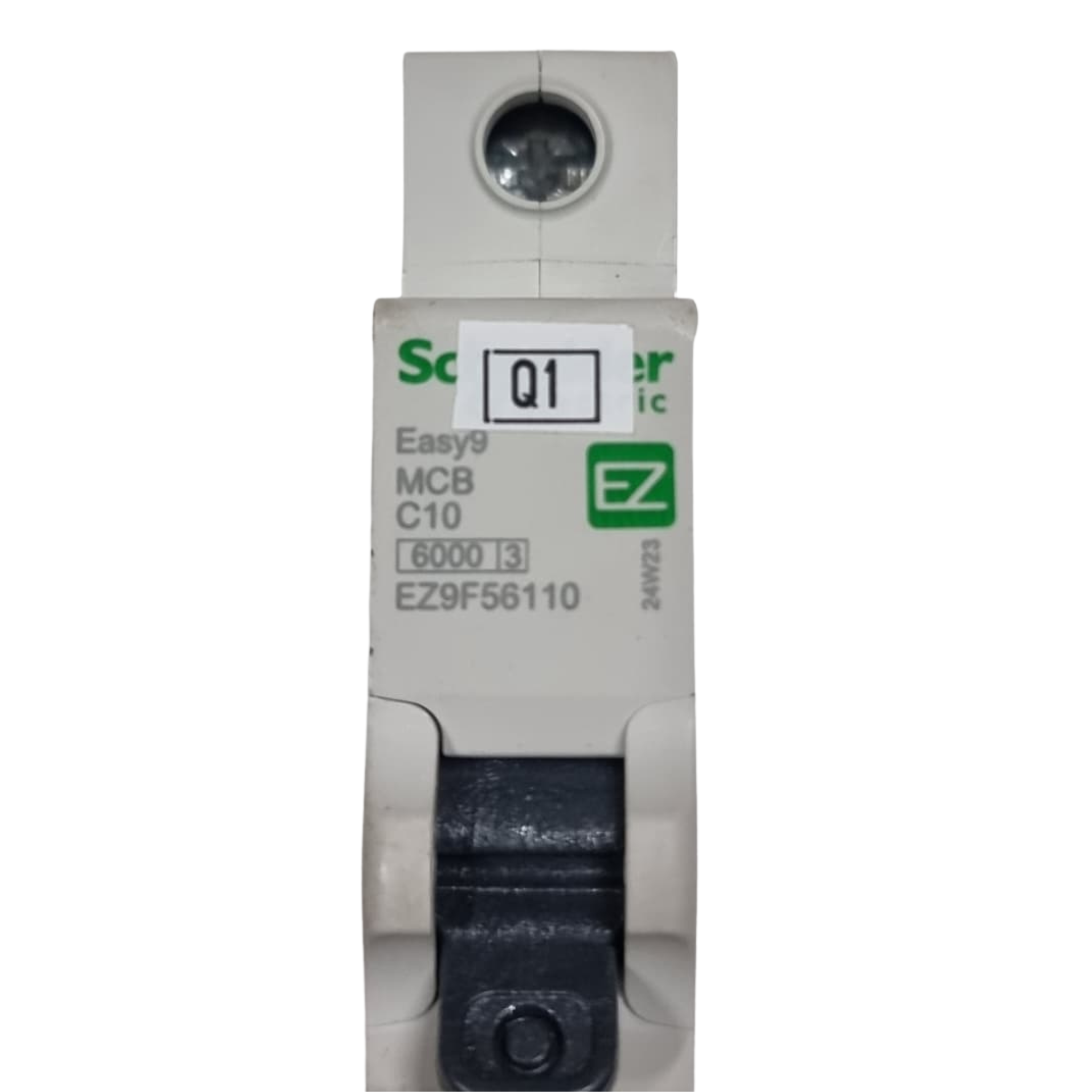

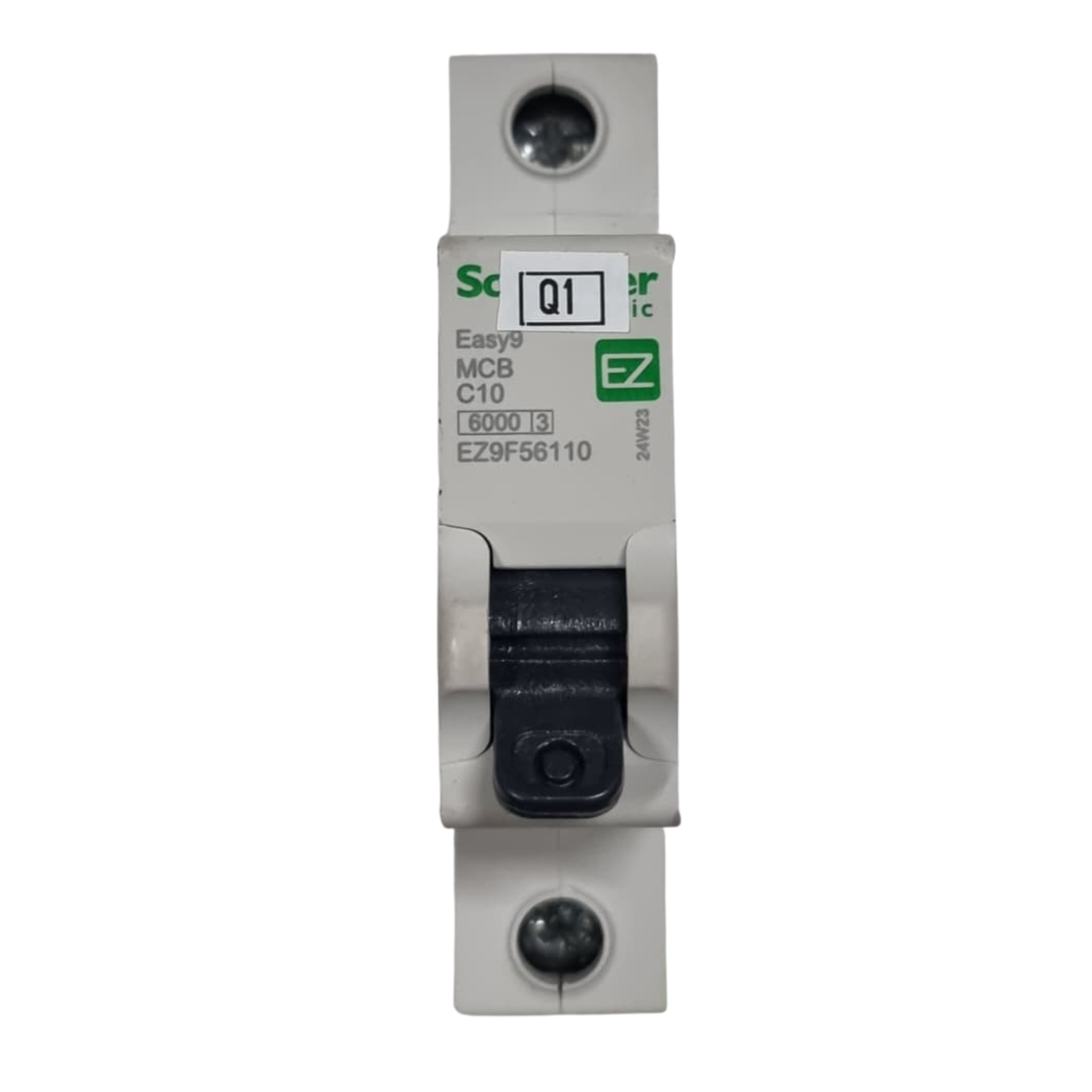

Schneider Electric EZ9F56110 Circuit Breaker 10A 1-Pole 127V

Description:

The Schneider Electric EZ9F56110 is a single-pole miniature circuit breaker from the Easy9 range, rated at 10A with a Type C trip curve and a breaking capacity of 10kA, compliant with IEC 60898-1. Designed for residential, commercial, and light industrial distribution board applications, it provides reliable overcurrent and short-circuit protection for general-purpose final circuits where moderate inrush currents must be accommodated without nuisance tripping.

The Easy9 series is a well-established Schneider Electric product range widely specified by panel builders and electrical contractors for cost-effective, space-efficient circuit protection in standard DIN rail assemblies. The EZ9F56110 is rated at 127V AC with 50/60Hz compatibility, supporting deployment across a broad range of electrical system configurations.

Industrio.ae holds surplus and wholesale stock of Schneider Electric protective devices, providing electrical procurement teams, panel builders, and MRO buyers across the UAE with reliable access to certified circuit breakers for both project and maintenance sourcing requirements.

Technical Specifications:

• Brand: Schneider Electric
• Product Type: Single-Pole Miniature Circuit Breaker (MCB)
• Part Number: EZ9F56110
• Product Range: Easy9 (EZ series)
• Industry Category: Electrical Protection / Circuit Breakers / Building & Industrial Distribution
• Rated Current (In): 10A
• Trip Curve: C
• Number of Poles: 1
• Rated Voltage (Ue): 127V AC
• Breaking Capacity (Icn): 10,000A (10kA)
• Breaking Capacity Class: 6000
• Frequency: 50/60Hz
• Standard: IEC 60898-1
• Internal Reference: CS 30323
• Mounting Type: 35mm DIN rail
• Origin: Made in Thailand
• Other Confirmed Specs: Available upon request

Application:

The Schneider Electric EZ9F56110 Easy9 MCB is used in residential distribution boards, commercial electrical panels, and light industrial control cabinets for the protection of final circuits against overcurrent and short-circuit faults at 10A. Its Type C characteristic is suited for circuits feeding loads with moderate inrush currents such as lighting, small motors, and control equipment. The 10kA breaking capacity provides adequate fault current interruption for standard distribution applications in building services and industrial installations. This MCB is commonly procured in single units and bulk quantities by panel builders, electrical contractors, and MRO procurement teams for both new panel builds and replacement in existing Schneider Easy9 installations across the UAE and Gulf region.

Electrical procurement teams and panel builders sourcing the Schneider Electric EZ9F56110 Easy9 single-pole MCB 10A Curve C will find verified surplus and wholesale stock available through Industrio.ae, a UAE-based electrical and industrial components supplier serving distributors, EPC contractors, and MRO buyers across Dubai and the broader Gulf region. As a stocking source for Schneider Electric Easy9 and EZ series circuit breakers in the UAE, Industrio.ae supports both single-unit and volume procurement of IEC 60898-1 certified protective devices with competitive availability.

Metafields:

• brand: Schneider Electric
• part_number: EZ9F56110
• product_range: Easy9 (EZ series)
• product_type: Single-Pole Miniature Circuit Breaker (MCB)
• industry_category: Electrical Protection / Circuit Breakers / Building & Industrial Distribution
• rated_current: 10A
• trip_curve: C
• number_of_poles: 1
• rated_voltage: 127V AC
• breaking_capacity_icn: 10kA
• breaking_capacity_class: 6000
• frequency: 50/60Hz
• standard: IEC 60898-1
• internal_reference: CS 30323
• mounting_type: 35mm DIN rail
• origin: Made in Thailand
• condition: Used / Surplus Stock
• stock_quantity_available: Available upon request
• target_market: UAE
• global_shipping: Available upon request

Condition: Used

Tested✅
